一行注解代替百行HTTP调用代码，Spring Cloud Feign如何让微服务通信变得像调用本地方法一样简单？
在微服务架构中，服务间通信是最基础也是最复杂的挑战之一。传统的HTTP客户端调用方式需要手动构建请求、处理序列化、管理连接池、处理异常等重复工作，而Spring Cloud Feign通过声明式的方式，将这一切复杂性封装起来。本文将通过最新技术视角，深入剖析Feign在微服务架构中的应用。
01 Feign的核心价值：声明式服务调用
Feign最初由Netflix开发，后成为Spring Cloud生态的核心组件。它的核心思想很简单：用接口和注解定义HTTP API，让服务调用像调用本地方法一样自然。
传统HTTP调用与Feign声明式调用的对比：
// 传统方式：RestTemplate
String result = restTemplate.exchange(
"http://user-service/api/users/" + userId,
HttpMethod.GET,
null,
String.class
).getBody();
// Feign方式：声明式接口
@FeignClient(name = "user-service")
public interface UserServiceClient {
@GetMapping("/api/users/{id}")
String getUserById(@PathVariable("id") String userId);
}
// 调用
String result = userServiceClient.getUserById(userId);
Feign不仅仅是语法糖，它集成了一系列微服务治理能力：服务发现、负载均衡、熔断降级等。在最新的Spring Cloud 2023.x版本中，Feign进一步增强了对云原生环境的适配能力。
02 快速开始：五分钟搭建Feign客户端
创建一个基本的Feign客户端只需要几个简单步骤：
第一步：添加依赖
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
<version>4.1.0</version>
</dependency>
第二步：启用Feign支持
@SpringBootApplication
@EnableFeignClients
public class OrderServiceApplication {
public static void main(String[] args) {
SpringApplication.run(OrderServiceApplication.class, args);
}
}
第三步：定义Feign客户端接口
@FeignClient(name = "product-service")
public interface ProductServiceClient {
@GetMapping("/api/products/{id}")
ProductDTO getProduct(@PathVariable("id") Long productId);
@PostMapping("/api/products")
ProductDTO createProduct(@RequestBody ProductCreateRequest request);
@PutMapping("/api/products/{id}/stock")
void updateStock(@PathVariable("id") Long productId,
@RequestParam("quantity") Integer quantity);
}
第四步：注入并使用
@Service
public class OrderService {
private final ProductServiceClient productServiceClient;
public OrderService(ProductServiceClient productServiceClient) {
this.productServiceClient = productServiceClient;
}
public OrderDTO createOrder(OrderCreateRequest request) {
// 像调用本地方法一样调用远程服务
ProductDTO product = productServiceClient.getProduct(request.getProductId());
// 检查库存
if (product.getStock() < request.getQuantity()) {
throw new InsufficientStockException("库存不足");
}
// 更新库存
productServiceClient.updateStock(request.getProductId(),
-request.getQuantity());
// 创建订单逻辑...
return orderDTO;
}
}
03 高级特性与配置
服务发现集成
Feign与Spring Cloud服务发现（如Nacos、Eureka、Consul）无缝集成：
@FeignClient(name = "user-service",
configuration = FeignConfig.class)
public interface UserServiceClient {
// 接口定义
}
@Configuration
public class FeignConfig {
@Bean
public Contract feignContract() {
return new SpringMvcContract();
}
// 与Nacos服务发现集成
@Bean
@ConditionalOnClass(name = "com.alibaba.cloud.nacos.NacosDiscoveryClient")
public DiscoveryClient nacosDiscoveryClient() {
// Nacos特定配置
return new NacosDiscoveryClient();
}
}
在 application.yml 中的配置：
spring:
cloud:
nacos:
discovery:
server-addr: ${NACOS_HOST:localhost}:8848
namespace: ${NAMESPACE:dev}
feign:
client:
config:
default:
connectTimeout: 5000
readTimeout: 10000
loggerLevel: full
user-service:
connectTimeout: 3000
readTimeout: 5000
负载均衡策略
Feign默认集成Ribbon（或Spring Cloud LoadBalancer）实现客户端负载均衡：
@Configuration
public class LoadBalancerConfiguration {
// 自定义负载均衡策略
@Bean
@LoadBalancerClient(
name = "user-service",
configuration = UserServiceLoadBalancerConfig.class)
public ReactorLoadBalancer<ServiceInstance> userServiceLoadBalancer(
Environment environment,
LoadBalancerClientFactory loadBalancerClientFactory) {
String name = environment.getProperty(LoadBalancerClientFactory.PROPERTY_NAME);
return new RoundRobinLoadBalancer(
loadBalancerClientFactory.getLazyProvider(name, ServiceInstanceListSupplier.class),
name
);
}
// 基于响应时间的负载均衡策略
@Bean
@ConditionalOnProperty(name = "feign.loadbalancer.response-time.enabled", havingValue = "true")
public ResponseTimeWeightedLoadBalancer responseTimeWeightedLoadBalancer() {
return new ResponseTimeWeightedLoadBalancer();
}
}
请求拦截器
Feign支持请求拦截器，用于添加认证头、日志记录等：
@Component
public class AuthFeignInterceptor implements RequestInterceptor {
private final JwtTokenProvider tokenProvider;
public AuthFeignInterceptor(JwtTokenProvider tokenProvider) {
this.tokenProvider = tokenProvider;
}
@Override
public void apply(RequestTemplate template) {
// 添加认证头
String token = tokenProvider.getCurrentToken();
if (token != null) {
template.header("Authorization", "Bearer " + token);
}
// 添加请求ID用于全链路追踪
String requestId = MDC.get("X-Request-ID");
if (requestId != null) {
template.header("X-Request-ID", requestId);
}
// 添加时间戳
template.header("X-Request-Timestamp",
String.valueOf(System.currentTimeMillis()));
}
}
// 日志拦截器
@Component
@Slf4j
public class LoggingFeignInterceptor implements RequestInterceptor {
@Override
public void apply(RequestTemplate template) {
if (log.isDebugEnabled()) {
log.debug("Feign请求: {} {}, Headers: {}",
template.method(),
template.url(),
template.headers());
}
}
}
错误处理与熔断降级
Feign与Resilience4j或Sentinel集成实现熔断降级：
@FeignClient(name = "payment-service",
fallback = PaymentServiceFallback.class,
fallbackFactory = PaymentServiceFallbackFactory.class)
public interface PaymentServiceClient {
@PostMapping("/api/payments")
@CircuitBreaker(name = "paymentService", fallbackMethod = "processPaymentFallback")
@TimeLimiter(name = "paymentService")
@Retry(name = "paymentService")
PaymentResultDTO processPayment(@RequestBody PaymentRequest request);
// 降级方法
default PaymentResultDTO processPaymentFallback(PaymentRequest request, Throwable t) {
log.warn("支付服务降级，请求ID: {}", request.getOrderId(), t);
return PaymentResultDTO.builder()
.orderId(request.getOrderId())
.status(PaymentStatus.PENDING)
.message("支付处理中，请稍后查询结果")
.build();
}
}
// 降级工厂类
@Component
public class PaymentServiceFallbackFactory implements FallbackFactory<PaymentServiceClient> {
private final MeterRegistry meterRegistry;
public PaymentServiceFallbackFactory(MeterRegistry meterRegistry) {
this.meterRegistry = meterRegistry;
}
@Override
public PaymentServiceClient create(Throwable cause) {
// 记录降级指标
meterRegistry.counter("feign.fallback",
"service", "payment-service").increment();
return new PaymentServiceClient() {
@Override
public PaymentResultDTO processPayment(PaymentRequest request) {
return PaymentResultDTO.builder()
.orderId(request.getOrderId())
.status(PaymentStatus.FAILED)
.message("支付服务暂时不可用: " + cause.getMessage())
.build();
}
};
}
}
配置Resilience4j熔断器：
resilience4j:
circuitbreaker:
instances:
paymentService:
register-health-indicator: true
sliding-window-size: 10
minimum-number-of-calls: 5
permitted-number-of-calls-in-half-open-state: 3
automatic-transition-from-open-to-half-open-enabled: true
wait-duration-in-open-state: 10s
failure-rate-threshold: 50
event-consumer-buffer-size: 10
timelimiter:
instances:
paymentService:
timeout-duration: 5s
retry:
instances:
paymentService:
max-attempts: 3
wait-duration: 500ms
retry-exceptions:
- org.springframework.web.client.HttpServerErrorException
- java.net.SocketTimeoutException
04 性能优化与最佳实践
连接池配置
Feign默认使用HTTP客户端连接池，合理配置可大幅提升性能：
feign:
client:
config:
default:
connectTimeout: 2000
readTimeout: 5000
loggerLevel: basic
okhttp:
enabled: true # 使用OkHttp代替默认客户端
httpclient:
enabled: false
# Apache HttpClient配置（如果使用）
httpclient:
max-connections: 200
max-connections-per-route: 50
time-to-live: 900000
connection-timeout: 2000
follow-redirects: true
# OkHttp配置
okhttp:
connection-pool:
max-idle-connections: 200
keep-alive-duration: 300000
响应式Feign
Spring Cloud 2023.x引入了对响应式Feign的支持：
@ReactiveFeignClient(name = "user-service")
public interface ReactiveUserServiceClient {
@GetMapping("/api/users/{id}")
Mono<UserDTO> getUserById(@PathVariable("id") String userId);
@GetMapping("/api/users")
Flux<UserDTO> getUsers(@RequestParam("page") int page,
@RequestParam("size") int size);
@PostMapping("/api/users")
Mono<UserDTO> createUser(@RequestBody Mono<UserCreateRequest> request);
}
// 在响应式服务中使用
@Service
public class ReactiveOrderService {
private final ReactiveUserServiceClient userServiceClient;
public Mono<OrderDTO> createOrder(OrderCreateRequest request) {
return userServiceClient.getUserById(request.getUserId())
.flatMap(user -> {
// 业务逻辑
return processOrder(user, request);
})
.timeout(Duration.ofSeconds(5))
.onErrorResume(TimeoutException.class, e ->
fallbackOrder(request));
}
}
请求压缩与序列化优化
@Configuration
public class FeignOptimizationConfig {
// 启用GZIP压缩
@Bean
public FeignContentGzipEncodingInterceptor gzipEncodingInterceptor() {
return new FeignContentGzipEncodingInterceptor();
}
// 自定义编码器/解码器
@Bean
public Encoder feignEncoder(ObjectMapper objectMapper) {
return new JacksonEncoder(objectMapper);
}
@Bean
public Decoder feignDecoder(ObjectMapper objectMapper) {
return new JacksonDecoder(objectMapper);
}
// Protobuf支持
@Bean
@ConditionalOnClass(name = "com.google.protobuf.Message")
public Encoder protobufEncoder() {
return new ProtobufEncoder();
}
}
05 Feign在云原生环境中的新特性
对GraalVM原生镜像的支持
Spring Cloud 2023.x增强了对GraalVM原生镜像的兼容性：
@FeignClient(name = "product-service",
contextId = "productServiceNative")
@NativeHint(types = {
@TypeHint(types = ProductDTO.class),
@TypeHint(types = Page.class)
})
public interface ProductServiceNativeClient {
@GetMapping("/api/products/{id}")
ProductDTO getProduct(@PathVariable("id") Long productId);
// 原生镜像友好的方法设计
@GetMapping("/api/products/simple/{id}")
@NativeHintOptions(
serialization = @SerializationHint(
types = {ProductSimpleDTO.class}
)
)
ProductSimpleDTO getSimpleProduct(@PathVariable("id") Long productId);
}
构建原生镜像时的特殊配置：
{
"resources": {
"includes": [
{
"pattern": ".*-default\\.properties$"
},
{
"pattern": ".*feign.*\\.json$"
}
]
},
"proxies": [
{
"interfaces": [
"com.example.ProductServiceNativeClient"
]
}
]
}
服务网格集成
Feign可与服务网格（如Istio）协同工作：
# 结合Istio的流量管理
feign:
circuitbreaker:
enabled: true
# 启用Istio支持
istio:
enabled: true
load-balancer:
mode: "ROUND_ROBIN"
# 支持分布式追踪
tracing:
enabled: true
integration:
opentelemetry:
enabled: true
propagators:
- tracecontext
- b3
// 支持OpenTelemetry的Feign配置
@Configuration
@AutoConfigureAfter(TraceAutoConfiguration.class)
public class FeignTracingConfig {
@Bean
public FeignTracing feignTracing(Tracer tracer,
Propagation.Factory propagationFactory) {
return FeignTracing.newBuilder()
.tracer(tracer)
.propagationFactory(propagationFactory)
.build();
}
@Bean
public Client feignClient(Client client, FeignTracing feignTracing) {
return feignTracing.newClient(client);
}
}

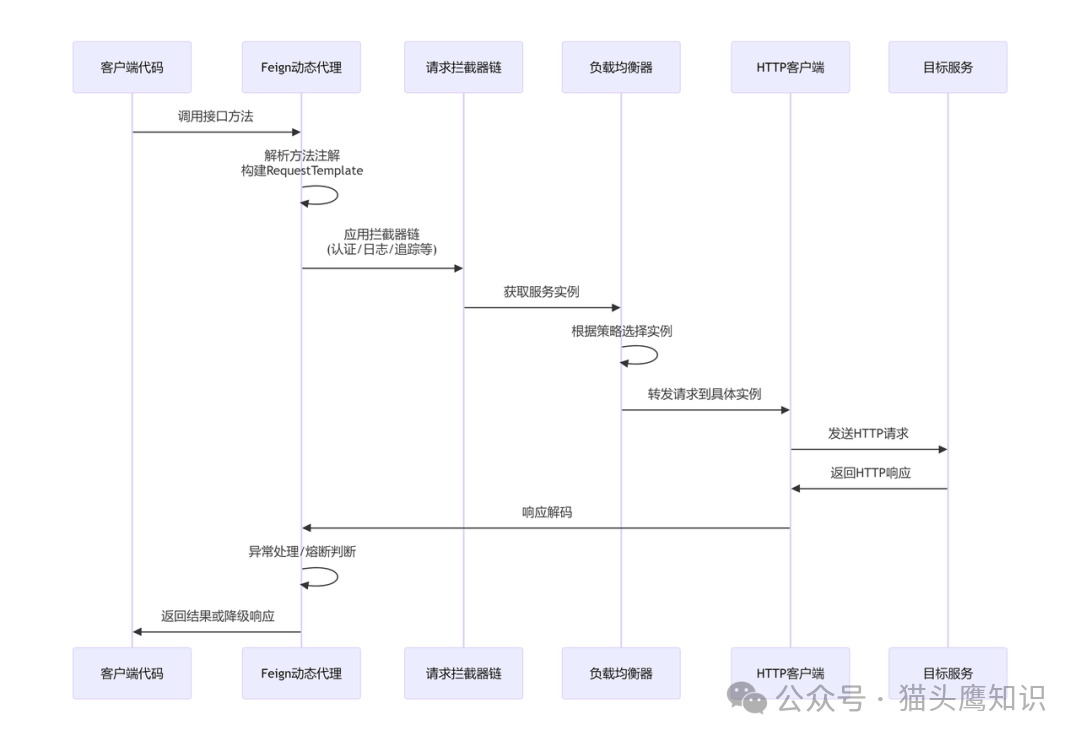

Feign的调用过程涉及多个组件的协同工作，以下是其核心工作流程：
性能监控与指标收集
@Configuration
@ConditionalOnClass(MeterRegistry.class)
public class FeignMetricsConfig {
@Bean
public FeignMetricsProperties feignMetricsProperties() {
return new FeignMetricsProperties();
}
@Bean
public Capability feignMetricsCapability(MeterRegistry meterRegistry,
FeignMetricsProperties properties) {
return new MetricsCapability(meterRegistry, properties);
}
// 自定义指标收集
@Bean
@ConditionalOnMissingBean
public FeignMetricsPostProcessor feignMetricsPostProcessor(
MeterRegistry meterRegistry) {
return new FeignMetricsPostProcessor(meterRegistry);
}
}
监控指标配置示例：
management:
endpoints:
web:
exposure:
include: "metrics,prometheus,health"
metrics:
export:
prometheus:
enabled: true
distribution:
percentiles-histogram:
http.client.requests: true
tags:
application: ${spring.application.name}
tracing:
sampling:
probability: 1.0
feign:
metrics:
enabled: true
include:
- ".*"
exclude:
- "health"
06 实战：构建高可用Feign客户端
以下是一个完整的电商系统中订单服务调用支付服务的高可用示例：
@FeignClient(
name = "payment-service",
url = "${feign.client.payment-service.url:}",
path = "/api/payments",
configuration = PaymentFeignConfig.class,
fallbackFactory = PaymentServiceFallbackFactory.class,
primary = false // 允许多个Feign客户端
)
@RequestInterceptor(AuthInterceptor.class)
@CircuitBreaker(name = "paymentService")
@Retry(name = "paymentService")
public interface PaymentServiceClient {
@PostMapping("/process")
@Headers({
"Content-Type: application/json",
"Accept: application/json"
})
@ResponseHeaders({
@ResponseHeader(name = "X-Request-ID", description = "请求ID")
})
CompletableFuture<PaymentResult> processPaymentAsync(
@RequestBody PaymentRequest request);
@GetMapping("/status/{paymentId}")
@Cacheable(value = "paymentStatus", key = "#paymentId")
PaymentStatus getPaymentStatus(@PathVariable("paymentId") String paymentId,
@RequestHeader("X-Trace-ID") String traceId);
// 批量处理
@PostMapping("/batch")
@TimeLimiter(name = "paymentBatch", fallbackMethod = "batchProcessFallback")
CompletableFuture<List<PaymentResult>> batchProcess(
@RequestBody List<PaymentRequest> requests);
default List<PaymentResult> batchProcessFallback(
List<PaymentRequest> requests, Throwable t) {
log.warn("批量支付降级，请求数量: {}", requests.size(), t);
return requests.stream()
.map(req -> PaymentResult.failed(req.getOrderId(),
"支付服务暂时不可用"))
.collect(Collectors.toList());
}
}
// 高级配置类
@Configuration
@EnableCaching
@EnableAsync
public class PaymentFeignConfig {
@Bean
public Contract feignContract() {
return new SpringMvcContract();
}
@Bean
public Decoder feignDecoder() {
ObjectMapper mapper = new ObjectMapper()
.registerModule(new JavaTimeModule())
.disable(SerializationFeature.WRITE_DATES_AS_TIMESTAMPS);
return new ResponseEntityDecoder(new JacksonDecoder(mapper));
}
@Bean
public ErrorDecoder paymentErrorDecoder() {
return (methodKey, response) -> {
if (response.status() == 429) {
return new RateLimitExceededException("请求频率超限");
}
if (response.status() >= 500) {
return new ServiceUnavailableException("支付服务不可用");
}
return FeignException.errorStatus(methodKey, response);
};
}
@Bean
public Retryer paymentRetryer() {
// 指数退避重试策略
return new Retryer.Default(
100L, // 初始间隔
TimeUnit.SECONDS.toMillis(3L), // 最大间隔
5 // 最大重试次数
);
}
// 异步支持
@Bean
public AsyncFeignSupport asyncFeignSupport() {
return new AsyncFeignSupport();
}
}
如今，Feign已不仅仅是服务间调用的工具，更是微服务架构中的通信标准。从最初的RESTful调用，到如今的云原生、响应式、服务网格集成，Feign在不断演进中保持着其核心优势：让远程调用简单如本地方法。
随着微服务架构的复杂性不断增加，声明式API定义与智能流量治理的结合，将成为微服务通信的标配。正如那句古老编程格言的现代诠释：优秀的抽象不是隐藏复杂性，而是让复杂性无处可藏。希望本文能帮助你在云原生实践中更好地驾驭Feign，构建更健壮的微服务体系。更多深度技术讨论与实战分享，欢迎访问云栈社区。
发表于 8 小时前
|
查看: 0|
回复: 0
