你是否梦想过用手势操控动态的粒子星云，就像《奇异博士》中的魔法场景？本教程将展示如何利用Three.js的3D图形能力和MediaPipe的AI视觉技术，在网页端实现一个实时交互的3D手势粒子系统。
效果预览
系统构建了一个实时交互的3D粒子环境：
- 视觉表现：由20,000个粒子组成的动态模型，支持爱心、土星、佛像等多种形状。
- 交互方式：通过摄像头捕捉手势，张开手掌使粒子扩散，捏合手指让粒子凝聚。
- 技术栈：Three.js + Google MediaPipe + Lil-GUI。
效果演示如下：

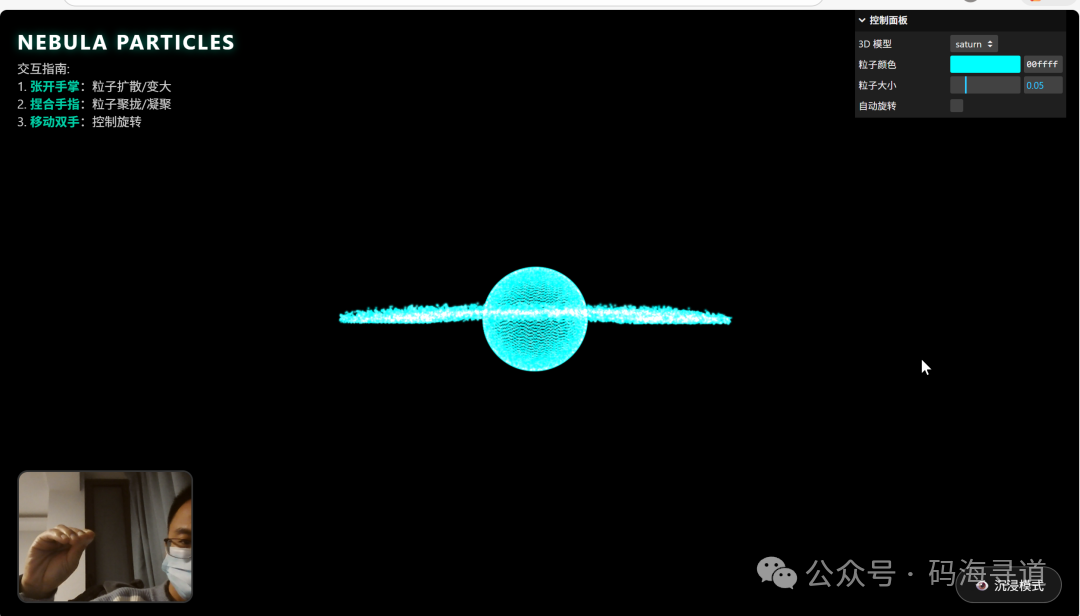

手指捏合：粒子凝聚

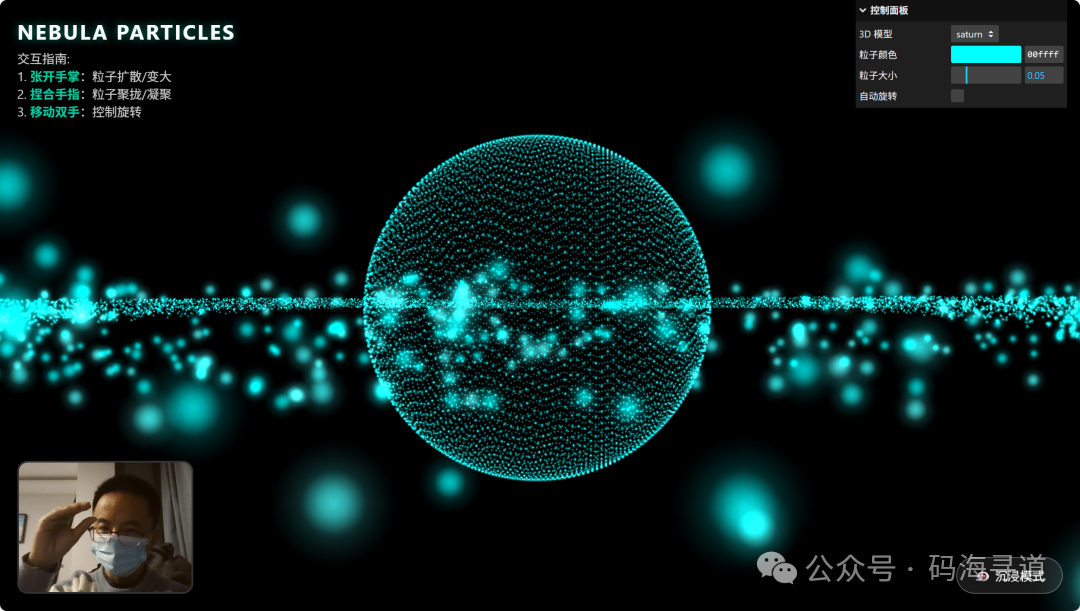

张开手掌：粒子扩散

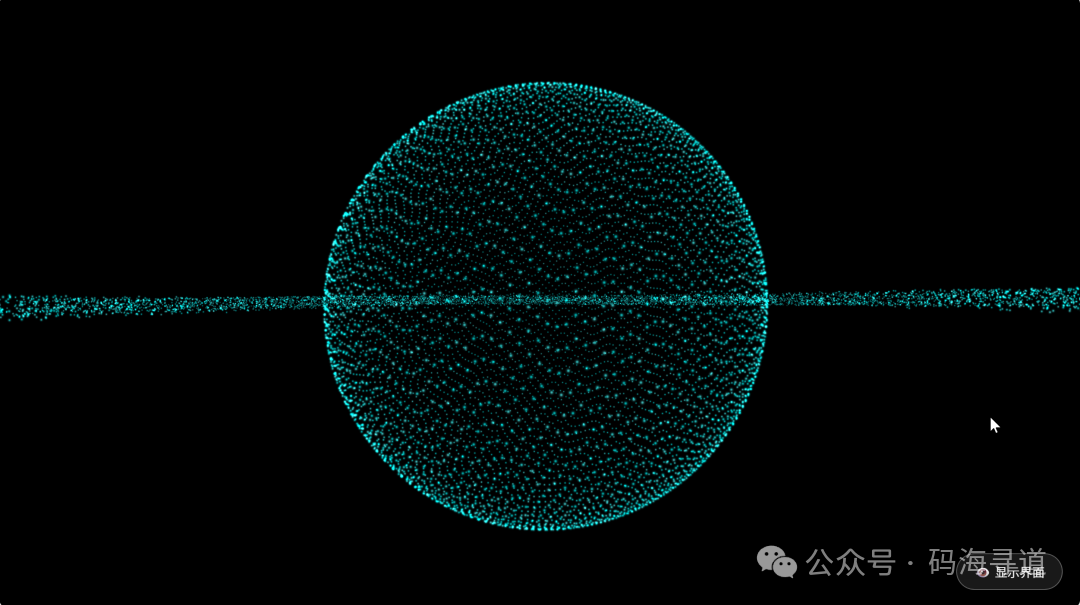

沉浸模式：隐藏参数界面
核心技术拆解
1. 粒子系统的构建：数学驱动的高效渲染
直接创建大量Mesh对象会导致性能崩溃。高效方案是使用THREE.Points和BufferGeometry，通过数学公式动态生成粒子坐标。
所有形状均基于参数方程生成，例如3D爱心的坐标计算：
const Shapes = {
heart: (i, count) => {
const t = (i / count) * Math.PI * 2 * 10;
const x = 16 * Math.pow(Math.sin(t), 3);
const y = 13 * Math.cos(t) - 5 * Math.cos(2*t) - 2 * Math.cos(3*t) - Math.cos(4*t);
const z = (Math.random() - 0.5) * 10; // 增加厚度
return new THREE.Vector3(x * 0.1, y * 0.1, z * 0.1);
},
// 其他形状...
};
关键技巧：使用Canvas动态生成的径向渐变贴图作为粒子纹理，并启用AdditiveBlending混合模式，使粒子重叠处产生发光效果。
系统通过Google MediaPipe精准识别手部的21个关键点骨架，取代传统的色彩追踪方法。
初始化配置需注意GPU加速：
const handLandmarker = await HandLandmarker.createFromOptions(vision, {
baseOptions: {
modelAssetPath: `.../hand_landmarker.task`,
delegate: "GPU" // 启用GPU加速
},
runningMode: "VIDEO",
numHands: 2
});
避坑指南：务必确保视频流已初始化（video.videoWidth > 0），否则MediaPipe可能因内部错误而崩溃。
3. 交互逻辑：从手势到粒子运动的映射
核心是计算手势的交互强度因子，将食指与拇指指尖的距离映射到粒子扩散系数。
计算示例：
// 获取指尖坐标（索引8为食指，4为拇指）
const distance = Math.sqrt(
Math.pow(thumb.x - index.x, 2) + Math.pow(thumb.y - index.y, 2)
);
// 归一化处理：距离越大（张开），因子越接近1；距离越小（捏合），因子越接近0
let factor = Math.min(Math.max((distance - 0.02) / 0.15, 0), 1);
// 使用线性插值平滑过渡，避免突变
CONFIG.interactionStrength = THREE.MathUtils.lerp(CONFIG.interactionStrength, factor, 0.1);
4. 渲染循环：基于目标位置的粒子动画
在requestAnimationFrame循环中，采用“目标位置混合”策略高效模拟粒子运动：
- Target Position：粒子的原始形状坐标。
- Current Position：粒子的当前位置。
- Spread：由手势控制的扩散系数。
更新逻辑：
let targetSpread = 0.5; // 默认松散度
if (isHandDetected) {
targetSpread = 0.2 + (interactionStrength * 2.5); // 手势控制扩散
}
// 逐个更新粒子位置，0.05为阻尼系数
pos[ix] += ((tx * targetSpread + noise) - pos[ix]) * 0.05;
这种方法以极小计算量模拟出带有弹性和阻尼的物理手感。
性能优化关键点
- 几何体复用：切换模型时仅更新
position属性数组，避免频繁垃圾回收。
- GPU加速：MediaPipe运行在GPU上，不阻塞JavaScript主线程。
- 动态纹理：使用Canvas生成粒子贴图，无需外部图片加载。
完整实现代码
以下为完整的HTML代码，可直接运行体验：
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>3D 手势粒子交互系统</title>
<style>
body { margin: 0; overflow: hidden; background: #000; font-family: 'Segoe UI', sans-serif; }
#loader {
position: absolute; top: 0; left: 0; width: 100%; height: 100%;
background: #000; display: flex; flex-direction: column;
justify-content: center; align-items: center; z-index: 999;
color: #00ffcc; transition: opacity 0.5s;
}
.spinner {
width: 50px; height: 50px; border: 3px solid rgba(0,255,204,0.3);
border-radius: 50%; border-top-color: #00ffcc;
animation: spin 1s ease-in-out infinite; margin-bottom: 20px;
}
@keyframes spin { to { transform: rotate(360deg); } }
#webcam-container {
position: absolute; bottom: 20px; left: 20px; width: 200px; height: 150px;
border-radius: 12px; overflow: hidden; border: 2px solid rgba(255,255,255,0.2);
box-shadow: 0 0 20px rgba(0,0,0,0.5); z-index: 10; transform: scaleX(-1);
}
video { width: 100%; height: 100%; object-fit: cover; }
#ui-layer {
position: absolute; top: 20px; left: 20px; color: white; z-index: 5;
pointer-events: none; transition: opacity 0.3s;
}
#toggle-ui-btn {
position: absolute; bottom: 20px; right: 20px;
background: rgba(255,255,255,0.1); border: 1px solid rgba(255,255,255,0.3);
color: white; padding: 10px 20px; border-radius: 30px; cursor: pointer;
backdrop-filter: blur(5px); transition: all 0.3s; z-index: 10;
}
#toggle-ui-btn:hover { background: rgba(0,255,204,0.3); border-color: #00ffcc; }
.ui-hidden #ui-layer, .ui-hidden #webcam-container, .ui-hidden .lil-gui {
opacity: 0; pointer-events: none;
}
</style>
</head>
<body>
<div id="loader">
<div class="spinner"></div>
<div id="loading-text">正在初始化 AI 视觉引擎...</div>
</div>
<div id="webcam-container">
<video id="webcam" autoplay playsinline muted></video>
</div>
<div id="ui-layer">
<h1>NEBULA PARTICLES</h1>
<p>交互指南: <br>
1. <span class="highlight">张开手掌</span>：粒子扩散/变大<br>
2. <span class="highlight">捏合手指</span>：粒子聚拢/凝聚<br>
3. <span class="highlight">移动双手</span>：控制旋转</p>
</div>
<button id="toggle-ui-btn" onclick="toggleUI()">👁️ 沉浸模式</button>
<script type="importmap">
{
"imports": {
"three": "https://cdn.jsdelivr.net/npm/three@0.160.0/build/three.module.js",
"three/addons/": "https://cdn.jsdelivr.net/npm/three@0.160.0/examples/jsm/",
"@mediapipe/tasks-vision": "https://cdn.jsdelivr.net/npm/@mediapipe/tasks-vision@0.10.9/+esm",
"lil-gui": "https://unpkg.com/lil-gui@0.19.1/dist/lil-gui.esm.min.js"
}
}
</script>
<script type="module">
import * as THREE from 'three';
import { OrbitControls } from 'three/addons/controls/OrbitControls.js';
import { FilesetResolver, HandLandmarker } from '@mediapipe/tasks-vision';
import GUI from 'lil-gui';
const CONFIG = {
particleCount: 20000,
particleSize: 0.05,
color: '#00ffff',
model: 'heart',
interactionStrength: 0.0,
handDetected: false,
rotationSpeed: 0.001
};
let scene, camera, renderer, particles, geometry, material;
let handLandmarker, webcam;
let positionsOriginal = [];
let currentPositions = [];
const clock = new THREE.Clock();
const Shapes = {
heart: (i, count) => {
const t = (i / count) * Math.PI * 2 * 10;
const x = 16 * Math.pow(Math.sin(t), 3);
const y = 13 * Math.cos(t) - 5 * Math.cos(2*t) - 2 * Math.cos(3*t) - Math.cos(4*t);
const z = (Math.random() - 0.5) * 10;
return new THREE.Vector3(x * 0.1, y * 0.1, z * 0.1);
},
sphere: (i, count) => {
const phi = Math.acos(-1 + (2 * i) / count);
const theta = Math.sqrt(count * Math.PI) * phi;
const r = 1.5 + Math.random() * 0.2;
return new THREE.Vector3(
r * Math.cos(theta) * Math.sin(phi),
r * Math.sin(theta) * Math.sin(phi),
r * Math.cos(phi)
);
},
flower: (i, count) => {
const theta = i * 0.1;
const r = Math.sin(5 * theta) + 2;
const y = (Math.random() - 0.5) * 1;
const scale = 0.5;
return new THREE.Vector3(r * Math.cos(theta) * scale, y, r * Math.sin(theta) * scale);
},
saturn: (i, count) => {
const isRing = i > count * 0.4;
if (isRing) {
const angle = Math.random() * Math.PI * 2;
const radius = 2.0 + Math.random() * 1.5;
return new THREE.Vector3(Math.cos(angle) * radius, (Math.random() - 0.5) * 0.1, Math.sin(angle) * radius);
} else {
const phi = Math.acos(-1 + (2 * i) / (count * 0.4));
const theta = Math.sqrt(count * Math.PI) * phi;
const r = 1.0;
return new THREE.Vector3(r * Math.cos(theta) * Math.sin(phi), r * Math.sin(theta) * Math.sin(phi), r * Math.cos(phi));
}
},
buddha: (i, count) => {
const p = i / count;
let center = new THREE.Vector3();
let r = 1;
if (p < 0.2) {
center.set(0, 1.2, 0); r = 0.5;
} else if (p < 0.6) {
center.set(0, 0, 0); r = 1.0;
} else {
center.set(0, -1.0, 0); r = 1.2;
}
const u = Math.random(); const v = Math.random();
const theta = 2 * Math.PI * u; const phi = Math.acos(2 * v - 1);
let x = center.x + r * Math.sin(phi) * Math.cos(theta);
let y = center.y + r * Math.sin(phi) * Math.sin(theta);
let z = center.z + r * Math.cos(phi);
if (p >= 0.6) y *= 0.5;
return new THREE.Vector3(x, y, z);
},
fireworks: (i, count) => {
const theta = Math.random() * Math.PI * 2;
const phi = Math.acos(Math.random() * 2 - 1);
const r = Math.random() * 3 + 0.5;
return new THREE.Vector3(r * Math.sin(phi) * Math.cos(theta), r * Math.sin(phi) * Math.sin(theta), r * Math.cos(phi));
}
};
async function init() {
scene = new THREE.Scene();
scene.fog = new THREE.FogExp2(0x000000, 0.05);
camera = new THREE.PerspectiveCamera(75, window.innerWidth / window.innerHeight, 0.1, 100);
camera.position.z = 4;
renderer = new THREE.WebGLRenderer({ antialias: true, alpha: true });
renderer.setSize(window.innerWidth, window.innerHeight);
renderer.setPixelRatio(window.devicePixelRatio);
document.body.appendChild(renderer.domElement);
const controls = new OrbitControls(camera, renderer.domElement);
controls.enableDamping = true;
controls.autoRotate = true;
controls.autoRotateSpeed = 1.0;
createParticles(CONFIG.model);
setupGUI(controls);
try {
await setupMediaPipe();
document.getElementById('loader').style.opacity = '0';
setTimeout(() => document.getElementById('loader').style.display = 'none', 500);
} catch (err) {
console.error("AI Init Failed:", err);
document.getElementById('loading-text').innerText = "AI 加载失败，请检查浏览器或网络";
}
window.addEventListener('resize', onWindowResize);
animate(controls);
}
function createParticles(shapeKey) {
if (particles) { scene.remove(particles); geometry.dispose(); material.dispose(); }
geometry = new THREE.BufferGeometry();
positionsOriginal = [];
const positions = [];
const colors = [];
const colorObj = new THREE.Color(CONFIG.color);
const generator = Shapes[shapeKey] || Shapes.heart;
for (let i = 0; i < CONFIG.particleCount; i++) {
const vec = generator(i, CONFIG.particleCount);
positionsOriginal.push(vec.x, vec.y, vec.z);
positions.push((Math.random() - 0.5) * 10, (Math.random() - 0.5) * 10, (Math.random() - 0.5) * 10);
const mixedColor = colorObj.clone().offsetHSL(0, 0, (Math.random() - 0.5) * 0.1);
colors.push(mixedColor.r, mixedColor.g, mixedColor.b);
}
geometry.setAttribute('position', new THREE.Float32BufferAttribute(positions, 3));
geometry.setAttribute('color', new THREE.Float32BufferAttribute(colors, 3));
material = new THREE.PointsMaterial({
size: CONFIG.particleSize,
vertexColors: true,
blending: THREE.AdditiveBlending,
depthWrite: false,
transparent: true,
opacity: 0.8,
map: createCircleTexture()
});
particles = new THREE.Points(geometry, material);
scene.add(particles);
currentPositions = geometry.attributes.position.array;
}
function createCircleTexture() {
const canvas = document.createElement('canvas');
canvas.width = 32; canvas.height = 32;
const context = canvas.getContext('2d');
const gradient = context.createRadialGradient(16, 16, 0, 16, 16, 16);
gradient.addColorStop(0, 'rgba(255,255,255,1)');
gradient.addColorStop(0.2, 'rgba(255,255,255,0.8)');
gradient.addColorStop(0.5, 'rgba(255,255,255,0.2)');
gradient.addColorStop(1, 'rgba(0,0,0,0)');
context.fillStyle = gradient;
context.fillRect(0,0,32,32);
const texture = new THREE.Texture(canvas);
texture.needsUpdate = true;
return texture;
}
function setupGUI(controls) {
const gui = new GUI({ title: '控制面板' });
gui.add(CONFIG, 'model', ['heart', 'sphere', 'flower', 'saturn', 'buddha', 'fireworks'])
.name('3D 模型').onChange(val => createParticles(val));
gui.addColor(CONFIG, 'color').name('粒子颜色').onChange(val => {
const colors = geometry.attributes.color.array;
const c = new THREE.Color(val);
for(let i=0; i<colors.length; i+=3) {
colors[i] = c.r; colors[i+1] = c.g; colors[i+2] = c.b;
}
geometry.attributes.color.needsUpdate = true;
});
gui.add(CONFIG, 'particleSize', 0.01, 0.2).name('粒子大小').onChange(v => material.size = v);
gui.add(controls, 'autoRotate').name('自动旋转');
}
async function setupMediaPipe() {
const vision = await FilesetResolver.forVisionTasks("https://cdn.jsdelivr.net/npm/@mediapipe/tasks-vision@0.10.9/wasm");
handLandmarker = await HandLandmarker.createFromOptions(vision, {
baseOptions: {
modelAssetPath: `https://storage.googleapis.com/mediapipe-models/hand_landmarker/hand_landmarker/float16/1/hand_landmarker.task`,
delegate: "GPU"
},
runningMode: "VIDEO",
numHands: 2
});
webcam = document.getElementById('webcam');
const stream = await navigator.mediaDevices.getUserMedia({ video: true });
webcam.srcObject = stream;
return new Promise(resolve => { webcam.addEventListener('loadeddata', () => { resolve(); }); });
}
let lastVideoTime = -1;
async function predictWebcam() {
if (handLandmarker && webcam && webcam.videoWidth > 0 && webcam.videoHeight > 0 && webcam.currentTime !== lastVideoTime) {
lastVideoTime = webcam.currentTime;
let results;
try {
const startTimeMs = performance.now();
results = handLandmarker.detectForVideo(webcam, startTimeMs);
} catch (e) {
console.warn("MediaPipe detect error (skipping frame):", e);
requestAnimationFrame(predictWebcam);
return;
}
const statusDiv = document.getElementById('status-indicator');
if (results.landmarks && results.landmarks.length > 0) {
CONFIG.handDetected = true;
statusDiv.innerText = "手势已捕获"; statusDiv.classList.add("active");
const hand = results.landmarks[0];
const thumb = hand[4]; const index = hand[8];
const distance = Math.sqrt(Math.pow(thumb.x - index.x, 2) + Math.pow(thumb.y - index.y, 2));
let factor = Math.min(Math.max((distance - 0.02) / 0.15, 0), 1);
CONFIG.interactionStrength = THREE.MathUtils.lerp(CONFIG.interactionStrength, factor, 0.1);
} else {
CONFIG.handDetected = false;
statusDiv.innerText = "未检测到手势"; statusDiv.classList.remove("active");
CONFIG.interactionStrength = THREE.MathUtils.lerp(CONFIG.interactionStrength, 0.5, 0.05);
}
}
requestAnimationFrame(predictWebcam);
}
function animate(controls) {
requestAnimationFrame(() => animate(controls));
const time = clock.getElapsedTime();
controls.update();
if (geometry && positionsOriginal.length > 0) {
const pos = geometry.attributes.position.array;
let targetSpread = 0.5;
if (CONFIG.handDetected) {
targetSpread = 0.2 + (CONFIG.interactionStrength * 2.5);
} else {
targetSpread = 1.0 + Math.sin(time) * 0.1;
}
for (let i = 0; i < CONFIG.particleCount; i++) {
const ix = i * 3; const iy = i * 3 + 1; const iz = i * 3 + 2;
const tx = positionsOriginal[ix]; const ty = positionsOriginal[iy]; const tz = positionsOriginal[iz];
const noise = Math.sin(time + tx) * 0.05;
pos[ix] += ((tx * targetSpread + noise) - pos[ix]) * 0.05;
pos[iy] += ((ty * targetSpread + noise) - pos[iy]) * 0.05;
pos[iz] += ((tz * targetSpread + noise) - pos[iz]) * 0.05;
}
geometry.attributes.position.needsUpdate = true;
}
renderer.render(scene, camera);
}
function onWindowResize() {
camera.aspect = window.innerWidth / window.innerHeight;
camera.updateProjectionMatrix();
renderer.setSize(window.innerWidth, window.innerHeight);
}
predictWebcam();
init();
window.toggleUI = function() {
document.body.classList.toggle('ui-hidden');
const btn = document.getElementById('toggle-ui-btn');
btn.innerText = document.body.classList.contains('ui-hidden') ? "👁️ 显示界面" : "👁️ 沉浸模式";
};
</script>
</body>
</html>
发表于 3 天前
|
查看: 7|
回复: 0
