1. GTX IP核的创建

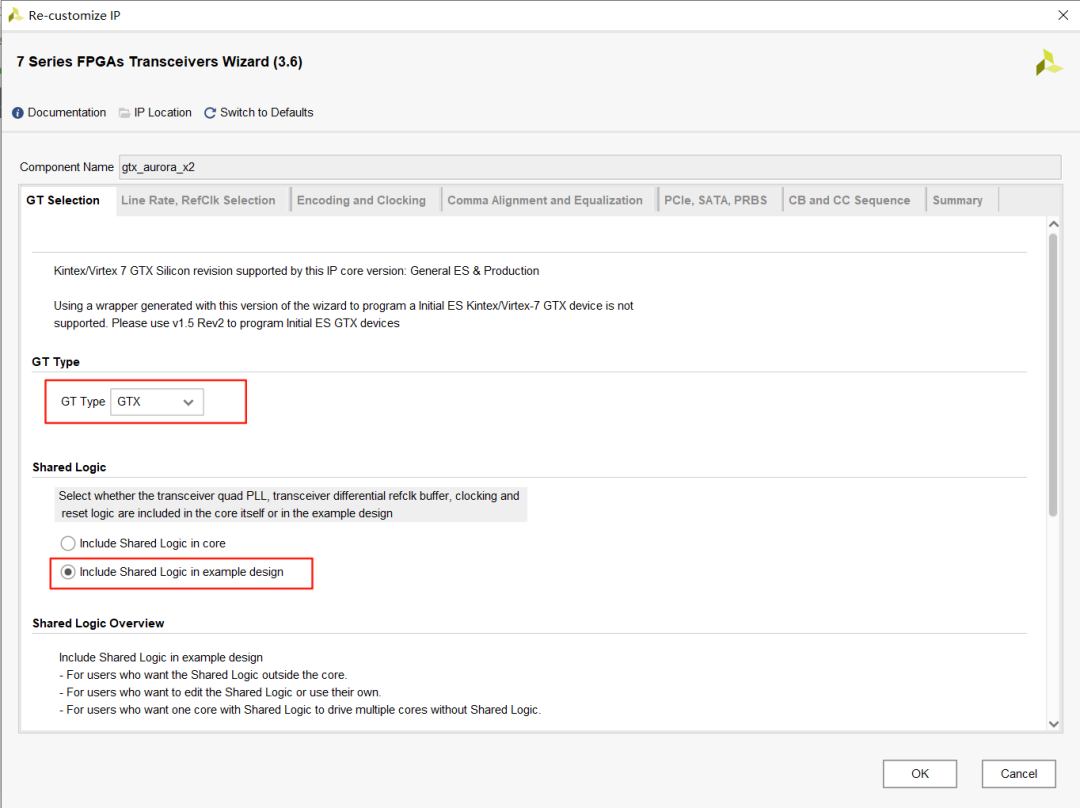

此选项根据你所用的FPGA型号确定GT类型，文中使用的是Kintex-7 325T系列，故GT类型为GTX。
接下来开始配置IP核参数：

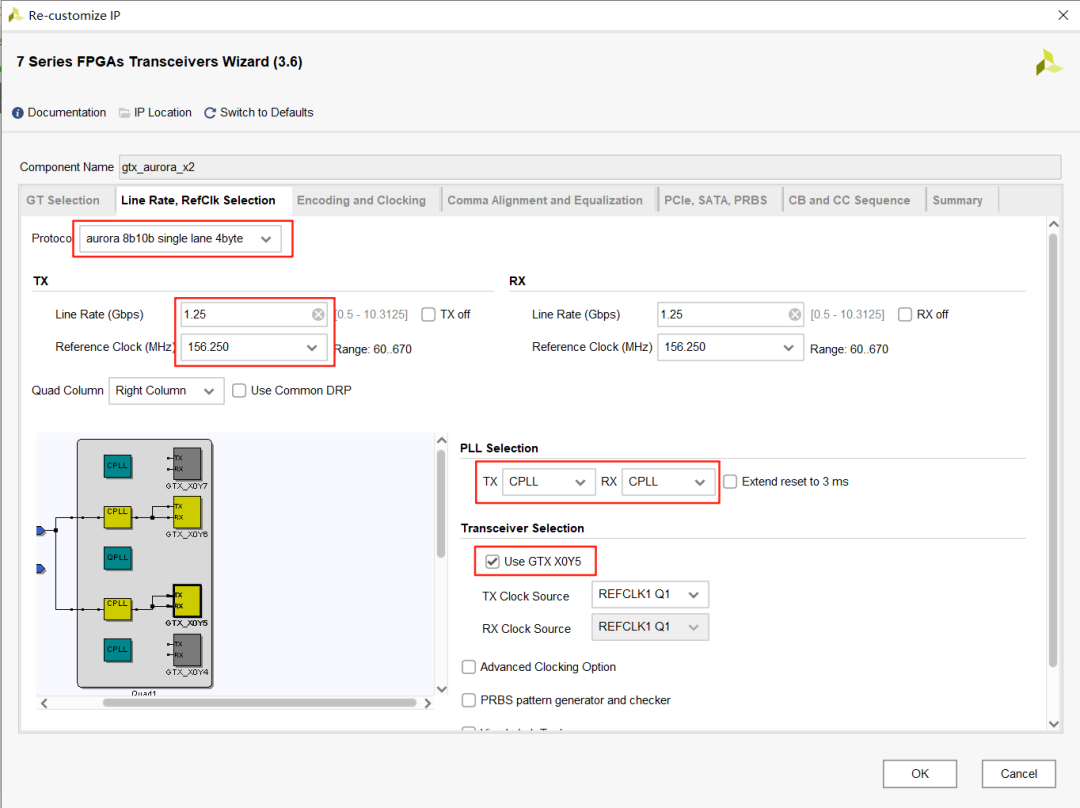

首先，这里的参考时钟频率需连接FPGA高速Bank上的差分时钟（如SFP_CLK_IN_P/N），请根据项目实际硬件设计配置。
其次，因本项目对接光纤收发模块，线速率需适配光口规格——例如1.25 Gbps对应千兆以太网或CPRI基带接口；若为10G SFP+，则需调整至10.3125 Gbps。
💡 初学者提示：文中采用双路GTX（即两路光纤收发），实现方式是在向导左侧灰色GT框图中，用鼠标点击“Use GTX X0Y5”（图中已标红），框图由灰变黄后自动新增第二路GT。该坐标（X0Y5/X0Y6）需严格对照原理图中FPGA Bank与GT Quad位置。即使此处选错也无需重来——只要后续引脚约束（XDC）正确，综合与实现仍可成功。
继续配置收发器参数：

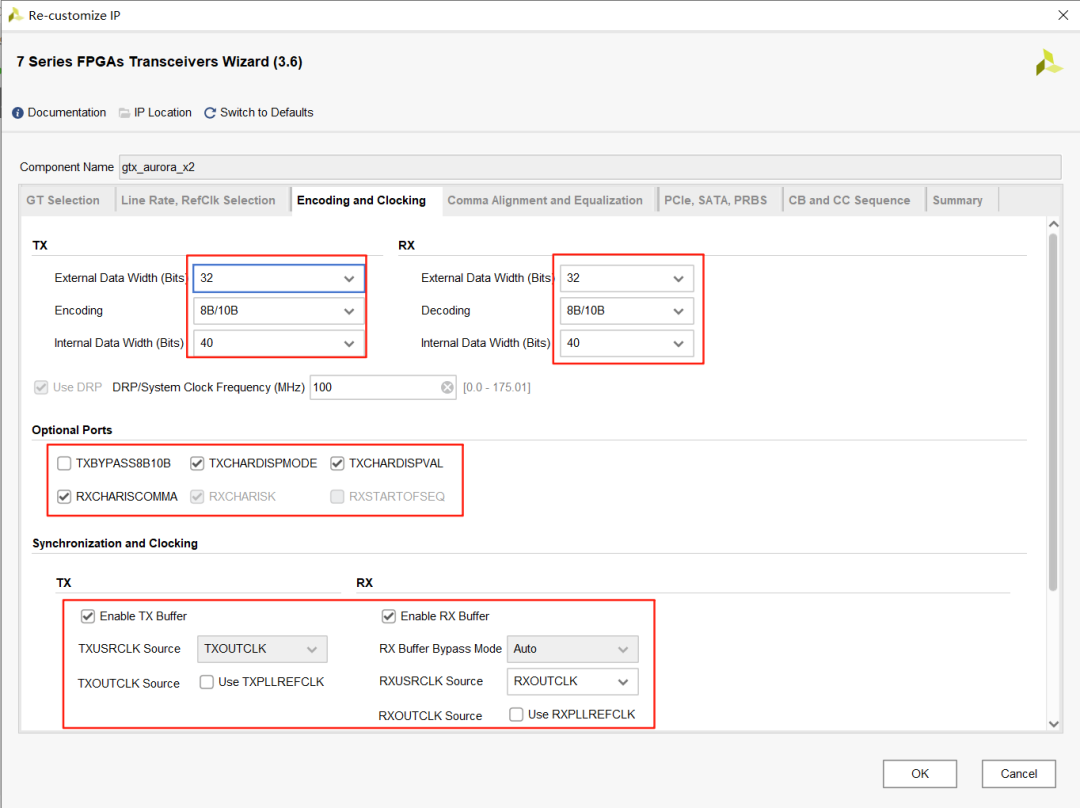

- 外部数据宽度：即用户逻辑最终使用的位宽，本文设为32位（
External Data Width = 32）。若项目需其他位宽（如64位），可通过异步FIFO桥接，不影响GTX核心功能。
- 编码方式：选用标准
8B/10B，其对应的内部数据宽度为40位（因每8bit映射为10bit，32×10/8=40）。该值直接影响TXUSRCLK2频率计算：
TXUSRCLK2 = Line Rate / Internal Datapath Width = 1.25 Gbps / 40 = 31.25 MHz
此公式详见Xilinx官方文档UG476第100页（获取全系列手册：闲鱼搜“麻酱就烧饼”）。
- 其余配置保持默认（特殊需求除外）。

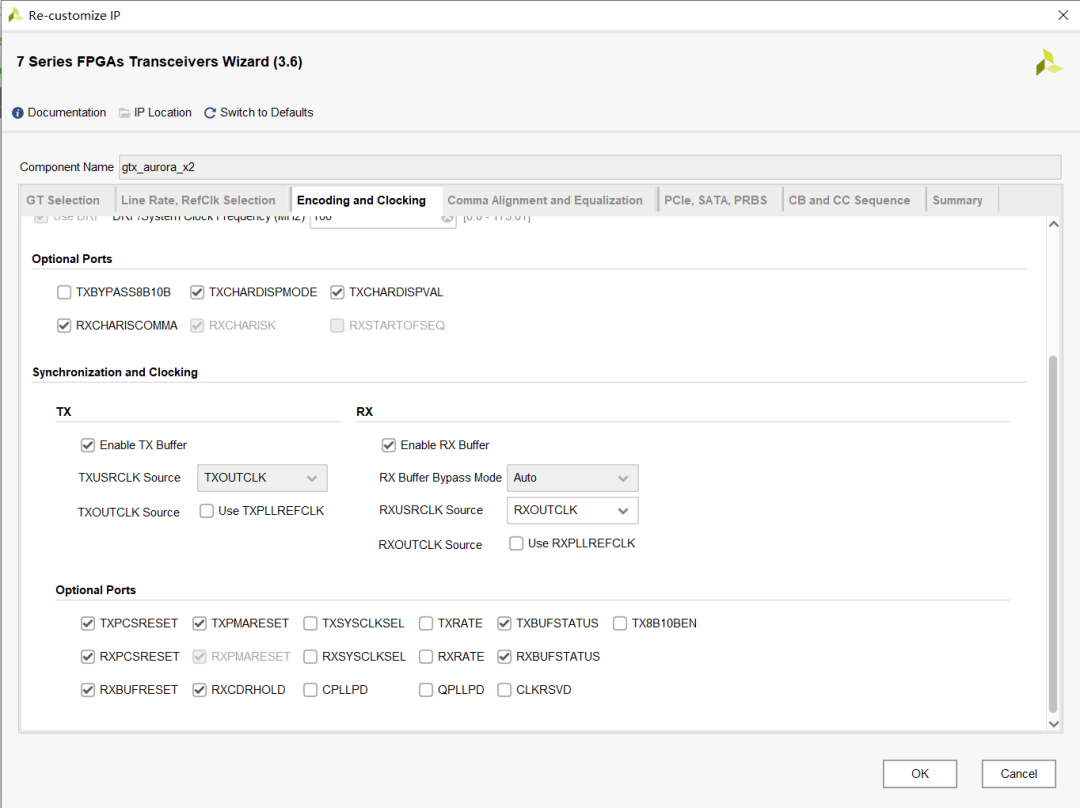

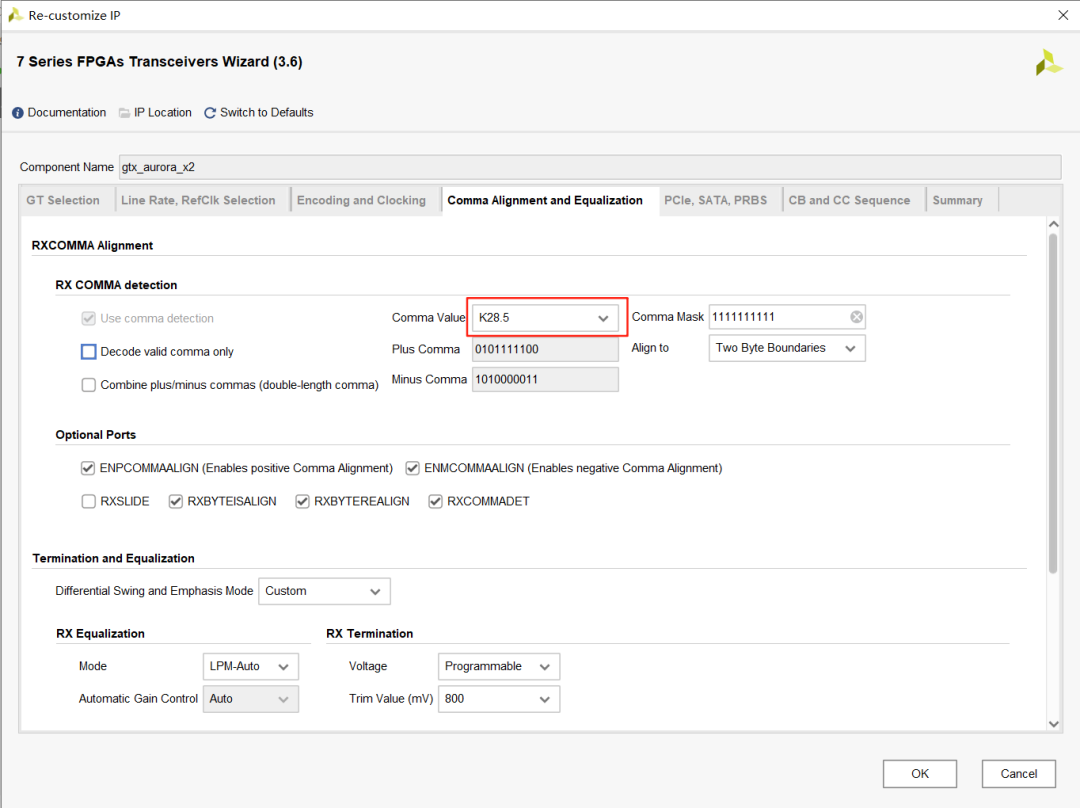

继续进入对齐与均衡设置：
- Comma Value：选用
K28.5（十六进制0xBC），其二进制为10111100——其中低3位101（十进制5）对应K5，高5位00101（十进制5？校验：实际K28为11100→0x1C，K28.5组合逻辑见下文解释）；工程中直接使用8'hBC即可。

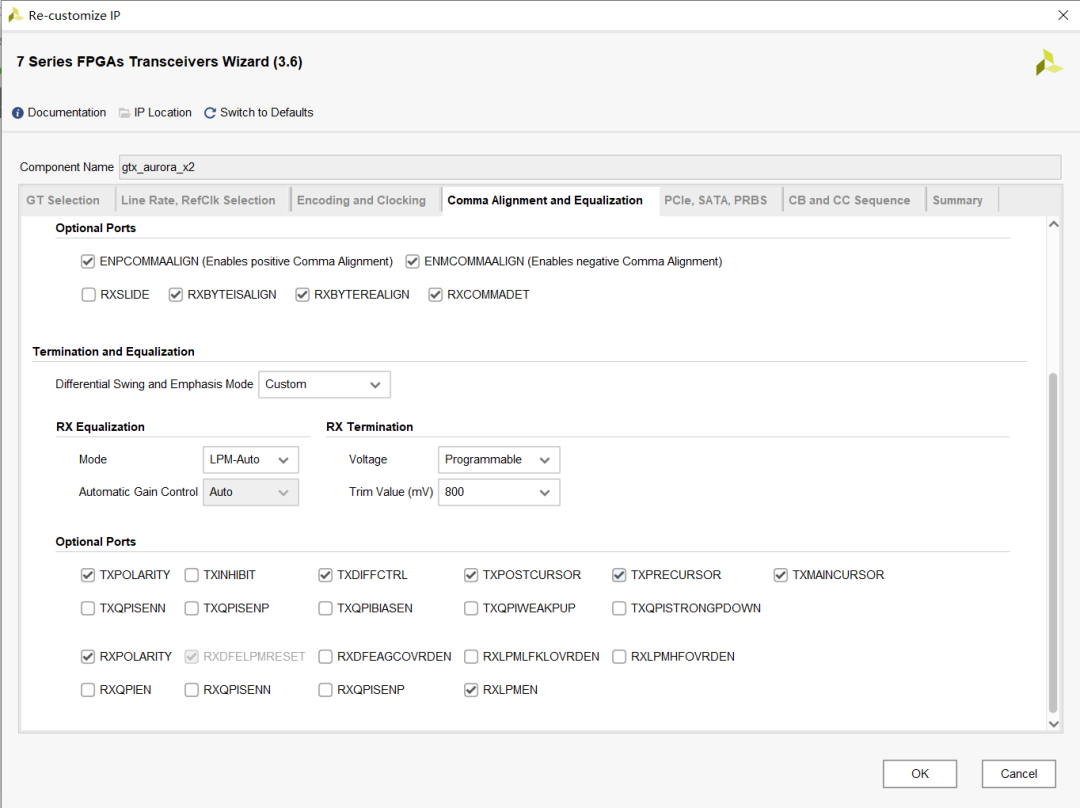

- PRBS检测：勾选
Use PRBS Detector及Use Port TXPRBSSEL，便于后期误码率测试。

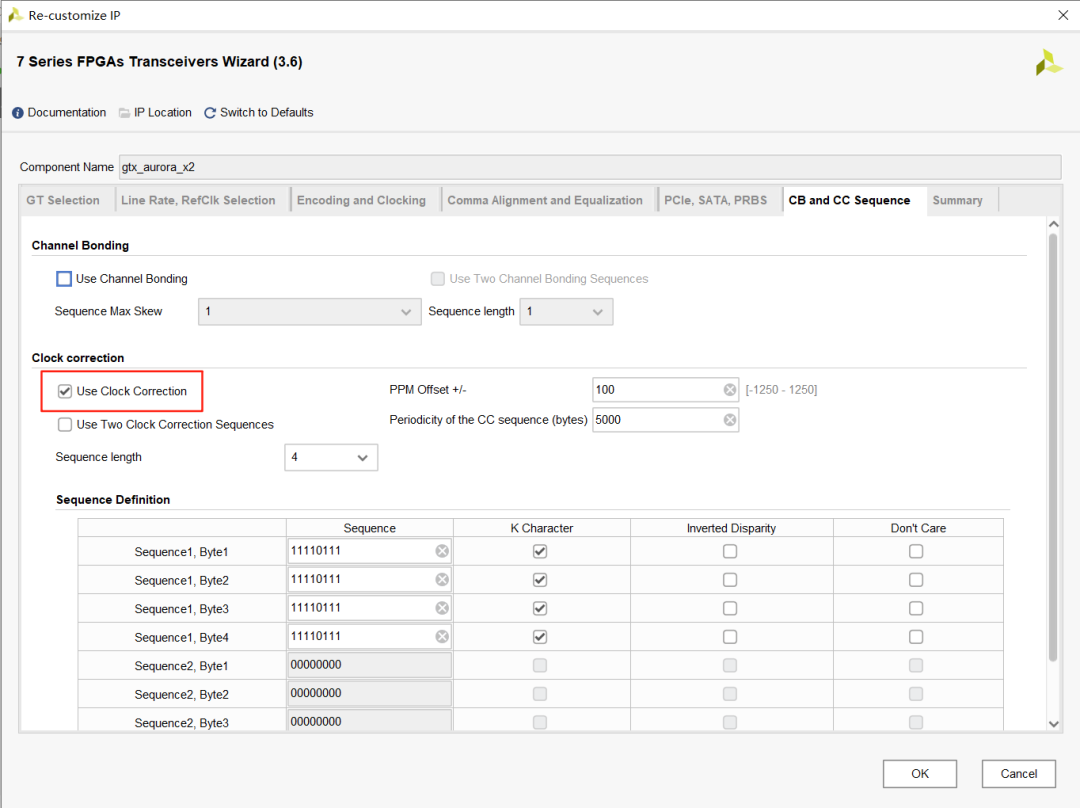

下一步启用时钟校正（Clock Correction），保障多通道间相位一致性：
- 勾选
Use Clock Correction（红色框高亮项），其余参数保持默认。该功能对长距离光纤传输或跨芯片互联至关重要，可动态补偿时钟频偏。

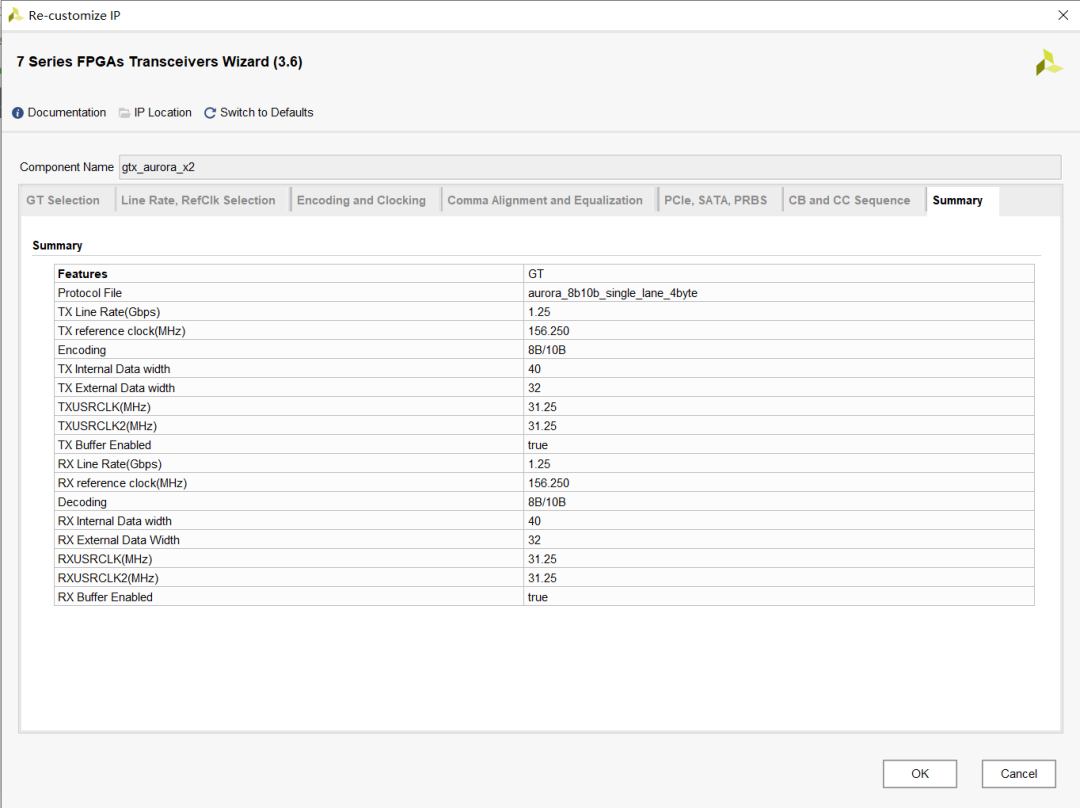

最后检查生成的IP参数摘要：
⚠️ 关键提醒：用户逻辑中发送时钟域为TXUSRCLK2（31.25 MHz），接收时钟域为RXUSRCLK2（同频），务必在顶层模块中正确例化并约束。
2. 搭建工程且编码

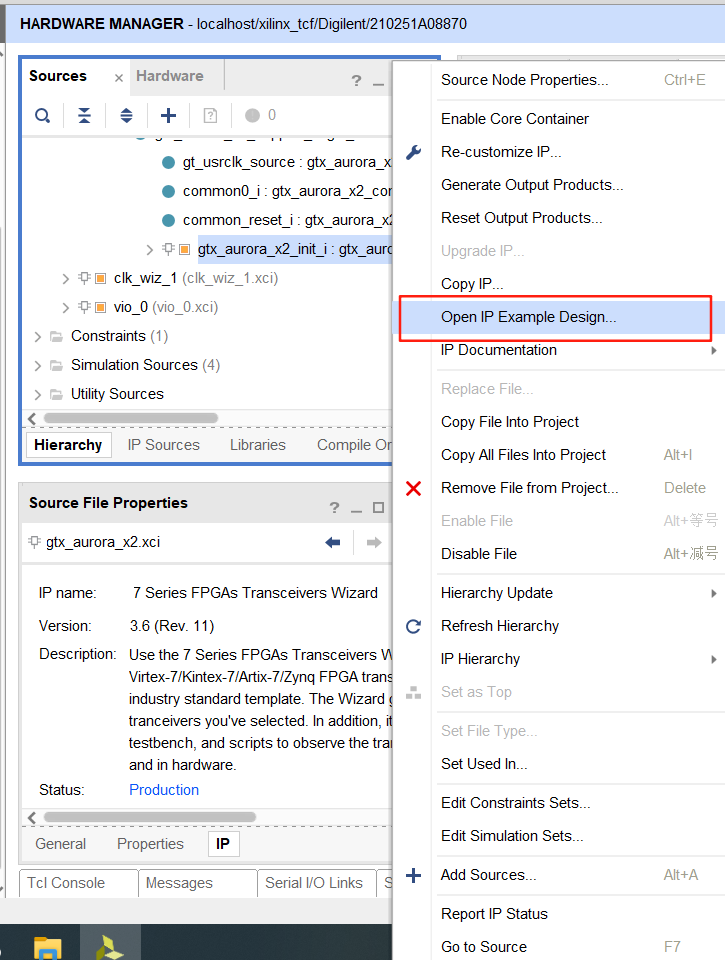

生成IP后，在Vivado Hardware Manager中右键点击GTX IP核，选择 Open IP Example Design... 启动示例工程：
工程结构说明

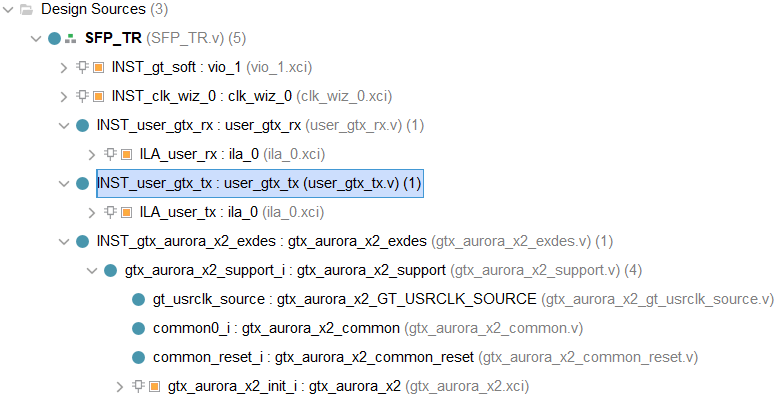

本文构建了清晰的分层架构，顶层调用自定义编解码模块，避免直接依赖Xilinx原生Frame Gen/Check逻辑：

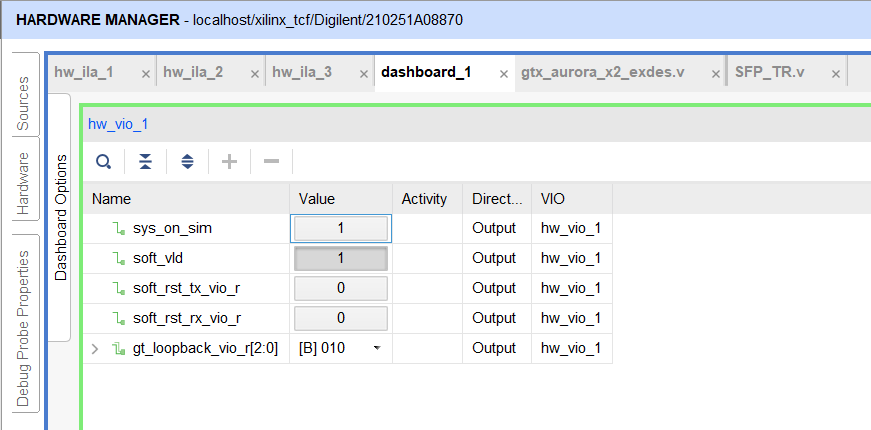

SFP_TR.v：顶层模块，整合时钟、复位、VIO调试接口与GTX核心；user_gtx_tx.v / user_gtx_rx.v：自主实现的8B/10B编解码状态机，支持帧头（SOF）、有效载荷、帧尾（EOF）及空闲码（IDLE）；gtx_aurora_x2_exdes.v：Xilinx生成的GTX Wrapper，已屏蔽原生Frame Gen/Check模块。
顶层模块（SFP_TR）
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer: FPGA NXH
//
// Create Date: 2025/06/09 10:56:46
// Design Name:
// Module Name: SFP_TR
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//////////////////////////////////////////////////////////////////////////////////
module SFP_TR
(
input CLK_i,
input SFP_CLK_IN_P,
input SFP_CLK_IN_N,
input [1:0] SFP_2X_IN_P,
input [1:0] SFP_2X_IN_N,
output [1:0] SFP_2X_OUT_P,
output [1:0] SFP_2X_OUT_N,
output [3:0] state_led
);
//---------------clk and reset-----------------
wire sys_clk;
wire sys_rstn;
//---------------user rx-----------------------
wire user_rx0_clk;
wire [31:0] user_rx0_data;
wire [3:0] user_rx0_kdata;
wire user_rx0_link;
wire user_rx1_clk;
wire [31:0] user_rx1_data;
wire [3:0] user_rx1_kdata;
wire user_rx1_link;
wire [31:0] rX0_data;
wire rX0_data_vld;
wire [31:0] rX1_data;
wire rX1_data_vld;
//---------------user tx-----------------------
wire user_tx0_clk;
wire [31:0] tx0_data;
wire [3:0] tx0_kdata;
wire user_tx0_link;
wire user_tx1_clk;
wire [31:0] tx1_data;
wire [3:0] tx1_kdata;
wire user_tx1_link;
//---------------vio-------------------------------
wire sys_on_sim;
wire soft_vld;
wire soft_rst_tx_vio;
wire soft_rst_rx_vio;
wire [2:0] gt_loopback_vio;
wire soft_rst_tx_vio_r;
wire soft_rst_rx_vio_r;
wire [2:0] gt_loopback_vio_r;
vio_1 INST_gt_soft
(
.clk (sys_clk ),
.probe_out0 (soft_vld ),
.probe_out1 (soft_rst_tx_vio_r ),
.probe_out2 (soft_rst_rx_vio_r ),
.probe_out3 (gt_loopback_vio_r ),
.probe_out4 (sys_on_sim )
);
assign soft_rst_tx_vio = soft_vld ? soft_rst_tx_vio_r : 'h0;
assign soft_rst_rx_vio = soft_vld ? soft_rst_rx_vio_r : 'h0;
assign gt_loopback_vio = soft_vld ? gt_loopback_vio_r : 'h0;
// -------------------sys_on-----------------------------
wire sys_on;
reg [4:0] user_tx0_link_r='h0;
reg [4:0] user_tx1_link_r='h0;
always @(posedge user_tx0_clk) user_tx0_link_r <= {user_tx0_link_r[3:0], user_tx0_link};
always @(posedge user_tx1_clk) user_tx1_link_r <= {user_tx1_link_r[3:0], user_tx1_link};
assign sys_on = (user_tx0_link_r[4] && user_tx1_link_r[4]) ? 'h1 : 'h0;
// -------------------CLK--------------------------------
clk_wiz_0 INST_clk_wiz_0
(
.clk_out1 (sys_clk),
.reset (1'b0),
.locked (sys_rstn),
.clk_in1 (CLK_i)
);
// -----------------USER RX------------------------------
user_gtx_rx
#(
.DATA_WIDTH (32),
.KCHAR_WIDTH (4)
)
INST_user_gtx_rx
(
.clk (sys_clk),
.rstn (sys_rstn),
.rx0_clk (user_rx0_clk),
.rx0_link (user_rx0_link),
.rx0_data (user_rx0_data),
.rx0_kdata (user_rx0_kdata),
.rx1_clk (user_rx1_clk),
.rx1_link (user_rx1_link),
.rx1_data (user_rx1_data),
.rx1_kdata (user_rx1_kdata),
.user_rx0_data (rX0_data),
.user_rx0_data_vld (rX0_data_vld),
.user_rx1_data (rX1_data),
.user_rx1_data_vld (rX1_data_vld)
);
// -----------------USER TX------------------------------
user_gtx_tx
#(
.DATA_WIDTH (32),
.KCHAR_WIDTH (4)
)
INST_user_gtx_tx
(
.clk (sys_clk),
.rstn (sys_rstn),
.sys_on (sys_on_sim),
.tx0_clk (user_tx0_clk),
.tx0_link (user_tx0_link),
.tx0_data (tx0_data),
.tx0_kdata (tx0_kdata),
.tx1_clk (user_tx1_clk),
.tx1_link (user_tx1_link),
.tx1_data (tx1_data),
.tx1_kdata (tx1_kdata)
);
// -----------------GTX-----------------------------------
gtx_aurora_x2_exdes INST_gtx_aurora_x2_exdes
(
.Q1_CLK1_GTREFCLK_PAD_N_IN (SFP_CLK_IN_N),
.Q1_CLK1_GTREFCLK_PAD_P_IN (SFP_CLK_IN_P),
.DRP_CLK_IN (sys_clk),
.RXN_IN (SFP_2X_IN_N),
.RXP_IN (SFP_2X_IN_P),
.TXN_OUT (SFP_2X_OUT_N),
.TXP_OUT (SFP_2X_OUT_P),
// -------------user interface-------------------------
.soft_rst_tx (soft_rst_tx_vio),
.soft_rst_rx (soft_rst_rx_vio),
.gt_loopback (gt_loopback_vio_r),
.user_rx0_clk (user_rx0_clk),
.user_rx0_data (user_rx0_data),
.user_rx0_kdata (user_rx0_kdata),
.user_rx0_link (user_rx0_link),
.user_rx1_clk (user_rx1_clk),
.user_rx1_data (user_rx1_data),
.user_rx1_kdata (user_rx1_kdata),
.user_rx1_link (user_rx1_link),
.user_tx0_clk (user_tx0_clk),
.user_tx0_data (tx0_data),
.user_tx0_kdata (tx0_kdata),
.user_tx0_link (user_tx0_link),
.user_tx1_clk (user_tx1_clk),
.user_tx1_data (tx1_data),
.user_tx1_kdata (tx1_kdata),
.user_tx1_link (user_tx1_link)
);
// -----------------PORT-----------------------------------
assign state_led = {user_tx0_link, user_tx1_link, user_rx0_link, user_rx1_link};
// -----------------DEBUG-----------------------------------
endmodule
打包编码模块（user_gtx_tx）

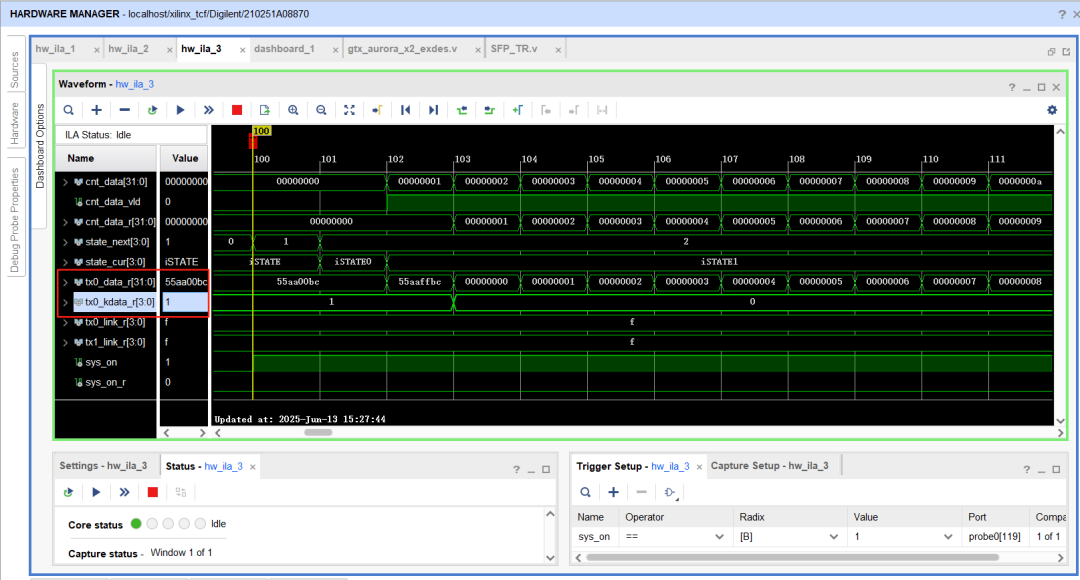

编码流程严格遵循Aurora协议规范：
- 链路未就绪时持续发送空闲码（
FRAM_IDLE）训练物理层；
sys_on拉高后发送帧头（FRAM_SOF）；- 连续发送有效数据（顺序递增
cnt_data）；
- 数据结束发送帧尾（
FRAM_EOF）；
- 回归空闲码维持链路。
K码解析补充：K28.5对应十六进制0xBC，其二进制10111100中，101为K5特征位，11100为K28特征位，组合即得BC。此为8B/10B编码标准约定，详见IEEE 802.3 Annex 36B。
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer: FPGA NXH
//
// Create Date: 2025/06/09 11:06:10
// Design Name:
// Module Name: user_gtx_tx
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//////////////////////////////////////////////////////////////////////////////////
module user_gtx_tx#
(
parameter DATA_WIDTH = 32,
parameter KCHAR_WIDTH = 4
) (
input clk,
input rstn,
input sys_on,
input tx0_clk,
input tx0_link,
output [DATA_WIDTH-1:0] tx0_data,
output [KCHAR_WIDTH-1:0] tx0_kdata,
input tx1_clk,
input tx1_link,
output [DATA_WIDTH-1:0] tx1_data,
output [KCHAR_WIDTH-1:0] tx1_kdata
);
//------------parameter------------------------------
localparam K_CHAR_VLD = 4'h0001;
localparam K_CHAR_NVLD = 4'h0000;
localparam FRAM_IDLE = 32'h55_AA_00_BC; //空闲码
localparam FRAM_SOF = 32'h55_AA_FF_BC; //帧头
localparam FRAM_COM = 32'h55_AA_DD_BC; //有效数据发送完毕
localparam FRAM_EOF = 32'h55_AA_EE_BC; //帧尾
//------------register---------------------------------
reg [DATA_WIDTH-1:0] cnt_data;
reg [DATA_WIDTH-1:0] cnt_data_r=16'h0;
reg cnt_data_vld;
//-----------------预留------------------------------
wire rx_data_rdy;
reg tx0_data_r_vld;
//---------------------------------------------------
reg [DATA_WIDTH-1:0] tx0_data_r;
reg [DATA_WIDTH-1:0] tx1_data_r;
reg [KCHAR_WIDTH-1:0] tx0_kdata_r;
reg [KCHAR_WIDTH-1:0] tx1_kdata_r;
reg [3:0] tx0_link_r;
reg [3:0] tx1_link_r;
//------------status----------------------------------
reg [3:0] state_cur;
reg [3:0] state_next;
//------------------link_r-----------------------------
always @ (posedge tx0_clk) tx0_link_r <= {tx0_link_r[2:0], tx0_link};
always @ (posedge tx1_clk) tx1_link_r <= {tx1_link_r[2:0], tx1_link};
//---------------------预留-----------------------------
assign rx_data_rdy = (state_cur == 'h1|| state_cur == 'h2) ? 1'h1 : 1'h0;
//------------------------------------------------------
always @ (posedge tx0_clk)
begin
if(!tx0_link_r[3])
begin
cnt_data <= 'h0;
cnt_data_vld <= 'h0;
end
else if((state_cur == 'h1|| state_cur == 'h2) && state_next != 'h3 && cnt_data <= 32'h0000_00FF)
begin
cnt_data <= cnt_data + 'h1;
cnt_data_vld <= 'h1;
end
else
begin
cnt_data <= 'h0;
cnt_data_vld <= 'h0;
end
end
always @ (posedge tx0_clk) cnt_data_r <= cnt_data;
//------------------status------------------------------
always @ (posedge tx0_clk)
begin
if(!tx0_link_r[3])
state_cur <= 'h0;
else
state_cur <= state_next;
end
always @ (*)
begin
state_next = state_cur;
case(state_cur)
'h0 : begin
if(sys_on)
if(tx0_link_r[3])
state_next = 'h1;
else
state_next = 'h0;
else
state_next = 'h0;
end
'h1 : state_next = 'h2;
'h2 : begin
if(cnt_data_vld)
begin
state_next = 'h2;
end
else
begin
state_next = 'h3;
end
end
'h3 : state_next = 'h4;
'h4 : state_next = 'h0;
default : state_next = 'h4;
endcase
end
always @ (posedge tx0_clk)
begin
if(!tx0_link_r[3])
begin
tx0_data_r <= 'h0;
tx0_kdata_r <= 'h0;
end
else
begin
case(state_cur)
'h0 : begin
tx0_data_r <= FRAM_IDLE; //发送空闲码
tx0_kdata_r <= 4'b0001;
end
'h1 : begin
tx0_data_r <= FRAM_SOF; //发送帧头
tx0_kdata_r <= K_CHAR_VLD;
end
'h2 : begin
if(cnt_data_vld)
begin //发送有效数据包
tx0_data_r <= cnt_data_r;
tx0_kdata_r <= K_CHAR_NVLD;
end
else
begin
tx0_data_r <= FRAM_COM; //有效数据包发送完毕
tx0_kdata_r <= K_CHAR_VLD;
end
end
'h3 : begin
tx0_data_r <= FRAM_EOF; //发送帧尾
tx0_kdata_r <= K_CHAR_VLD;
end
'h4 : begin //发送空闲码
tx0_data_r <= FRAM_IDLE;
tx0_kdata_r <= K_CHAR_VLD;
end
default : ;
endcase
end
end
//------------------预留-------------------------------
always @ (posedge tx0_clk)
begin
if(!tx0_link_r[3])
tx0_data_r_vld <= 'h0;
else if(state_cur == 'h2 && cnt_data_vld) //此处cnt_data_vld可替换为实际data_vld
tx0_data_r_vld <= 'h1;
else
tx0_data_r_vld <= 'h0;
end
//------------------output port------------------------
assign tx0_data = tx0_data_r;
assign tx0_kdata = tx0_kdata_r;
assign tx1_data = tx1_link_r[3] ? tx0_data_r : 'h0;
assign tx1_kdata = tx1_link_r[3] ? tx0_kdata_r : 'h0;
//----------------------DEBUG-----------------------
ila_0 ILA_user_tx (
.clk (tx0_clk),
.probe0 ({
'h0,
sys_on,
sys_on_r,
cnt_data[31:0], //32
cnt_data_r,
cnt_data_vld,
tx0_data_r_vld,
state_cur, //4
state_next, //4
tx0_link_r, //4
tx1_link_r, //4
tx0_data_r, //32
tx0_kdata_r //32
})
);
endmodule
解包解码模块（user_gtx_rx）
解码逻辑与编码严格镜像：
- 检测帧头
FRAM_SOF（rx0_data==FRAM_SOF && rx0_kdata=='h1）；
- 在
frame_vld有效期间捕获有效数据；
- 忽略帧尾
FRAM_EOF及空闲码，仅输出载荷。
⚠️ 注意：解码后数据处于user_rx0_clk域（31.25 MHz），若需接入系统主时钟域（如100 MHz），必须通过异步FIFO进行跨时钟域同步——这是FPGA高速接口设计的基础 & 综合必修技能。
`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer: FPGA NXH
//
// Create Date: 2025/06/09 11:06:47
// Design Name:
// Module Name: user_gtx_rx
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//////////////////////////////////////////////////////////////////////////////////
module user_gtx_rx #
(
parameter DATA_WIDTH = 32,
parameter KCHAR_WIDTH = 4
) (
input clk,
input rstn,
input rx0_clk,
input rx0_link,
input [DATA_WIDTH-1:0] rx0_data,
input [KCHAR_WIDTH-1:0] rx0_kdata,
input rx1_clk,
input rx1_link,
input [DATA_WIDTH-1:0] rx1_data,
input [KCHAR_WIDTH-1:0] rx1_kdata,
output [DATA_WIDTH-1:0] user_rx0_data,
output user_rx0_data_vld,
output [DATA_WIDTH-1:0] user_rx1_data,
output user_rx1_data_vld
);
//------------paramerter-----------------------------
localparam FRAM_SOF = 32'h55_AA_FF_BC; //帧头
localparam FRAM_EOF = 32'h55_AA_EE_BC; //帧尾
//------------register---------------------------------
reg [DATA_WIDTH-1:0] rx0_data_r =0;
reg [DATA_WIDTH-1:0] rx1_data_r =0;
reg [DATA_WIDTH-1:0] rx0_data_1r=0;
reg [DATA_WIDTH-1:0] rx1_data_1r=0;
reg [DATA_WIDTH-1:0] rx0_data_2r=0;
reg [DATA_WIDTH-1:0] rx1_data_2r=0;
reg [KCHAR_WIDTH-1:0] rx0_kdata_r ='h0;
reg [KCHAR_WIDTH-1:0] rx1_kdata_r ='h0;
reg [KCHAR_WIDTH-1:0] rx0_kdata_1r='h0;
reg [KCHAR_WIDTH-1:0] rx1_kdata_1r='h0;
reg [KCHAR_WIDTH-1:0] rx0_kdata_2r='h0;
reg [KCHAR_WIDTH-1:0] rx1_kdata_2r='h0;
reg [3:0] rx0_link_r;
reg [3:0] rx1_link_r;
reg [DATA_WIDTH-1:0] user_data;
reg user_data_vld;
reg sof_vld;
reg eof_vld;
reg frame_vld;
reg [2:0] state_cur;
reg [2:0] state_next;
//------------------link_r buffer---------------------------
always @ (posedge rx0_clk) rx0_link_r <= {rx0_link_r[2:0], rx0_link};
always @ (posedge rx1_clk) rx1_link_r <= {rx1_link_r[2:0], rx1_link};
//------------------data buffer-----------------------------
always @ (posedge rx0_clk)
begin
rx0_data_r <= rx0_data;
rx0_data_1r <= rx0_data_r;
rx0_data_2r <= rx0_data_1r;
rx1_data_r <= rx1_data;
rx1_data_1r <= rx1_data_r;
rx1_data_2r <= rx1_data_1r;
end
always @ (posedge rx0_clk)
begin
rx0_kdata_r <= rx0_kdata;
rx0_kdata_1r <= rx0_kdata_r;
rx0_kdata_2r <= rx0_kdata_1r;
rx1_kdata_r <= rx1_kdata;
rx1_kdata_1r <= rx1_kdata_r;
rx1_kdata_2r <= rx1_kdata_1r;
end
always @ (posedge rx0_clk)
begin
if(!rx0_link_r[3])
sof_vld <= 'h0;
else if(rx0_data_r==FRAM_SOF && rx0_kdata_r=='h1)
sof_vld <= 'h1;
else
sof_vld <= 'h0;
end
always @ (posedge rx0_clk)
begin
if(!rx0_link_r[3])
eof_vld <= 'h0;
else if(rx0_data_r==FRAM_EOF && rx0_kdata_r=='h1)
eof_vld <= 'h1;
else
eof_vld <= 'h0;
end
always @ (posedge rx0_clk)
begin
if(!rx0_link_r[3])
frame_vld <= 'h0;
else if(sof_vld || eof_vld)
frame_vld <= 'h0;
else
frame_vld <= 'h1;
end
always @ (posedge rx0_clk)
begin
if(!rx0_link_r[3])
begin
user_data <= 'h0;
user_data_vld <= 'h0;
end
else if(rx0_kdata_2r=='h0 && frame_vld)
begin
user_data <= rx0_data_2r;
user_data_vld <= 'h1;
end
else
begin
user_data <= user_data;
user_data_vld <= 'h0;
end
end
//-------------------output port---------------------
assign user_rx0_data = user_data;
assign user_rx0_data_vld = user_data_vld;
assign user_rx1_data = rx1_link_r[3] ? user_data : 'h0;
assign user_rx1_data_vld = rx1_link_r[3] ? user_data_vld : 'h0;
//----------------------DEBUG-----------------------
ila_0 ILA_user_rx (
.clk (rx0_clk),
.probe0 ({
'h0,
rx0_data,
rx0_kdata,
sof_vld,
eof_vld,
frame_vld,
rx0_link_r,
rx1_link_r,
rx0_data_r,
rx0_kdata_r,
rx0_data_1r,
rx0_kdata_1r,
rx0_data_2r,
rx0_kdata_2r,
user_data,
user_data_vld
})
);
endmodule
GT收发顶层（gtx_aurora_x2_exdes）
该模块为Xilinx自动生成的GTX Wrapper，本文已禁用原生Frame Gen/Check逻辑，将user_tx0_data/user_rx0_data直连GTX数据通路，并显式导出TXUSRCLK2/RXUSRCLK2供用户逻辑使用：
//////////////////////////////////////////////////////////////////////////////////
// ____ ____
// / /\/ /
// /___/ \ / Vendor: Xilinx
// \ \ \/ Version : 3.6
// \ \ Application : 7 Series FPGAs Transceivers Wizard
// / / Filename : gtx_aurora_x2_exdes.v
// /___/ /\
// \ \ / \
// \___\/\___\
//
// Module gtx_aurora_x2_exdes
// Generated by Xilinx 7 Series FPGAs Transceivers Wizard
//
// (c) Copyright 2010-2012 Xilinx, Inc. All rights reserved.
//
// This file contains confidential and proprietary information
// of Xilinx, Inc. and is protected under U.S. and
// international copyright and other intellectual property
// laws.
//
// DISCLAIMER
// This disclaimer is not a license and does not grant any
// rights to the materials distributed herewith. Except as
// otherwise provided in a valid license issued to you by
// Xilinx, and to the maximum extent permitted by applicable
// law: (1) THESE MATERIALS ARE MADE AVAILABLE "AS IS" AND
// WITH ALL FAULTS, AND XILINX HEREBY DISCLAIMS ALL WARRANTIES
// AND CONDITIONS, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING
// BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, NON-
// INFRINGEMENT, OR FITNESS FOR ANY PARTICULAR PURPOSE; and
// (2) Xilinx shall not be liable (whether in contract or tort, // including negligence, or under any other theory of // liability) for any loss or damage of any kind or nature
// related to, arising under or in connection with these
// materials, including for any direct, or any indirect,
// special, incidental, or consequential loss or damage
// (including loss of data, profits, goodwill, or any type of // loss or damage suffered as a result of any action brought // by a third party) even if such damage or loss was
// reasonably foreseeable or Xilinx had been advised of the
// possibility of the same.
//
// CRITICAL APPLICATIONS
// Xilinx products are not designed or intended to be fail-
// safe, or for use in any application requiring fail-safe
// performance, such as life-support or safety devices or
// systems, Class III medical devices, nuclear facilities,
// applications related to the deployment of airbags, or any
// other applications that could lead to death, personal
// injury, or severe property or environmental damage
// (individually and collectively, "Critical // Applications"). Customer assumes the sole risk and
// liability of any use of Xilinx products in Critical
// Applications, subject only to applicable laws and
// regulations governing limitations on product liability.
//
// THIS COPYRIGHT NOTICE AND DISCLAIMER MUST BE RETAINED AS
// PART OF THIS FILE AT ALL TIMES. `timescale 1ns / 1ps `define DLY #1
(* DowngradeIPIdentifiedWarnings="yes" *)
//***********************************Entity Declaration************************
(* CORE_GENERATION_INFO = "gtx_aurora_x2,gtwizard_v3_6_11,{protocol_file=aurora_8b10b_single_lane_4byte}" *)
module gtx_aurora_x2_exdes
#(
parameter EXAMPLE_CONFIG_INDEPENDENT_LANES = 1,//configuration for frame gen and check
parameter EXAMPLE_LANE_WITH_START_CHAR = 0, // specifies lane with unique start frame char
parameter EXAMPLE_WORDS_IN_BRAM = 512, // specifies amount of data in BRAM
parameter EXAMPLE_SIM_GTRESET_SPEEDUP = "TRUE", // simulation setting for GT SecureIP model
parameter EXAMPLE_USE_CHIPSCOPE = 0, // Set to 1 to use Chipscope to drive resets
parameter STABLE_CLOCK_PERIOD = 10 )
(
input wire Q1_CLK1_GTREFCLK_PAD_N_IN,
input wire Q1_CLK1_GTREFCLK_PAD_P_IN,
input wire DRP_CLK_IN,
input wire [1:0] RXN_IN,
input wire [1:0] RXP_IN,
output wire [1:0] TXN_OUT,
output wire [1:0] TXP_OUT,
//-------------user interface-------------------------
input soft_rst_tx,
input soft_rst_rx,
input [2:0] gt_loopback,
output user_rx0_clk,
output [31:0] user_rx0_data,
output [3:0] user_rx0_kdata,
output user_rx0_link,
output user_rx1_clk,
output [31:0] user_rx1_data,
output [3:0] user_rx1_kdata,
output user_rx1_link,
output user_tx0_clk,
input [31:0] user_tx0_data,
input [3:0] user_tx0_kdata,
output user_tx0_link,
output user_tx1_clk,
input [31:0] user_tx1_data,
input [3:0] user_tx1_kdata,
output user_tx1_link
);
wire soft_reset_i;
(* mark_debug = "TRUE" *) wire soft_reset_vio_i;
//************************** Register Declarations ****************************
wire gt_txfsmresetdone_i;
wire gt_rxfsmresetdone_i;
(* ASYNC_REG = "TRUE" *) reg gt_txfsmresetdone_r;
(* ASYNC_REG = "TRUE" *) reg gt_txfsmresetdone_r2;
wire gt0_txfsmresetdone_i;
wire gt0_rxfsmresetdone_i;
(* ASYNC_REG = "TRUE" *) reg gt0_txfsmresetdone_r;
(* ASYNC_REG = "TRUE" *) reg gt0_txfsmresetdone_r2;
(* ASYNC_REG = "TRUE" *) reg gt0_rxfsmresetdone_r;
(* ASYNC_REG = "TRUE" *) reg gt0_rxfsmresetdone_r2;
(* ASYNC_REG = "TRUE" *) reg gt0_rxresetdone_r;
(* ASYNC_REG = "TRUE" *) reg gt0_rxresetdone_r2;
(* ASYNC_REG = "TRUE" *) reg gt0_rxresetdone_r3;
(* ASYNC_REG = "TRUE" *) reg gt0_rxresetdone_vio_r;
(* ASYNC_REG = "TRUE" *) reg gt0_rxresetdone_vio_r2;
(* ASYNC_REG = "TRUE" *) reg gt0_rxresetdone_vio_r3;
wire gt1_txfsmresetdone_i;
wire gt1_rxfsmresetdone_i;
(* ASYNC_REG = "TRUE" *) reg gt1_txfsmresetdone_r;
(* ASYNC_REG = "TRUE" *) reg gt1_txfsmresetdone_r2;
(* ASYNC_REG = "TRUE" *) reg gt1_rxfsmresetdone_r;
(* ASYNC_REG = "TRUE" *) reg gt1_rxfsmresetdone_r2;
(* ASYNC_REG = "TRUE" *) reg gt1_rxresetdone_r;
(* ASYNC_REG = "TRUE" *) reg gt1_rxresetdone_r2;
(* ASYNC_REG = "TRUE" *) reg gt1_rxresetdone_r3;
(* ASYNC_REG = "TRUE" *) reg gt1_rxresetdone_vio_r;
(* ASYNC_REG = "TRUE" *) reg gt1_rxresetdone_vio_r2;
(* ASYNC_REG = "TRUE" *) reg gt1_rxresetdone_vio_r3;
reg [5:0] reset_counter = 0;
reg [3:0] reset_pulse;
//**************************** Wire Declarations ******************************
//__________________________GT0(X1Y5)_______________________________________
//CPLL Ports_______________________________________________________________
wire gt0_cpllfbclklost_i;
wire gt0_cplllock_i;
wire gt0_cpllrefclklost_i;
wire gt0_cpllreset_i;
//Channel - DRP Ports______________________________________________________
wire [8:0] gt0_drpaddr_i;
wire [15:0] gt0_drpdi_i;
wire [15:0] gt0_drpdo_i;
wire gt0_drpen_i;
wire gt0_drprdy_i;
wire gt0_drpwe_i;
//Digital Monitor Ports____________________________________________________
wire [7:0] gt0_dmonitorout_i;
//Loopback Ports___________________________________________________________
wire [2:0] gt0_loopback_i;
//Power-Down Ports_______________________________________________________
wire [1:0] gt0_rxpd_i;
wire [1:0] gt0_txpd_i;
//RX Initialization and Reset Ports________________________________________
wire gt0_eyescanreset_i;
wire gt0_rxuserrdy_i;
//RX Margin Analysis Ports_________________________________________________
wire gt0_eyescandataerror_i;
wire gt0_eyescantrigger_i;
//Receive Ports - CDR Ports________________________________________________
wire gt0_rxcdrhold_i;
wire gt0_rxcdrovrden_i;
//Receive Ports - Clock Correction Ports___________________________________
wire [1:0] gt0_rxclkcorcnt_i;
//Receive Ports - FPGA RX interface Ports__________________________________
wire [31:0] gt0_rxdata_i;
//Receive Ports - Pattern Checker Ports____________________________________
wire gt0_rxprbserr_i;
wire [2:0] gt0_rxprbssel_i;
//Receive Ports - Pattern Checker ports____________________________________
wire gt0_rxprbscntreset_i;
//Receive Ports - RX 8B/10B Decoder Ports__________________________________
wire [3:0] gt0_rxdisperr_i;
wire [3:0] gt0_rxnotintable_i;
//Receive Ports - RX AFE___________________________________________________
wire gt0_gtxrxp_i;
//Receive Ports - RX AFE Ports_____________________________________________
wire gt0_gtxrxn_i;
//Receive Ports - RX Buffer Bypass Ports___________________________________
wire gt0_rxbufreset_i;
wire [2:0] gt0_rxbufstatus_i;
//Receive Ports - RX Byte and Word Alignment Ports_________________________
wire gt0_rxbyteisaligned_i;
wire gt0_rxbyterealign_i;
wire gt0_rxcommadet_i;
wire gt0_rxmcommaalignen_i;
wire gt0_rxpcommaalignen_i;
//Receive Ports - RX Equalizer Ports_______________________________________
wire gt0_rxdfelpmreset_i;
wire [6:0] gt0_rxmonitorout_i;
wire [1:0] gt0_rxmonitorsel_i;
//Receive Ports - RX Fabric Output Control Ports___________________________
wire gt0_rxoutclk_i;
wire gt0_rxoutclkfabric_i;
//Receive Ports - RX Initialization and Reset Ports________________________
wire gt0_gtrxreset_i;
wire gt0_rxpcsreset_i;
wire gt0_rxpmareset_i;
//Receive Ports - RX Margin Analysis ports_______________________________
wire gt0_rxlpmen_i;
//Receive Ports - RX Polarity Control Ports________________________________
wire gt0_rxpolarity_i;
//Receive Ports - RX8B/10B Decoder Ports___________________________________
wire [3:0] gt0_rxchariscomma_i;
wire [3:0] gt0_rxcharisk_i;
//Receive Ports -RX Initialization and Reset Ports__________________________
wire gt0_rxresetdone_i;
//TX Configurable Driver Ports_____________________________________________
wire [4:0] gt0_txpostcursor_i;
wire [4:0] gt0_txprecursor_i;
//TX Initialization and Reset Ports________________________________________
wire gt0_gttxreset_i;
wire gt0_txuserrdy_i;
//Transmit Ports - 8b10b Encoder Control Ports_____________________________
wire [3:0] gt0_txchardispmode_i;
wire [3:0] gt0_txchardispval_i;
//Transmit Ports - Pattern Generator Ports_________________________________
wire gt0_txprbsforceerr_i;
//Transmit Ports - TX Buffer Ports_________________________________________
wire [1:0] gt0_txbufstatus_i;
//Transmit Ports - TX Configurable Driver Ports____________________________
wire [3:0] gt0_txdiffctrl_i;
wire [6:0] gt0_txmaincursor_i;
//Transmit Ports - TX Data Path interface__________________________________
wire [31:0] gt0_txdata_i;
//Transmit Ports - TX Driver and OOB signaling_____________________________
wire gt0_gtxtxn_i;
wire gt0_gtxtxp_i;
//Transmit Ports - TX Fabric Clock Output Control Ports_____________________
wire gt0_txoutclk_i;
wire gt0_txoutclkfabric_i;
wire gt0_txoutclkpcs_i;
//Transmit Ports - TX Gearbox Ports_______________________________________
wire [3:0] gt0_txcharisk_i;
//Transmit Ports - TX Initialization and Reset Ports_______________________
wire gt0_txpcsreset_i;
wire gt0_txpmareset_i;
wire gt0_txresetdone_i;
//Transmit Ports - TX Polarity Control Ports_______________________________
wire gt0_txpolarity_i;
//Transmit Ports - pattern Generator Ports_________________________________
wire [2:0] gt0_txprbssel_i;
//__________________________GT1(X1Y6)_______________________________________
//CPLL Ports_______________________________________________________________
wire gt1_cpllfbclklost_i;
wire gt1_cplllock_i;
wire gt1_cpllrefclklost_i;
wire gt1_cpllreset_i;
//Channel - DRP Ports______________________________________________________
wire [8:0] gt1_drpaddr_i;
wire [15:0] gt1_drpdi_i;
wire [15:0] gt1_drpdo_i;
wire gt1_drpen_i;
wire gt1_drprdy_i;
wire gt1_drpwe_i;
//Digital Monitor Ports____________________________________________________
wire [7:0] gt1_dmonitorout_i;
//Loopback Ports___________________________________________________________
wire [2:0] gt1_loopback_i;
//Power-Down Ports_______________________________________________________
wire [1:0] gt1_rxpd_i;
wire [1:0] gt1_txpd_i;
//RX Initialization and Reset Ports________________________________________
wire gt1_eyescanreset_i;
wire gt1_rxuserrdy_i;
//RX Margin Analysis Ports_________________________________________________
wire gt1_eyescandataerror_i;
wire gt1_eyescantrigger_i;
//Receive Ports - CDR Ports________________________________________________
wire gt1_rxcdrhold_i;
wire gt1_rxcdrovrden_i;
//Receive Ports - Clock Correction Ports___________________________________
wire [1:0] gt1_rxclkcorcnt_i;
//Receive Ports - FPGA RX interface Ports__________________________________
wire [31:0] gt1_rxdata_i;
//Receive Ports - Pattern Checker Ports____________________________________
wire gt1_rxprbserr_i;
wire [2:0] gt1_rxprbssel_i;
//Receive Ports - Pattern Checker ports____________________________________
wire gt1_rxprbscntreset_i;
//Receive Ports - RX 8B/10B Decoder Ports__________________________________
wire [3:0] gt1_rxdisperr_i;
wire [3:0] gt1_rxnotintable_i;
//Receive Ports - RX AFE___________________________________________________
wire gt1_gtxrxp_i;
//Receive Ports - RX AFE Ports_____________________________________________
wire gt1_gtxrxn_i;
//Receive Ports - RX Buffer Bypass Ports___________________________________
wire gt1_rxbufreset_i;
wire [2:0] gt1_rxbufstatus_i;
//Receive Ports - RX Byte and Word Alignment Ports_________________________
wire gt1_rxbyteisaligned_i;
wire gt1_rxbyterealign_i;
wire gt1_rxcommadet_i;
wire gt1_rxmcommaalignen_i;
wire gt1_rxpcommaalignen_i;
//Receive Ports - RX Equalizer Ports_______________________________________
wire gt1_rxdfelpmreset_i;
wire [6:0] gt1_rxmonitorout_i;
wire [1:0] gt1_rxmonitorsel_i;
//Receive Ports - RX Fabric Output Control Ports___________________________
wire gt1_rxoutclk_i;
wire gt1_rxoutclkfabric_i;
//Receive Ports - RX Initialization and Reset Ports________________________
wire gt1_gtrxreset_i;
wire gt1_rxpcsreset_i;
wire gt1_rxpmareset_i;
//Receive Ports - RX Margin Analysis ports_______________________________
wire gt1_rxlpmen_i;
//Receive Ports - RX Polarity Control Ports________________________________
wire gt1_rxpolarity_i;
//Receive Ports - RX8B/10B Decoder Ports___________________________________
wire [3:0] gt1_rxchariscomma_i;
wire [3:0] gt1_rxcharisk_i;
//Receive Ports -RX Initialization and Reset Ports__________________________
wire gt1_rxresetdone_i;
//TX Configurable Driver Ports_____________________________________________
wire [4:0] gt1_txpostcursor_i;
wire [4:0] gt1_txprecursor_i;
//TX Initialization and Reset Ports________________________________________
wire gt1_gttxreset_i;
wire gt1_txuserrdy_i;
//Transmit Ports - 8b10b Encoder Control Ports_____________________________
wire [3:0] gt1_txchardispmode_i;
wire [3:0] gt1_txchardispval_i;
//Transmit Ports - Pattern Generator Ports_________________________________
wire gt1_txprbsforceerr_i;
//Transmit Ports - TX Buffer Ports_________________________________________
wire [1:0] gt1_txbufstatus_i;
//Transmit Ports - TX Configurable Driver Ports____________________________
wire [3:0] gt1_txdiffctrl_i;
wire [6:0] gt1_txmaincursor_i;
//Transmit Ports - TX Data Path interface__________________________________
wire [31:0] gt1_txdata_i;
//Transmit Ports - TX Driver and OOB signaling_____________________________
wire gt1_gtxtxn_i;
wire gt1_gtxtxp_i;
//Transmit Ports - TX Fabric Clock Output Control Ports_____________________
wire gt1_txoutclk_i;
wire gt1_txoutclkfabric_i;
wire gt1_txoutclkpcs_i;
//Transmit Ports - TX Gearbox Ports_______________________________________
wire [3:0] gt1_txcharisk_i;
//Transmit Ports - TX Initialization and Reset Ports_______________________
wire gt1_txpcsreset_i;
wire gt1_txpmareset_i;
wire gt1_txresetdone_i;
//Transmit Ports - TX Polarity Control Ports_______________________________
wire gt1_txpolarity_i;
//Transmit Ports - pattern Generator Ports_________________________________
wire [2:0] gt1_txprbssel_i;
//____________________________COMMON PORTS________________________________
//Common Block - Ref Clock Ports_________________________________________
wire gt0_gtrefclk1_common_i;
//Common Block - QPLL Ports______________________________________________
wire gt0_qplllock_i;
wire gt0_qpllrefclklost_i;
wire gt0_qpllreset_i;
//Global Signals_________________________________________________________
wire drpclk_in_i;
wire DRPCLK_IN;
wire gt0_tx_system_reset_c;
wire gt0_rx_system_reset_c;
wire gt1_tx_system_reset_c;
wire gt1_rx_system_reset_c;
wire tied_to_ground_i;
wire [63:0] tied_to_ground_vec_i;
wire tied_to_vcc_i;
wire [7:0] tied_to_vcc_vec_i;
wire GTTXRESET_IN;
wire GTRXRESET_IN;
wire CPLLRESET_IN;
wire QPLLRESET_IN;
//User Clocks_____________________________________________________________
wire gt0_txusrclk_i;
wire gt0_txusrclk2_i;
wire gt0_rxusrclk_i;
wire gt0_rxusrclk2_i;
wire gt1_txusrclk_i;
wire gt1_txusrclk2_i;
wire gt1_rxusrclk_i;
wire gt1_rxusrclk2_i;
//Reference Clocks________________________________________________________
wire q1_clk1_refclk_i;
//Frame check/gen Module Signals__________________________________________
wire gt0_matchn_i;
wire [3:0] gt0_txcharisk_float_i;
wire [15:0] gt0_txdata_float16_i;
wire [31:0] gt0_txdata_float_i;
wire gt0_block_sync_i;
wire gt0_track_data_i;
wire [7:0] gt0_error_count_i;
wire gt0_frame_check_reset_i;
wire gt0_inc_in_i;
wire gt0_inc_out_i;
wire [31:0] gt0_unscrambled_data_i;
wire gt1_matchn_i;
wire [3:0] gt1_txcharisk_float_i;
wire [15:0] gt1_txdata_float16_i;
wire [31:0] gt1_txdata_float_i;
wire gt1_block_sync_i;
wire gt1_track_data_i;
wire [7:0] gt1_error_count_i;
wire gt1_frame_check_reset_i;
wire gt1_inc_in_i;
wire gt1_inc_out_i;
wire [31:0] gt1_unscrambled_data_i;
wire reset_on_data_error_i;
wire track_data_out_i;
//Chipscope Signals_______________________________________________________
(* mark_debug = "TRUE" *)wire rxresetdone_vio_i;
wire [35:0] tx_data_vio_control_i;
wire [35:0] rx_data_vio_control_i;
wire [35:0] shared_vio_control_i;
wire [35:0] ila_control_i;
wire [35:0] channel_drp_vio_control_i;
wire [35:0] common_drp_vio_control_i;
wire [31:0] tx_data_vio_async_in_i;
wire [31:0] tx_data_vio_sync_in_i;
wire [31:0] tx_data_vio_async_out_i;
wire [31:0] tx_data_vio_sync_out_i;
wire [31:0] rx_data_vio_async_in_i;
wire [31:0] rx_data_vio_sync_in_i;
wire [31:0] rx_data_vio_async_out_i;
wire [31:0] rx_data_vio_sync_out_i;
wire [31:0] shared_vio_in_i;
wire [31:0] shared_vio_out_i;
wire [163:0] ila_in_i;
wire [31:0] channel_drp_vio_async_in_i;
wire [31:0] channel_drp_vio_sync_in_i;
wire [31:0] channel_drp_vio_async_out_i;
wire [31:0] channel_drp_vio_sync_out_i;
wire [31:0] common_drp_vio_async_in_i;
wire [31:0] common_drp_vio_sync_in_i;
wire [31:0] common_drp_vio_async_out_i;
wire [31:0] common_drp_vio_sync_out_i;
wire [31:0] gt0_tx_data_vio_async_in_i;
wire [31:0] gt0_tx_data_vio_sync_in_i;
wire [31:0] gt0_tx_data_vio_async_out_i;
wire [31:0] gt0_tx_data_vio_sync_out_i;
wire [31:0] gt0_rx_data_vio_async_in_i;
wire [31:0] gt0_rx_data_vio_sync_in_i;
wire [31:0] gt0_rx_data_vio_async_out_i;
wire [31:0] gt0_rx_data_vio_sync_out_i;
wire [163:0] gt0_ila_in_i;
wire [31:0] gt0_channel_drp_vio_async_in_i;
wire [31:0] gt0_channel_drp_vio_sync_in_i;
wire [31:0] gt0_channel_drp_vio_async_out_i;
wire [31:0] gt0_channel_drp_vio_sync_out_i;
wire [31:0] gt0_common_drp_vio_async_in_i;
wire [31:0] gt0_common_drp_vio_sync_in_i;
wire [31:0] gt0_common_drp_vio_async_out_i;
wire [31:0] gt0_common_drp_vio_sync_out_i;
wire [31:0] gt1_tx_data_vio_async_in_i;
wire [31:0] gt1_tx_data_vio_sync_in_i;
wire [31:0] gt1_tx_data_vio_async_out_i;
wire [31:0] gt1_tx_data_vio_sync_out_i;
wire [31:0] gt1_rx_data_vio_async_in_i;
wire [31:0] gt1_rx_data_vio_sync_in_i;
wire [31:0] gt1_rx_data_vio_async_out_i;
wire [31:0] gt1_rx_data_vio_sync_out_i;
wire [163:0] gt1_ila_in_i;
wire [31:0] gt1_channel_drp_vio_async_in_i;
wire [31:0] gt1_channel_drp_vio_sync_in_i;
wire [31:0] gt1_channel_drp_vio_async_out_i;
wire [31:0] gt1_channel_drp_vio_sync_out_i;
wire [31:0] gt1_common_drp_vio_async_in_i;
wire [31:0] gt1_common_drp_vio_sync_in_i;
wire [31:0] gt1_common_drp_vio_async_out_i;
wire [31:0] gt1_common_drp_vio_sync_out_i;
wire gttxreset_i;
wire gtrxreset_i;
wire mux_sel_i;
wire user_tx_reset_i;
wire user_rx_reset_i;
wire tx_vio_clk_i;
wire tx_vio_clk_mux_out_i;
wire rx_vio_ila_clk_i;
wire rx_vio_ila_clk_mux_out_i;
wire cpllreset_i;
wire [(80 -32) -1:0] zero_vector_rx_80 ; wire [(8 -4) -1:0] zero_vector_rx_8 ; wire [79:0] gt0_rxdata_ila ; wire [1:0] gt0_rxdatavalid_ila; wire [7:0] gt0_rxcharisk_ila ; wire gt0_txmmcm_lock_ila ; wire gt0_rxmmcm_lock_ila ; wire gt0_rxresetdone_ila ; wire gt0_txresetdone_ila ; wire [79:0] gt1_rxdata_ila ; wire [1:0] gt1_rxdatavalid_ila; wire [7:0] gt1_rxcharisk_ila ; wire gt1_txmmcm_lock_ila ; wire gt1_rxmmcm_lock_ila ; wire gt1_rxresetdone_ila ; wire gt1_txresetdone_ila ;
//**************************** Main Body of Code *******************************
// Static signal Assigments
assign tied_to_ground_i = 1'b0;
assign tied_to_ground_vec_i = 64'h0000000000000000;
assign tied_to_vcc_i = 1'b1;
assign tied_to_vcc_vec_i = 8'hff;
assign zero_vector_rx_80 = 0;
assign zero_vector_rx_8 = 0;
assign q1_clk1_refclk_i = 1'b0;
//------------------------------USER INTERFACE---------------------------
//-------------channel 0---------------------
assign user_rx0_clk = gt0_rxusrclk2_i;
assign user_rx0_data = gt0_rxdata_i;
assign user_rx0_kdata = gt0_rxcharisk_i;
assign user_rx0_link = gt0_rxfsmresetdone_i;
assign user_tx0_clk = gt0_txusrclk2_i;
assign gt0_txdata_i = user_tx0_data;
assign gt0_txcharisk_i = user_tx0_kdata;
assign user_tx0_link = gt0_txfsmresetdone_i;
//-------------channel 1---------------------
assign user_rx1_clk = gt1_rxusrclk2_i;
assign user_rx1_data = gt1_rxdata_i;
assign user_rx1_kdata = gt1_rxcharisk_i;
assign user_rx1_link = gt1_rxfsmresetdone_i;
assign user_tx1_clk = gt1_txusrclk2_i;
assign gt1_txdata_i = user_tx1_data;
assign gt1_txcharisk_i = user_tx1_kdata;
assign user_tx1_link = gt1_txfsmresetdone_i;
//***********************************************************************
// The GT Wrapper
//***********************************************************************
// Use the instantiation template in the example directory to add the GT wrapper to your design.
// In this example, the wrapper is wired up for basic operation with a frame generator and frame
// checker. The GTs will reset, then attempt to align and transmit data. If channel bonding is
// enabled, bonding should occur after alignment.
// While connecting the GT TX/RX Reset ports below, please add a delay of
// minimum 500ns as mentioned in AR 43482.
gtx_aurora_x2_support
#(
.EXAMPLE_SIM_GTRESET_SPEEDUP (EXAMPLE_SIM_GTRESET_SPEEDUP),
.STABLE_CLOCK_PERIOD (STABLE_CLOCK_PERIOD)
)
gtx_aurora_x2_support_i
(
.soft_reset_tx_in (soft_rst_tx),
.soft_reset_rx_in (soft_rst_rx),
.dont_reset_on_data_error_in (tied_to_ground_i),
.q1_clk1_gtrefclk_pad_n_in (Q1_CLK1_GTREFCLK_PAD_N_IN),
.q1_clk1_gtrefclk_pad_p_in (Q1_CLK1_GTREFCLK_PAD_P_IN),
.gt0_tx_fsm_reset_done_out (gt0_txfsmresetdone_i),
.gt0_rx_fsm_reset_done_out (gt0_rxfsmresetdone_i),
.gt0_data_valid_in ('b1),
.gt1_tx_fsm_reset_done_out (gt1_txfsmresetdone_i),
.gt1_rx_fsm_reset_done_out (gt1_rxfsmresetdone_i),
.gt1_data_valid_in ('b1),
.gt0_txusrclk_out (gt0_txusrclk_i),
.gt0_txusrclk2_out (gt0_txusrclk2_i),
.gt0_rxusrclk_out (gt0_rxusrclk_i),
.gt0_rxusrclk2_out (gt0_rxusrclk2_i),
.gt1_txusrclk_out (gt1_txusrclk_i),
.gt1_txusrclk2_out (gt1_txusrclk2_i),
.gt1_rxusrclk_out (gt1_rxusrclk_i),
.gt1_rxusrclk2_out (gt1_rxusrclk2_i),
//_____________________________________________________________________
//_____________________________________________________________________
//GT0(X1Y5)
//-------------------------------
//CPLL Ports
//-------------------------------
.gt0_cpllfbclklost_out (gt0_cpllfbclklost_i),
.gt0_cplllock_out (gt0_cplllock_i),
.gt0_cpllreset_in (tied_to_ground_i),
//--------------------------
//Channel - DRP Ports
//--------------------------
.gt0_drpaddr_in (gt0_drpaddr_i),
.gt0_drpdi_in (gt0_drpdi_i),
.gt0_drpdo_out (gt0_drpdo_i),
.gt0_drpen_in (gt0_drpen_i),
.gt0_drprdy_out (gt0_drprdy_i),
.gt0_drpwe_in (gt0_drpwe_i),
//-------------------------
//Digital Monitor Ports
//--------------------------
.gt0_dmonitorout_out (gt0_dmonitorout_i),
//-----------------------------
//Loopback Ports
//-----------------------------
.gt0_loopback_in (gt_loopback),
//----------------------------
//Power-Down Ports
//----------------------------
.gt0_rxpd_in (gt0_rxpd_i),
.gt0_txpd_in (gt0_txpd_i),
//-------------------
//RX Initialization and Reset Ports
//--------------------
.gt0_eyescanreset_in (tied_to_ground_i),
.gt0_rxuserrdy_in (tied_to_vcc_i),
//------------------------
//RX Margin Analysis Ports
//------------------------
.gt0_eyescandataerror_out (gt0_eyescandataerror_i),
.gt0_eyescantrigger_in (tied_to_ground_i),
//-----------------------
//Receive Ports - CDR Ports
//------------------------
.gt0_rxcdrhold_in (gt0_rxcdrhold_i),
.gt0_rxcdrovrden_in (tied_to_ground_i),
//-----------------
//Receive Ports - Clock Correction Ports
//-----------------
.gt0_rxclkcorcnt_out (gt0_rxclkcorcnt_i),
//----------------
//Receive Ports - FPGA RX interface Ports
//-----------------
.gt0_rxdata_out (gt0_rxdata_i),
//-----------------
//Receive Ports - Pattern Checker Ports
//------------------
.gt0_rxprbserr_out (gt0_rxprbserr_i),
.gt0_rxprbssel_in (gt0_rxprbssel_i),
//-----------------
//Receive Ports - Pattern Checker ports
//------------------
.gt0_rxprbscntreset_in (gt0_rxprbscntreset_i),
//----------------
//Receive Ports - RX 8B/10B Decoder Ports
//-----------------
.gt0_rxdisperr_out (gt0_rxdisperr_i),
.gt0_rxnotintable_out (gt0_rxnotintable_i),
//-------------------------
//Receive Ports - RX AFE
//-------------------------
.gt0_gtxrxp_in (RXP_IN[0]),
//----------------------
//Receive Ports - RX AFE Ports
//----------------------
.gt0_gtxrxn_in (RXN_IN[0]),
//-----------------
//Receive Ports - RX Buffer Bypass Ports
//-----------------
.gt0_rxbufreset_in (gt0_rxbufreset_i),
.gt0_rxbufstatus_out (gt0_rxbufstatus_i),
//------------
//Receive Ports - RX Byte and Word Alignment Ports
------------
.gt0_rxbyteisaligned_out (gt0_rxbyteisaligned_i),
.gt0_rxbyterealign_out (gt0_rxbyterealign_i),
.gt0_rxcommadet_out (gt0_rxcommadet_i),
.gt0_rxmcommaalignen_in ('b1),
.gt0_rxpcommaalignen_in ('b1),
//-------------------
//Receive Ports - RX Equalizer Ports
//-------------------
.gt0_rxdfelpmreset_in (tied_to_ground_i),
.gt0_rxmonitorout_out (gt0_rxmonitorout_i),
.gt0_rxmonitorsel_in (2'b00),
//-------------
//Receive Ports - RX Fabric Output Control Ports
//-------------
.gt0_rxoutclkfabric_out (gt0_rxoutclkfabric_i),
//-----------
//Receive Ports - RX Initialization and Reset Ports
------------
.gt0_gtrxreset_in (tied_to_ground_i),
.gt0_rxpcsreset_in (tied_to_ground_i),
.gt0_rxpmareset_in (gt0_rxpmareset_i),
//----------------
//Receive Ports - RX Margin Analysis ports
----------------
.gt0_rxlpmen_in (gt0_rxlpmen_i),
//---------------
//Receive Ports - RX Polarity Control Ports
----------------
.gt0_rxpolarity_in (gt0_rxpolarity_i),
//-----------------
//Receive Ports - RX8B/10B Decoder Ports
-----------------
.gt0_rxchariscomma_out (gt0_rxchariscomma_i),
.gt0_rxcharisk_out (gt0_rxcharisk_i),
//------------
//Receive Ports -RX Initialization and Reset Ports
------------
.gt0_rxresetdone_out (gt0_rxresetdone_i),
//----------------------
//TX Configurable Driver Ports
//----------------------
.gt0_txpostcursor_in (gt0_txpostcursor_i),
.gt0_txprecursor_in (gt0_txprecursor_i),
//-------------------
//TX Initialization and Reset Ports
//--------------------
.gt0_gttxreset_in (tied_to_ground_i),
.gt0_txuserrdy_in (tied_to_vcc_i),
//--------------
//Transmit Ports - 8b10b Encoder Control Ports
--------------
.gt0_txchardispmode_in (gt0_txchardispmode_i),
.gt0_txchardispval_in (gt0_txchardispval_i),
//----------------
//Transmit Ports - Pattern Generator Ports
----------------
.gt0_txprbsforceerr_in (gt0_txprbsforceerr_i),
//--------------------
//Transmit Ports - TX Buffer Ports
--------------------
.gt0_txbufstatus_out (gt0_txbufstatus_i),
//-------------
//Transmit Ports - TX Configurable Driver Ports
--------------
.gt0_txdiffctrl_in (gt0_txdiffctrl_i),
.gt0_txmaincursor_in (7'b0000000),
//----------------
//Transmit Ports - TX Data Path interface
-----------------
.gt0_txdata_in (gt0_txdata_i),
//--------------
//Transmit Ports - TX Driver and OOB signaling
--------------
.gt0_gtxtxn_out (TXN_OUT[0]),
.gt0_gtxtxp_out (TXP_OUT[0]),
//---------
//Transmit Ports - TX Fabric Clock Output Control Ports
----------
.gt0_txoutclkfabric_out (gt0_txoutclkfabric_i),
.gt0_txoutclkpcs_out (gt0_txoutclkpcs_i),
//-------------------
//Transmit Ports - TX Gearbox Ports
--------------------
.gt0_txcharisk_in (gt0_txcharisk_i),
//-----------
//Transmit Ports - TX Initialization and Reset Ports
-----------
.gt0_txpcsreset_in (tied_to_ground_i),
.gt0_txpmareset_in (tied_to_ground_i),
.gt0_txresetdone_out (gt0_txresetdone_i),
//---------------
//Transmit Ports - TX Polarity Control Ports
---------------
.gt0_txpolarity_in (gt0_txpolarity_i),
//----------------
//Transmit Ports - pattern Generator Ports
----------------
.gt0_txprbssel_in (gt0_txprbssel_i),
//_____________________________________________________________________
//_____________________________________________________________________
//GT1(X1Y6)
//-------------------------------
//CPLL Ports
//-------------------------------
.gt1_cpllfbclklost_out (gt1_cpllfbclklost_i),
.gt1_cplllock_out (gt1_cplllock_i),
.gt1_cpllreset_in (tied_to_ground_i),
//--------------------------
//Channel - DRP Ports
//--------------------------
.gt1_drpaddr_in (gt1_drpaddr_i),
.gt1_drpdi_in (gt1_drpdi_i),
.gt1_drpdo_out (gt1_drpdo_i),
.gt1_drpen_in (gt1_drpen_i),
.gt1_drprdy_out (gt1_drprdy_i),
.gt1_drpwe_in (gt1_drpwe_i),
//-------------------------
//Digital Monitor Ports
//--------------------------
.gt1_dmonitorout_out (gt1_dmonitorout_i),
//-----------------------------
//Loopback Ports
//-----------------------------
.gt1_loopback_in (gt1_loopback_i),
//----------------------------
//Power-Down Ports
//----------------------------
.gt1_rxpd_in (gt1_rxpd_i),
.gt1_txpd_in (gt1_txpd_i),
//-------------------
//RX Initialization and Reset Ports
//--------------------
.gt1_eyescanreset_in (tied_to_ground_i),
.gt1_rxuserrdy_in (tied_to_vcc_i),
//------------------------
//RX Margin Analysis Ports
//------------------------
.gt1_eyescandataerror_out (gt1_eyescandataerror_i),
.gt1_eyescantrigger_in (tied_to_ground_i),
//-----------------------
//Receive Ports - CDR Ports
//------------------------
.gt1_rxcdrhold_in (gt1_rxcdrhold_i),
.gt1_rxcdrovrden_in (tied_to_ground_i),
//-----------------
//Receive Ports - Clock Correction Ports
//-----------------
.gt1_rxclkcorcnt_out (gt1_rxclkcorcnt_i),
//----------------
//Receive Ports - FPGA RX interface Ports
//-----------------
.gt1_rxdata_out (gt1_rxdata_i),
//-----------------
//Receive Ports - Pattern Checker Ports
//------------------
.gt1_rxprbserr_out (gt1_rxprbserr_i),
.gt1_rxprbssel_in (gt1_rxprbssel_i),
//-----------------
//Receive Ports - Pattern Checker ports
//------------------
.gt1_rxprbscntreset_in (gt1_rxprbscntreset_i),
//----------------
//Receive Ports - RX 8B/10B Decoder Ports
//-----------------
.gt1_rxdisperr_out (gt1_rxdisperr_i),
.gt1_rxnotintable_out (gt1_rxnotintable_i),
//-------------------------
//Receive Ports - RX AFE
//-------------------------
.gt1_gtxrxp_in (RXP_IN[1]),
//----------------------
//Receive Ports - RX AFE Ports
//----------------------
.gt1_gtxrxn_in (RXN_IN[1]),
//-----------------
//Receive Ports - RX Buffer Bypass Ports
//-----------------
.gt1_rxbufreset_in (gt1_rxbufreset_i),
.gt1_rxbufstatus_out (gt1_rxbufstatus_i),
//------------
//Receive Ports - RX Byte and Word Alignment Ports
------------
.gt1_rxbyteisaligned_out (gt1_rxbyteisaligned_i),
.gt1_rxbyterealign_out (gt1_rxbyterealign_i),
.gt1_rxcommadet_out (gt1_rxcommadet_i),
.gt1_rxmcommaalignen_in ('b1),
.gt1_rxpcommaalignen_in ('b1),
//-------------------
//Receive Ports - RX Equalizer Ports
//-------------------
.gt1_rxdfelpmreset_in (tied_to_ground_i),
.gt1_rxmonitorout_out (gt1_rxmonitorout_i),
.gt1_rxmonitorsel_in (2'b00),
//-------------
//Receive Ports - RX Fabric Output Control Ports
//-------------
.gt1_rxoutclkfabric_out (gt1_rxoutclkfabric_i),
//-----------
//Receive Ports - RX Initialization and Reset Ports
------------
.gt1_gtrxreset_in (tied_to_ground_i),
.gt1_rxpcsreset_in (tied_to_ground_i),
.gt1_rxpmareset_in (gt1_rxpmareset_i),
//----------------
//Receive Ports - RX Margin Analysis ports
----------------
.gt1_rxlpmen_in (gt1_rxlpmen_i),
//---------------
//Receive Ports - RX Polarity Control Ports
----------------
.gt1_rxpolarity_in (gt1_rxpolarity_i),
//-----------------
//Receive Ports - RX8B/10B Decoder Ports
-----------------
.gt1_rxchariscomma_out (gt1_rxchariscomma_i),
.gt1_rxcharisk_out (gt1_rxcharisk_i),
//------------
//Receive Ports -RX Initialization and Reset Ports
------------
.gt1_rxresetdone_out (gt1_rxresetdone_i),
//----------------------
//TX Configurable Driver Ports
//----------------------
.gt1_txpostcursor_in (gt1_txpostcursor_i),
.gt1_txprecursor_in (gt1_txprecursor_i),
//-------------------
//TX Initialization and Reset Ports
//--------------------
.gt1_gttxreset_in (tied_to_ground_i),
.gt1_txuserrdy_in (tied_to_vcc_i),
//--------------
//Transmit Ports - 8b10b Encoder Control Ports
--------------
.gt1_txchardispmode_in (gt1_txchardispmode_i),
.gt1_txchardispval_in (gt1_txchardispval_i),
//----------------
//Transmit Ports - Pattern Generator Ports
----------------
.gt1_txprbsforceerr_in (gt1_txprbsforceerr_i),
//--------------------
//Transmit Ports - TX Buffer Ports
--------------------
.gt1_txbufstatus_out (gt1_txbufstatus_i),
//-------------
//Transmit Ports - TX Configurable Driver Ports
--------------
.gt1_txdiffctrl_in (gt1_txdiffctrl_i),
.gt1_txmaincursor_in (7'b0000000),
//----------------
//Transmit Ports - TX Data Path interface
-----------------
.gt1_txdata_in (gt1_txdata_i),
//--------------
//Transmit Ports - TX Driver and OOB signaling
--------------
.gt1_gtxtxn_out (TXN_OUT[1]),
.gt1_gtxtxp_out (TXP_OUT[1]),
//---------
//Transmit Ports - TX Fabric Clock Output Control Ports
----------
.gt1_txoutclkfabric_out (gt1_txoutclkfabric_i),
.gt1_txoutclkpcs_out (gt1_txoutclkpcs_i),
//-------------------
//Transmit Ports - TX Gearbox Ports
--------------------
.gt1_txcharisk_in (gt1_txcharisk_i),
//-----------
//Transmit Ports - TX Initialization and Reset Ports
-----------
.gt1_txpcsreset_in (tied_to_ground_i),
.gt1_txpmareset_in (tied_to_ground_i),
.gt1_txresetdone_out (gt1_txresetdone_i),
//---------------
//Transmit Ports - TX Polarity Control Ports
---------------
.gt1_txpolarity_in (gt1_txpolarity_i),
//----------------
//Transmit Ports - pattern Generator Ports
----------------
.gt1_txprbssel_in (gt1_txprbssel_i),
//____________________________COMMON PORTS________________________________
.gt0_qplloutclk_out (),
.gt0_qplloutrefclk_out (),
.sysclk_in (DRP_CLK_IN)
);
//***********************************************************************
// User Module Resets
//***********************************************************************
// All the User Modules i.e. FRAME_GEN, FRAME_CHECK and the sync modules
// are held in reset till the RESETDONE goes high.
// The RESETDONE is registered a couple of times on *USRCLK2 and connected
// to the reset of the modules
always @(posedge gt0_rxusrclk2_i or negedge gt0_rxresetdone_i)
begin
if(!gt0_rxresetdone_i)
begin
gt0_rxresetdone_r <= `DLY 1'b0;
gt0_rxresetdone_r2 <= `DLY 1'b0;
gt0_rxresetdone_r3 <= `DLY 1'b0;
end
else
begin
gt0_rxresetdone_r <= `DLY gt0_rxresetdone_i;
gt0_rxresetdone_r2 <= `DLY gt0_rxresetdone_r;
gt0_rxresetdone_r3 <= `DLY gt0_rxresetdone_r2;
end
end
always @(posedge gt0_txusrclk2_i or negedge gt0_txfsmresetdone_i)
begin
if(!gt0_txfsmresetdone_i)
begin
gt0_txfsmresetdone_r <= `DLY 1'b0;
gt0_txfsmresetdone_r2 <= `DLY 1'b0;
end
else
begin
gt0_txfsmresetdone_r <= `DLY gt0_txfsmresetdone_i;
gt0_txfsmresetdone_r2 <= `DLY gt0_txfsmresetdone_r;
end
end
always @(posedge gt1_rxusrclk2_i or negedge gt1_rxresetdone_i)
begin
if(!gt1_rxresetdone_i)
begin
gt1_rxresetdone_r <= `DLY 1'b0;
gt1_rxresetdone_r2 <= `DLY 1'b0;
gt1_rxresetdone_r3 <= `DLY 1'b0;
end
else
begin
gt1_rxresetdone_r <= `DLY gt1_rxresetdone_i;
gt1_rxresetdone_r2 <= `DLY gt1_rxresetdone_r;
gt1_rxresetdone_r3 <= `DLY gt1_rxresetdone_r2;
end
end
always @(posedge gt1_txusrclk2_i or negedge gt1_txfsmresetdone_i)
begin
if(!gt1_txfsmresetdone_i)
begin
gt1_txfsmresetdone_r <= `DLY 1'b0;
gt1_txfsmresetdone_r2 <= `DLY 1'b0;
end
else
begin
gt1_txfsmresetdone_r <= `DLY gt1_txfsmresetdone_i;
gt1_txfsmresetdone_r2 <= `DLY gt1_txfsmresetdone_r;
end
end
//***********************************************************************
// Frame Generators
//***********************************************************************
// The example design uses Block RAM based frame generators to provide test
// data to the GTs for transmission. By default the frame generators are
// loaded with an incrementing data sequence that includes commas/alignment
// characters for alignment. If your protocol uses channel bonding, the
// frame generator will also be preloaded with a channel bonding sequence.
// You can modify the data transmitted by changing the INIT values of the frame
// generator in this file. Pay careful attention to bit order and the spacing
// of your control and alignment characters.
// gtx_aurora_x2_GT_FRAME_GEN
// #
// //
// // .WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM)
// //
// // )
// // gt0_frame_gen
// // //
// // // User Interface
// // // .TX_DATA_OUT ({gt0_txdata_float_i,gt0_txdata_i,gt0_txdata_float16_i})
// // ,
// // .TXCTRL_OUT ({gt0_txcharisk_float_i,gt0_txcharisk_i}),
// // //
// // //System Interface
// // // .USER_CLK (gt0_txusrclk2_i)
// // ,
// // .SYSTEM_RESET (gt0_tx_system_reset_c)
// // //
// // );
// // gtx_aurora_x2_GT_FRAME_GEN
// // #
// // //
// // .WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM)
// // //
// // )
// // gt1_frame_gen
// // //
// // // User Interface
// // // .TX_DATA_OUT ({gt1_txdata_float_i,gt1_txdata_i,gt1_txdata_float16_i})
// // ,
// // .TXCTRL_OUT ({gt1_txcharisk_float_i,gt1_txcharisk_i}),
// // //
// // //System Interface
// // // .USER_CLK (gt1_txusrclk2_i)
// // ,
// // .SYSTEM_RESET (gt1_tx_system_reset_c)
// // //
// // );
//***********************************************************************
// Frame Checkers
//***********************************************************************
// The example design uses Block RAM based frame checkers to verify incoming
// data. By default the frame generators are loaded with a data sequence that
// matches the outgoing sequence of the frame generators for the TX ports.
// You can modify the expected data sequence by changing the INIT values of the frame
// checkers in this file. Pay careful attention to bit order and the spacing
// of your control and alignment characters.
// When the frame checker receives data, it attempts to synchronise to the
// incoming pattern by looking for the first sequence in the pattern. Once it
// finds the first sequence, it increments through the sequence, and indicates an
// error whenever the next value received does not match the expected value.
// assign gt0_frame_check_reset_i = (EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?reset_on_data_error_i:gt0_matchn_i;
// gt0_frame_check0 is always connected to the lane with the start of char
// and this lane starts off the data checking on all the other lanes. The INC_IN port is tied off
// assign gt0_inc_in_i = 1'b0;
// gtx_aurora_x2_GT_FRAME_CHECK
// #
// // .RX_DATA_WIDTH ( 32 )
// ,
// // .RXCTRL_WIDTH ( 4 )
// ,
// // .COMMA_DOUBLE ( 16'h04bc )
// ,
// // .WORDS_IN_BRAM (EXAMPLE_WORDS_IN_BRAM)
// ,
// // .START_OF_PACKET_CHAR ( 32'h060504bc )
// //
// // )
// // gt0_frame_check
// // //
// // // GT Interface //
// // // .RX_DATA_IN (gt0_rxdata_i)
// // ,
// // .RXCTRL_IN (gt0_rxcharisk_i)
// // ,
// // .RXENMCOMMADET_OUT (gt0_rxmcommaalignen_i)
// // ,
// // .RXENPCOMMADET_OUT (gt0_rxpcommaalignen_i)
// // ,
// // .RX_ENCHAN_SYNC_OUT ( )
// // ,
// // .RX_CHANBOND_SEQ_IN (tied_to_ground_i)
// // ,
// // //Control Interface
// // // .INC_IN (gt0_inc_in_i)
// // ,
// // .INC_OUT (gt0_inc_out_i)
// // ,
// // .PATTERN_MATCHB_OUT (gt0_matchn_i)
// // ,
// // .RESET_ON_ERROR_IN (gt0_frame_check_reset_i)
// // ,
// // //System Interface
// // // .USER_CLK (gt0_rxusrclk2_i)
// // ,
// // .SYSTEM_RESET (gt0_rx_system_reset_c)
// // ,
// // .ERROR_COUNT_OUT (gt0_error_count_i)
// // ,
// // .TRACK_DATA_OUT (gt0_track_data_i)
// // //
// // );
// assign gt1_frame_check_reset_i = (EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?reset_on_data_error_i:gt1_matchn_i;
// in the "independent lanes" configuration, each of the lanes looks for the unique start char and
// in this case, the INC_IN port is tied off.
// Else, the data checking is triggered by the "master" lane
// assign gt1_inc_in_i = (EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?gt0_inc_out_i:1'b0;
// gtx_aurora_x2_GT_FRAME_CHECK
// #
// // .RX_DATA_WIDTH ( 32 )
// ,
// // .RXCTRL_WIDTH ( 4 )
// ,
// // .COMMA_DOUBLE ( 16'h04bc )
// ,
// // .WORDS_IN_BRAM (EXAMPLE_WORDS_IN_BRAM)
// ,
// // .START_OF_PACKET_CHAR ( 32'h060504bc )
// //
// // )
// // gt1_frame_check
// // //
// // // GT Interface //
// // // .RX_DATA_IN (gt1_rxdata_i)
// // ,
// // .RXCTRL_IN (gt1_rxcharisk_i)
// // ,
// // .RXENMCOMMADET_OUT (gt1_rxmcommaalignen_i)
// // ,
// // .RXENPCOMMADET_OUT (gt1_rxpcommaalignen_i)
// // ,
// // .RX_ENCHAN_SYNC_OUT ( )
// // ,
// // .RX_CHANBOND_SEQ_IN (tied_to_ground_i)
// // ,
// // //Control Interface
// // // .INC_IN (gt1_inc_in_i)
// // ,
// // .INC_OUT (gt1_inc_out_i)
// // ,
// // .PATTERN_MATCHB_OUT (gt1_matchn_i)
// // ,
// // .RESET_ON_ERROR_IN (gt1_frame_check_reset_i)
// // ,
// // //System Interface
// // // .USER_CLK (gt1_rxusrclk2_i)
// // ,
// // .SYSTEM_RESET (gt1_rx_system_reset_c)
// // ,
// // .ERROR_COUNT_OUT (gt1_error_count_i)
// // ,
// // .TRACK_DATA_OUT (gt1_track_data_i)
// // //
// // );
// assign TRACK_DATA_OUT = track_data_out_i;
// assign track_data_out_i =
// gt0_track_data_i &
// gt1_track_data_i ;
//-------------------------------------------------------------------------------------
//-------------------------Debug Signals assignment--------------------
assign gt0_rxlpmen_i = tied_to_vcc_i;
assign gt1_rxlpmen_i = tied_to_vcc_i;
//------------ optional Ports assignments --------------
assign gt0_rxprbscntreset_i = tied_to_ground_i; assign gt0_rxprbssel_i = 0; assign gt0_loopback_i = 0; assign gt0_txdiffctrl_i = 0; assign gt0_rxbufreset_i = tied_to_ground_i; assign gt0_rxcdrhold_i = tied_to_ground_i; //------GTH/GTP
assign gt0_rxdfelpmreset_i = tied_to_ground_i; assign gt0_rxpmareset_i = tied_to_ground_i; assign gt0_rxpolarity_i = tied_to_ground_i; assign gt0_rxpd_i = 0; assign gt0_txprecursor_i = 0; assign gt0_txpostcursor_i = 0; assign gt0_txchardispmode_i = 0; assign gt0_txchardispval_i = 0; assign gt0_txpolarity_i = tied_to_ground_i; assign gt0_txpd_i = 0; assign gt0_txprbsforceerr_i = tied_to_ground_i; assign gt0_txprbssel_i = 0; assign gt1_rxprbscntreset_i = tied_to_ground_i; assign gt1_rxprbssel_i = 0; assign gt1_loopback_i = 0; assign gt1_txdiffctrl_i = 0; assign gt1_rxbufreset_i = tied_to_ground_i; assign gt1_rxcdrhold_i = tied_to_ground_i; //------GTH/GTP
assign gt1_rxdfelpmreset_i = tied_to_ground_i; assign gt1_rxpmareset_i = tied_to_ground_i; assign gt1_rxpolarity_i = tied_to_ground_i; assign gt1_rxpd_i = 0; assign gt1_txprecursor_i = 0; assign gt1_txpostcursor_i = 0; assign gt1_txchardispmode_i = 0; assign gt1_txchardispval_i = 0; assign gt1_txpolarity_i = tied_to_ground_i; assign gt1_txpd_i = 0; assign gt1_txprbsforceerr_i = tied_to_ground_i; assign gt1_txprbssel_i = 0;
//------------------------------------------------------
// assign resets for frame_gen modules
assign gt0_tx_system_reset_c = !gt0_txfsmresetdone_r2;
assign gt1_tx_system_reset_c = !gt1_txfsmresetdone_r2;
// assign resets for frame_check modules
assign gt0_rx_system_reset_c = !gt0_rxresetdone_r3;
assign gt1_rx_system_reset_c = !gt1_rxresetdone_r3;
assign gt0_drpaddr_i = 9'd0; assign gt0_drpdi_i = 16'd0; assign gt0_drpen_i = 1'b0; assign gt0_drpwe_i = 1'b0; assign gt1_drpaddr_i = 9'd0; assign gt1_drpdi_i = 16'd0; assign gt1_drpen_i = 1'b0; assign gt1_drpwe_i = 1'b0; assign soft_reset_i = tied_to_ground_i;
endmodule
3. 在线调试
调试策略建议优先采用板级回环（Loopback）模式，无需额外设备即可验证链路完整性：
- 近端PCS回环：在GTX IP核配置中启用
Near-End PCS Loopback（UG476第88页）；
- 近端PMA回环：若PCS回环通过，再启用
Near-End PMA Loopback进一步验证模拟前端。
TX链路波形分析
当sys_on信号拉高，tx0_data立即输出预设帧序列：0x55AAFFBC（SOF）→ 0x00000000~0x000000FF（有效数据）→ 0x55AAEEBC（EOF）→ 0x55AA00BC（IDLE），完全符合编码逻辑。

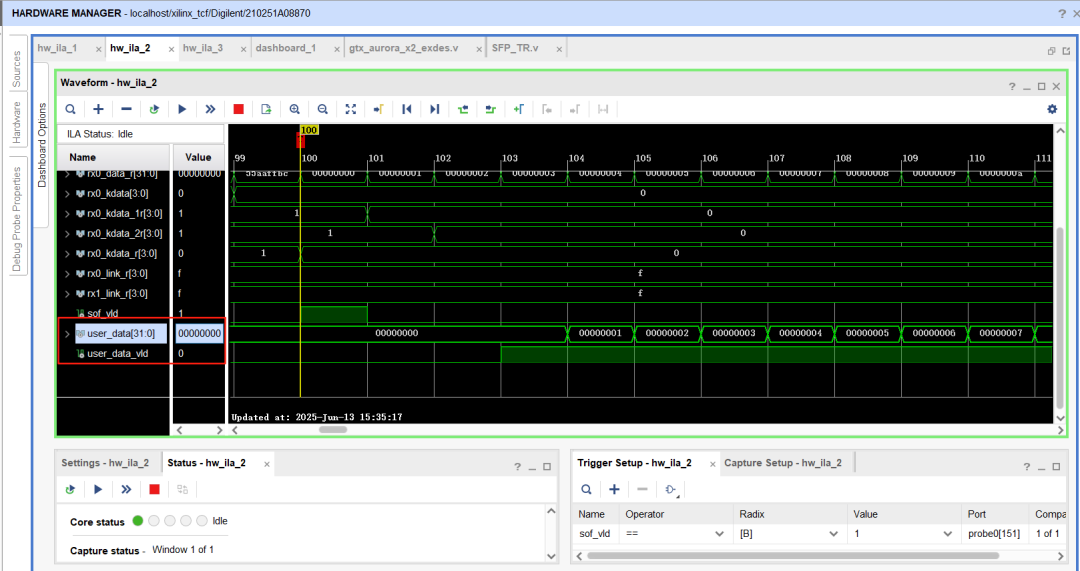

RX链路波形分析
rxo_kdata[3:0]在vld有效期间稳定输出0x1，rxo_data[31:0]捕获到与TX端完全一致的递增序列（0x00000000→0x000000FF），证明8B/10B编解码与链路同步完全正确。
VIO调试接口说明
sys_on_sim：顶层系统启动信号（实际部署时替换为sys_on）；soft_vld：动态控制soft_rst_tx/rx及gt_loopback，实现运行时软复位与回环切换。
发表于 昨天 15:45
|
查看: 5|
回复: 0
