前面在 Linux 上用 mprotect 修改字符串常量 一文中我们介绍了通过 mprotect 系统调用来修改调用进程指定内存区域的访问保护属性，比如把只读数据段改成可写的，这样就可以直接修改其中的字符串常量。当时我们做实验是直接在代码中调用 mprotect，但这有三个硬性前提：你有源码、你能重新编译、你能重启进程。现实中大量目标并不满足这些条件。这篇文章就来介绍一种不用修改源代码的方法，通过注入的方式让目标进程执行 mprotect。对底层系统编程技术感兴趣的读者，欢迎到云栈社区交流探讨。
在进入正题之前我们先来介绍 Linux 上的另一个系统调用：ptrace 系统调用。这是一个强大且历史悠久的系统调用，它提供了一个进程观察和控制另一个进程执行的能力。简单来说，它就像一个“调试代理”，允许你“窥探”和“操纵”其他进程的内部状态，是众多调试和系统分析工具的基石，gdb 就是基于 ptrace 实现的。本文我们就打算利用 ptrace 来向目标进程注入执行 mprotect 系统调用：从进程外部，用 ptrace 让目标进程“自己”执行一次 mprotect。
我们的需求是让目标进程在自己的地址空间里执行一次 mprotect(addr, len, PROT_WRITE)。为了完成这个目标，第一直觉通常是往目标进程地址空间里塞一段 shellcode，比如构造一小段机器码，它的功能就是调用 mprotect，执行完之后再让目标进程的执行流跳回原处。
mov rax, __NR_mprotect ; rax 放系统调用号
mov rdi, addr ; rdi 放系统调用的第一个参数
mov rsi, len ; rsi 放系统调用的第二个参数
mov rdx, prot ; rdx 放系统调用的第三个参数
syscall
; 跳回原 RIP
然后把这段 shellcode 写进目标进程的某块内存，再把它的 RIP 指向这段代码开头，让目标进程跳过来执行，等它执行完再恢复现场，跳回原来的执行流。听起来很合理，但是具体要做就会遇到困难。首先要把 shellcode 写进目标内存，你得先有一块可写的内存，否则你就没法利用之前我们讲过的方式（process_vm_writev）把 shellcode 写进目标进程的内存中。这样你就陷入了鸡生蛋、蛋生鸡的循环——为了获得写权限，你先得能写。其次，就算你找到了一块可写区域，shellcode 还需要可执行权限，现代系统普遍遵循 W^X（Write XOR Execute）原则：一块内存要么可写、要么可执行，不能两者兼有。你要么先找 RW 区写入、再 mprotect 成 R+X（又回到了“需要先能改权限”的原命题），要么赌目标里恰好有一块 RWX 区域——这在今天的可执行文件里几乎绝迹。你可以查看进程的 /proc/<pid>/maps 文件，看看有没有 W 和 X 属性共存的内存段，应该是不会有的。
于是我们意识到：shellcode 方案的本质矛盾是：为了改权限，我们反而需要先有写和执行的能力，而这恰恰是我们要达成的目标。我们不妨换个思路，系统调用的执行，靠的不是某段特定的“代码”，而是 CPU 执行到一条 syscall 指令时，按寄存器里的参数陷入内核，执行特定的动作。换句话说：只要目标进程的地址空间里存在一条 syscall 指令，我们就不需要自己写它，我们只需：
- 找到那条现成的
syscall 指令的地址；
- 把寄存器摆成
mprotect 所需的样子（rax/rdi/rsi/rdx）；
- 把 RIP 指向它；
- 放行，让目标进程替我们跑这条指令。
要在目标进程的可执行内存段中找到一条 syscall 指令那可太简单了，哪个可执行程序不得调用系统调用，所以这一步是不成问题的。把寄存器摆成 mprotect 需要的样子以及修改 RIP 更改目标进程的执行流程，这都是 ptrace 擅长的事情，所以也不是问题。但是现在有个新的问题，就是 syscall 调完之后怎么办？我们是需要把目标进程的执行流恢复回去的。我们找到的那条 syscall 指令后面跟着的是什么？在目标进程的代码段里，它后面可能是任意指令（比较指令、跳转指令、返回指令……）。在目标进程执行完 syscall 指令后，CPU 会继续往下执行不属于我们想让它执行的逻辑，这会导致目标进程直接跑飞崩溃。我们希望的是：当目标进程把 syscall 执行完，立刻把控制权交还给我们（注入方），好让我们检查 mprotect 的调用结果、恢复现场，恢复目标进程的执行流。
怎么才能让目标进程在执行完 syscall 之后把控制权交回给我们呢？其实对于 ptrace 来说很简单，我们可以使用 PTRACE_SYSCALL 命令。当我们使用 ptrace 的 PTRACE_SYSCALL 命令让被调试进程继续运行时，被调试进程会在以下两个时机被内核挂起，并把控制权交回给 ptrace：
- 进入系统调用前（entry）：执行
syscall / int 0x80 等指令时。
- 系统调用返回后（exit）：系统调用执行完毕，即将返回用户态时。
所以我们只需要使用 PTRACE_SYSCALL 命令就可以让目标进程在执行 mprotect 系统调用之前和之后把控制权交还给我们，我们也就有机会对目标进程进行现场恢复，和执行流恢复。
好了，有了具体思路之后，我们就可以动手写代码了。这次我们就只写一个函数：add_write_permission，这个函数让之前写的 scan_modify 程序遇到只读数据段的时候去调。下面是 add_write_permission 函数的代码，我在重点部分都加了注释。

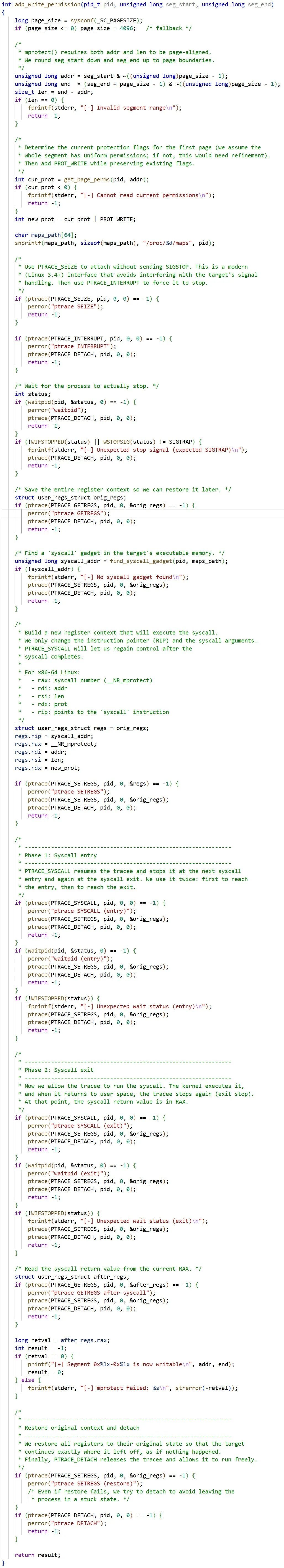

总的说来 add_write_permission 的流程就是它首先使用 PTRACE_SEIZE 和 PTRACE_INTERRUPT 附着到目标进程并使其暂停，同时保存完整的原始寄存器状态（目标进程暂停时的状态）；接着在目标进程的可执行内存段中搜索一条 syscall (0F 05) 指令作为跳板，然后将指令指针（RIP）和参数寄存器（RAX、RDI、RSI、RDX）设置为执行 mprotect 所需的系统调用号、地址、长度和新权限，并利用 PTRACE_SYSCALL 分别在系统调用的入口和出口暂停目标进程，将目标进程的控制权交回给我们，重点是在出口阶段从 RAX 中读取 mprotect 系统调用的返回值以判断修改权限的操作是否成功；最后恢复目标进程原始寄存器状态并执行 PTRACE_DETACH 脱离目标进程，使目标进程完全透明地（从被 PTRACE_INTERRUPT 暂停时的位置）继续运行，仿佛从未被干扰过。至于 add_write_permission 函数调用的查找 syscall 指令的辅助函数 find_syscall_gadget，其实就是在目标进程的可执行代码段中搜索 syscall 指令的地址，这里就不细说了。

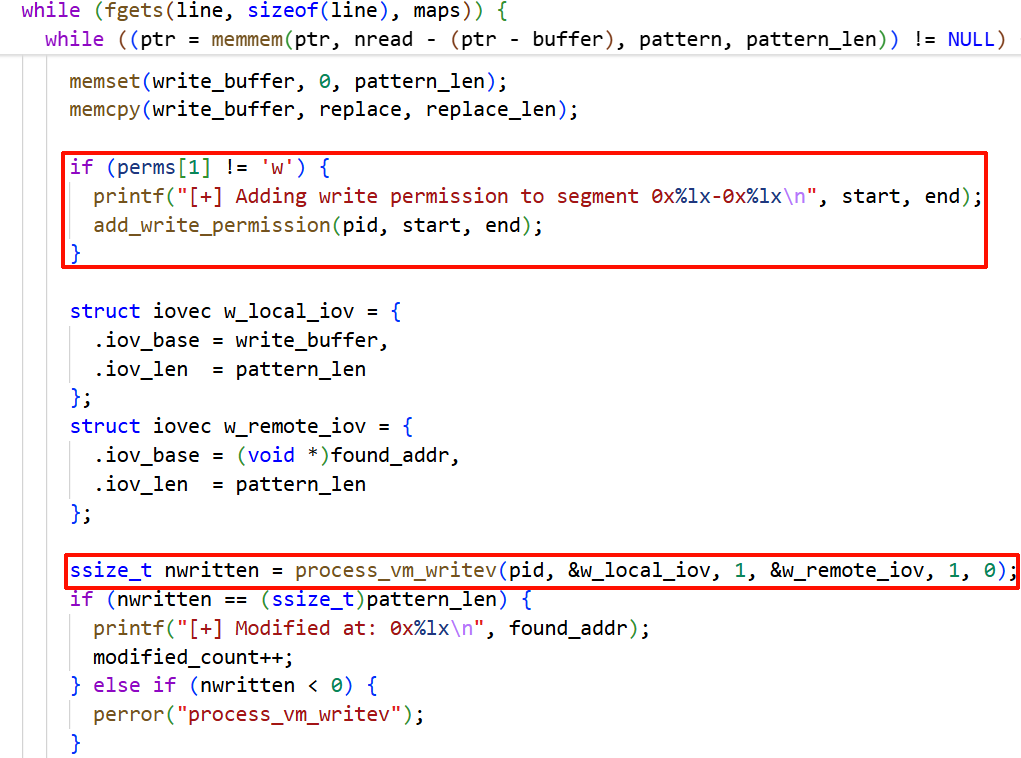

下面是在原始的 scan_modify 程序中针对只读内存段调用 add_write_permission 函数赋予其可写权限的代码。完整的 scan_modify 代码请参考前面的文章。

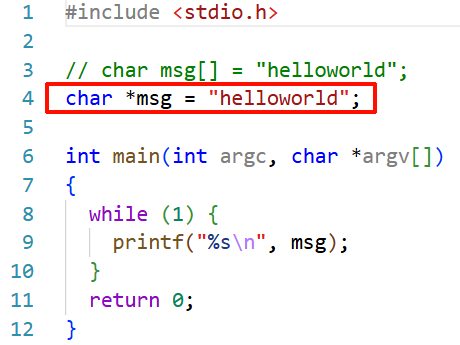

在做实验之前，我们还需要修改 victim 程序，把目标字符串修改成字符串常量（原来是字符串数组）。如果这样我们的 scan_modify 程序仍然能够把这个字符串给修改掉，那就说明我们注入执行 mprotect 系统调用是成功的。

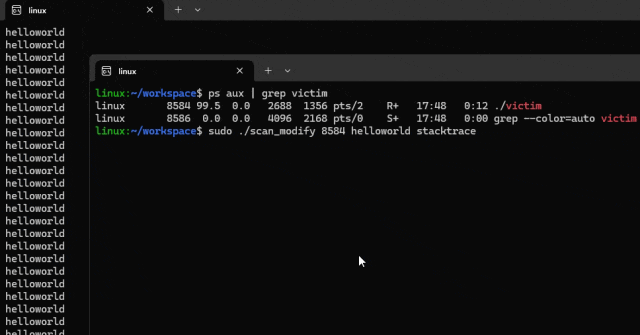

我们先用之前写的 scan_modify 程序来对修改后的 victim 程序中的字符串常量进行修改，看看能否成功。从下面的动图来看，修改是没有成功的，系统调用 process_vm_writev 报错：Bad address，victim 程序依旧打印着原始的字符串：helloworld。

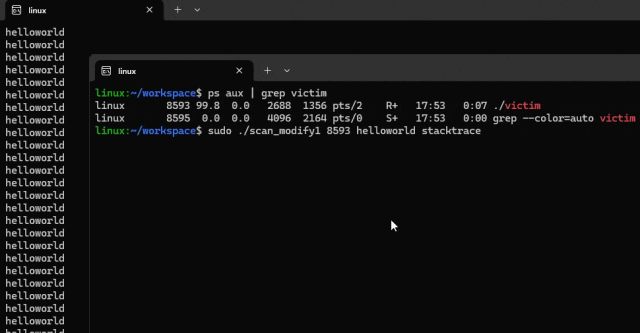

下面我用这次修改过的带有注入 mprotect 的 scan_modify 程序来对 victim 进程中的字符串常量进行修改。下面的动图是执行效果，可以看到这次是成功的，victim 进程中的 helloworld 字符串被替换成了 stacktrace。
最后附上修改后的 scan_modify 的完整代码。Have Fun！😁
#define _GNU_SOURCE
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <fcntl.h>
#include <errno.h>
#include <sys/uio.h>
#include <sys/ptrace.h>
#include <sys/wait.h>
#include <sys/user.h>
#include <sys/syscall.h>
#include <sys/mman.h>
#include <signal.h>
#include <stdint.h>
static long find_byte_sequence(pid_t pid,
unsigned long start,
unsigned long end,
const unsigned char *seq,
size_t seq_len)
{
char mem_path[64];
snprintf(mem_path, sizeof(mem_path), "/proc/%d/mem", pid);
int fd = open(mem_path, O_RDONLY);
if (fd == -1) {
perror("open /proc/pid/mem");
return -1;
}
size_t total = end - start;
unsigned char *buf = malloc(total);
if (!buf) {
perror("malloc");
close(fd);
return -1;
}
/* Seek to the start address and read the entire range into a buffer. */
if (lseek(fd, start, SEEK_SET) == -1) {
perror("lseek");
free(buf);
close(fd);
return -1;
}
ssize_t n = read(fd, buf, total);
if (n <= 0) {
perror("read mem");
free(buf);
close(fd);
return -1;
}
close(fd);
/* Perform a simple linear scan for the byte sequence. */
for (size_t i = 0; i + seq_len <= (size_t)n; i++) {
if (memcmp(buf + i, seq, seq_len) == 0) {
free(buf);
return (long)i; /* offset from start */
}
}
free(buf);
return -1; /* not found */
}
/*
* ============================================================================
* Locate a 'syscall' instruction (0F 05) inside any executable mapping.
* ============================================================================
* Reads /proc/pid/maps to find all executable (r-xp) memory regions, then
* searches each for the byte sequence 0F 05 (the x86-64 syscall instruction).
*
* Returns:
* - The virtual address of the first found 'syscall' instruction.
* - 0 if none is found (0 is never a valid user-space address).
*/
static unsigned long find_syscall_gadget(pid_t pid, const char *maps_path)
{
FILE *fp = fopen(maps_path, "r");
if (!fp) {
perror("fopen maps");
return 0;
}
unsigned long syscall_addr = 0;
char line[512];
const unsigned char seq[] = {0x0f, 0x05}; /* syscall opcode */
while (fgets(line, sizeof(line), fp)) {
unsigned long start, end;
char perms[5];
char path[256] = {0};
/* Parse the line: start-end perms ... pathname */
if (sscanf(line, "%lx-%lx %4s %*x %*x:%*x %*d %255[^\n]",
&start, &end, perms, path) < 3) {
continue;
}
/* We only care about executable mappings (the 'x' flag is at perms[2]). */
if (perms[2] != 'x')
continue;
long offset = find_byte_sequence(pid, start, end, seq, sizeof(seq));
if (offset >= 0) {
syscall_addr = start + offset;
printf("[+] Found syscall at 0x%lx in %s\n",
syscall_addr, path[0] ? path : "???");
break;
}
}
fclose(fp);
return syscall_addr;
}
static int get_page_perms(pid_t pid, unsigned long addr)
{
char maps_path[64];
snprintf(maps_path, sizeof(maps_path), "/proc/%d/maps", pid);
FILE *fp = fopen(maps_path, "r");
if (!fp) {
perror("fopen maps");
return -1;
}
char line[512];
int result = -1;
while (fgets(line, sizeof(line), fp)) {
unsigned long s, e;
char perms[5];
if (sscanf(line, "%lx-%lx %4s", &s, &e, perms) < 3)
continue;
if (addr >= s && addr < e) {
int prot = 0;
if (perms[0] == 'r') prot |= PROT_READ;
if (perms[1] == 'w') prot |= PROT_WRITE;
if (perms[2] == 'x') prot |= PROT_EXEC;
result = prot;
break;
}
}
fclose(fp);
return result;
}
int add_write_permission(pid_t pid,
unsigned long seg_start,
unsigned long seg_end)
{
long page_size = sysconf(_SC_PAGESIZE);
if (page_size <= 0) page_size = 4096; /* fallback */
/*
* mprotect() requires both addr and len to be page-aligned.
* We round seg_start down and seg_end up to page boundaries.
*/
unsigned long addr = seg_start & ~((unsigned long)page_size - 1);
unsigned long end = (seg_end + page_size - 1) & ~((unsigned long)page_size - 1);
size_t len = end - addr;
if (len == 0) {
fprintf(stderr, "[-] Invalid segment range\n");
return -1;
}
/*
* Determine the current protection flags for the first page (we assume the
* whole segment has uniform permissions; if not, this would need refinement).
* Then add PROT_WRITE while preserving existing flags.
*/
int cur_prot = get_page_perms(pid, addr);
if (cur_prot < 0) {
fprintf(stderr, "[-] Cannot read current permissions\n");
return -1;
}
int new_prot = cur_prot | PROT_WRITE;
char maps_path[64];
snprintf(maps_path, sizeof(maps_path), "/proc/%d/maps", pid);
/*
* Use PTRACE_SEIZE to attach without sending SIGSTOP. This is a modern
* (Linux 3.4+) interface that avoids interfering with the target's signal
* handling. Then use PTRACE_INTERRUPT to force it to stop.
*/
if (ptrace(PTRACE_SEIZE, pid, 0, 0) == -1) {
perror("ptrace SEIZE");
return -1;
}
if (ptrace(PTRACE_INTERRUPT, pid, 0, 0) == -1) {
perror("ptrace INTERRUPT");
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
/* Wait for the process to actually stop. */
int status;
if (waitpid(pid, &status, 0) == -1) {
perror("waitpid");
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
if (!WIFSTOPPED(status) || WSTOPSIG(status) != SIGTRAP) {
fprintf(stderr, "[-] Unexpected stop signal (expected SIGTRAP)\n");
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
/* Save the entire register context so we can restore it later. */
struct user_regs_struct orig_regs;
if (ptrace(PTRACE_GETREGS, pid, 0, &orig_regs) == -1) {
perror("ptrace GETREGS");
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
/* Find a 'syscall' gadget in the target's executable memory. */
unsigned long syscall_addr = find_syscall_gadget(pid, maps_path);
if (!syscall_addr) {
fprintf(stderr, "[-] No syscall gadget found\n");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
/*
* Build a new register context that will execute the syscall.
* We only change the instruction pointer (RIP) and the syscall arguments.
* PTRACE_SYSCALL will let us regain control after the
* syscall completes.
*
* For x86-64 Linux:
* - rax: syscall number (__NR_mprotect)
* - rdi: addr
* - rsi: len
* - rdx: prot
* - rip: points to the 'syscall' instruction
*/
struct user_regs_struct regs = orig_regs;
regs.rip = syscall_addr;
regs.rax = __NR_mprotect;
regs.rdi = addr;
regs.rsi = len;
regs.rdx = new_prot;
if (ptrace(PTRACE_SETREGS, pid, 0, ®s) == -1) {
perror("ptrace SETREGS");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
/*
* ---------------------------------------------------------------
* Phase 1: Syscall entry
* ---------------------------------------------------------------
* PTRACE_SYSCALL resumes the tracee and stops it at the next syscall
* entry and again at the syscall exit. We use it twice: first to reach
* the entry, then to reach the exit.
*/
if (ptrace(PTRACE_SYSCALL, pid, 0, 0) == -1) {
perror("ptrace SYSCALL (entry)");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
if (waitpid(pid, &status, 0) == -1) {
perror("waitpid (entry)");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
if (!WIFSTOPPED(status)) {
fprintf(stderr, "[-] Unexpected wait status (entry)\n");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
/*
* ---------------------------------------------------------------
* Phase 2: Syscall exit
* ---------------------------------------------------------------
* Now we allow the tracee to run the syscall. The kernel executes it,
* and when it returns to user space, the tracee stops again (exit stop).
* At that point, the syscall return value is in RAX.
*/
if (ptrace(PTRACE_SYSCALL, pid, 0, 0) == -1) {
perror("ptrace SYSCALL (exit)");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
if (waitpid(pid, &status, 0) == -1) {
perror("waitpid (exit)");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
if (!WIFSTOPPED(status)) {
fprintf(stderr, "[-] Unexpected wait status (exit)\n");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
/* Read the syscall return value from the current RAX. */
struct user_regs_struct after_regs;
if (ptrace(PTRACE_GETREGS, pid, 0, &after_regs) == -1) {
perror("ptrace GETREGS after syscall");
ptrace(PTRACE_SETREGS, pid, 0, &orig_regs);
ptrace(PTRACE_DETACH, pid, 0, 0);
return -1;
}
long retval = after_regs.rax;
int result = -1;
if (retval == 0) {
printf("[+] Segment 0x%lx-0x%lx is now writable\n", addr, end);
result = 0;
} else {
fprintf(stderr, "[-] mprotect failed: %s\n", strerror(-retval));
}
/*
* ---------------------------------------------------------------
* Restore original context and detach
* ---------------------------------------------------------------
* We restore all registers to their original state so that the target
* continues exactly where it left off, as if nothing happened.
* Finally, PTRACE_DETACH releases the tracee and allows it to run freely.
*/
if (ptrace(PTRACE_SETREGS, pid, 0, &orig_regs) == -1) {
perror("ptrace SETREGS (restore)");
/* Even if restore fails, we try to detach to avoid leaving the
* process in a stuck state. */
}
if (ptrace(PTRACE_DETACH, pid, 0, 0) == -1) {
perror("ptrace DETACH");
return -1;
}
return result;
}
int main(int argc, char *argv[])
{
if (argc != 4) {
fprintf(stderr, "Usage: %s <pid> <search_string> <replace_string>\n", argv[0]);
return EXIT_FAILURE;
}
pid_t pid = atoi(argv[1]);
const char *pattern = argv[2];
const char *replace = argv[3];
size_t pattern_len = strlen(pattern);
size_t replace_len = strlen(replace);
if (replace_len > pattern_len) {
fprintf(stderr, "Error: Replacement string longer than original\n");
return EXIT_FAILURE;
}
char maps_path[64];
snprintf(maps_path, sizeof(maps_path), "/proc/%d/maps", pid);
FILE *maps = fopen(maps_path, "r");
if (!maps) {
perror("fopen maps");
return EXIT_FAILURE;
}
size_t modified_count = 0;
char line[1024];
while (fgets(line, sizeof(line), maps)) {
uint64_t start, end;
char perms[5];
if (sscanf(line, "%lx-%lx %4s", &start, &end, perms) != 3)
continue;
/* Skip non-readable regions */
if (perms[0] != 'r')
continue;
size_t region_size = end - start;
if (region_size == 0)
continue;
unsigned char *buffer = malloc(region_size);
if (!buffer)
continue;
struct iovec local_iov = {
.iov_base = buffer,
.iov_len = region_size
};
struct iovec remote_iov = {
.iov_base = (void *)start,
.iov_len = region_size
};
ssize_t nread = process_vm_readv(pid, &local_iov, 1, &remote_iov, 1, 0);
if (nread <= 0) {
free(buffer);
continue;
}
unsigned char *ptr = buffer;
while ((ptr = memmem(ptr, nread - (ptr - buffer), pattern, pattern_len)) != NULL) {
uintptr_t offset = ptr - buffer;
uintptr_t found_addr = start + offset;
/* Prepare write buffer */
char *write_buffer = malloc(pattern_len);
if (!write_buffer) {
perror("malloc");
free(buffer);
fclose(maps);
return EXIT_FAILURE;
}
memset(write_buffer, 0, pattern_len);
memcpy(write_buffer, replace, replace_len);
if (perms[1] != 'w') {
printf("[+] Adding write permission to segment 0x%lx-0x%lx\n", start, end);
add_write_permission(pid, start, end);
}
struct iovec w_local_iov = {
.iov_base = write_buffer,
.iov_len = pattern_len
};
struct iovec w_remote_iov = {
.iov_base = (void *)found_addr,
.iov_len = pattern_len
};
ssize_t nwritten = process_vm_writev(pid, &w_local_iov, 1, &w_remote_iov, 1, 0);
if (nwritten == (ssize_t)pattern_len) {
printf("[+] Modified at: 0x%lx\n", found_addr);
modified_count++;
} else if (nwritten < 0) {
perror("process_vm_writev");
}
free(write_buffer);
ptr += pattern_len;
}
free(buffer);
}
fclose(maps);
printf("Finished. Total modified: %zu\n", modified_count);
return EXIT_SUCCESS;
}
发表于 5 小时前
|
查看: 3|
回复: 0
